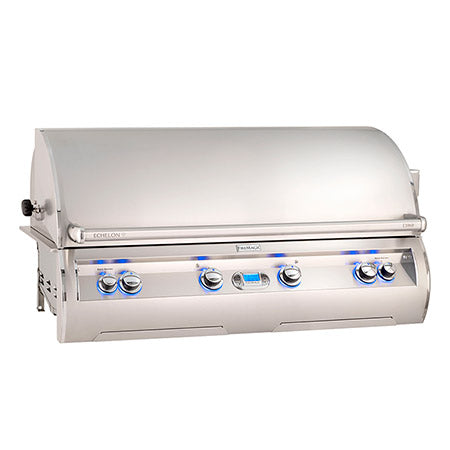

Fire Magic Echelon Diamond E1060i 48-Inch Built-In Gas Grill — Analog or Digital

• 112,000-BTU main system: Four cast stainless steel E-burners create a wide, controllable cooking platform.
• Dual 11,000-BTU rear burners: Support the included rotisserie configuration across the extra-wide grill.
• Analog or digital control: Choose a classic thermometer or Fire Magic’s touchscreen platform with connected monitoring features.
• Optional left infrared sear burner: Factory L variants add concentrated searing heat while retaining conventional zones.

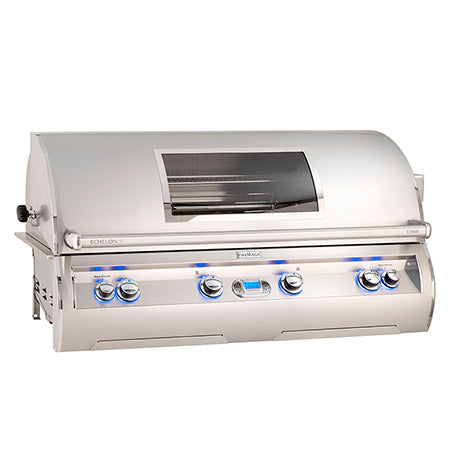

• Optional Magic View window: -W models provide a view under the hood without lifting it.
• Premium visibility: Hot-surface ignition, backlit controls, and interior lighting support evening cooking.

• Primary cooking surface: 48 in. W × 22 in. D (1,056 sq. in.)
• Warming rack: 48 in. W × 8 in. D
• Main burner output: 112,000 BTU
• Rear-burner output: 22,000 BTU total (two 11,000-BTU burners)
• Built-in cutout: 50 in. W × 23½ in. D × 11½ in. H
• Fuel choices: Natural gas or propane
• Electrical requirement: 120 VAC
• Compatible insulating liner for combustible enclosures: 3185-52

SKU codes define the appliance: 9E1/9L1 are digital-control models; 9EA/9LA are analog. L adds the left infrared sear burner; E keeps all conventional burners. -W adds the Magic View window, and final N/P specifies natural gas or propane.

This is a large, high-input appliance. Confirm the exact SKU, gas-line capacity, electrical service, ventilation, rotisserie clearances, enclosure construction, and delivery path before ordering. Use liner 3185-52 where required and build only from the current SKU drawing. Fire Magic’s published warming-area arithmetic is internally inconsistent, so no calculated total-cooking-area claim is used here.
