Build a hands-on charcoal cooking station with the Luxor Coalmaster drop-in series. Heat-retaining inserts and a notched skewer frame offer an open, flexible approach to outdoor cooking, with hooded versions available in the product options.
Key Features
- 304 stainless steel construction.

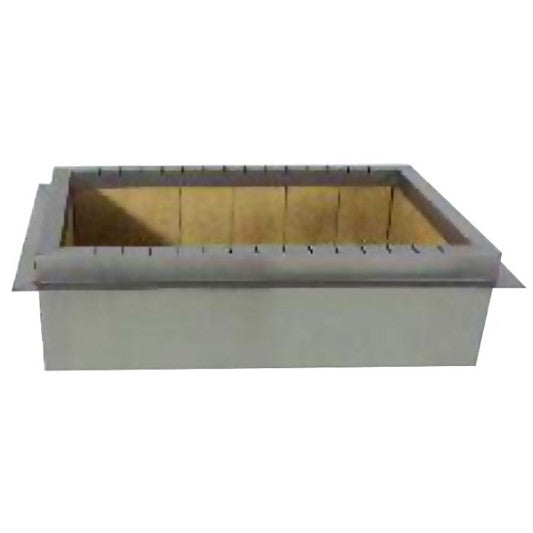

- Heat-retaining high-temperature inserts.

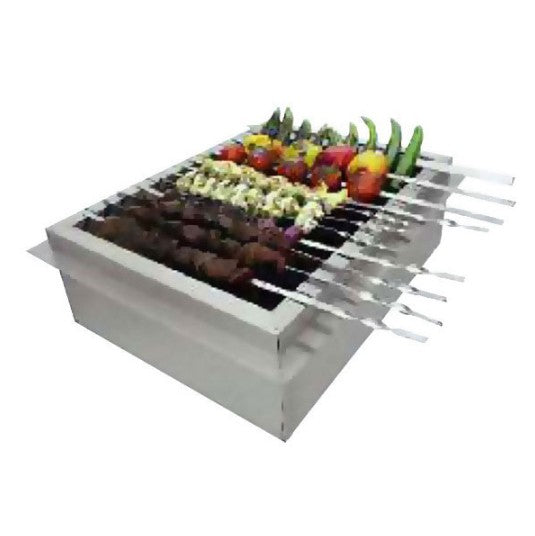

- Notched frame supports skewers in multiple positions.
- Bottom ash-cleanout opening.

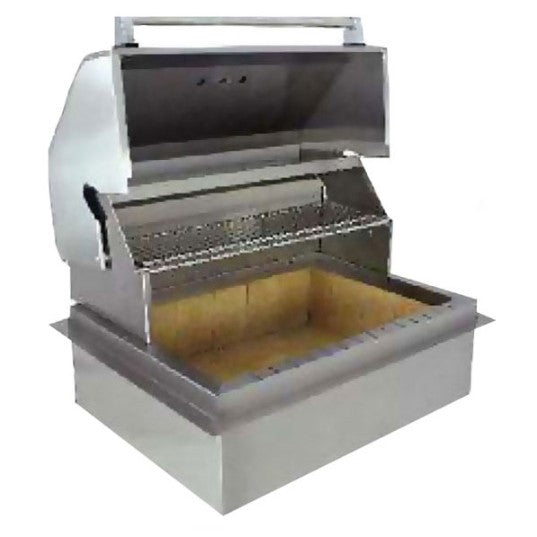

- Hooded options add a thermometer and stainless steel warming rack.
Specifications
- 30-inch open top: AHT-30CM-DI-OT; 30-inch with hood: AHT-30CM-DI-HD.
- 42-inch open top: AHT-42CM-DI-OT; 42-inch with hood: AHT-42CM-DI-HD.
- 30-inch models: 535 square inches of cooking area.
- 42-inch models: 770 square inches of cooking area.
- Rotisserie kit and stainless steel rod cooking grates are optional on the hooded models.
Dimensions
- 30-inch model cutout: 31 inches wide × 23.5 inches deep × 10 inches high.
- 42-inch model cutout: 43 inches wide × 23.5 inches deep × 10 inches high.
- These are installation-opening measurements, not overall dimensions. Confirm the actual component and current manufacturer drawing before cutting the island.
Compatibility & Installation
- For outdoor use only. Verify the required enclosure support, clearances and ventilation with Luxor.
- Keep the ash-cleanout accessible and let fuel extinguish and the unit cool completely before cleaning.
- Choose open top or hooded configuration deliberately; accessories pictured with the grill may be optional.
Manufacturer Resources
Manufacturer contact: use Luxor customer support through the resource link above. Have the model, configuration and serial number, when applicable, ready to confirm fit or installation.
