SKU: AXE-17L-01

Alfresco 17-Inch Single Access Door

$379.00

Shipping calculated at checkout

Hinge: Left Door
Color: Stainless Steel
Alfresco 17-Inch Single Access Door
Alfresco 17-Inch Single Access Door
Alfresco 17-Inch Single Access Door
Alfresco 17-Inch Single Access Door
Alfresco 17-Inch Single Access Door
Alfresco 17-Inch Single Access Door
Alfresco 17-Inch Single Access Door
Alfresco 17-Inch Single Access Door
Alfresco 17-Inch Single Access Door
Alfresco 17-Inch Single Access Door
Alfresco 17-Inch Single Access Door
Alfresco 17-Inch Single Access Door
Alfresco 17-Inch Single Access Door


Available Now!
Description Features Specifications Dimensions Compatibility / Installation Manuals

The Alfresco 17-Inch Single Access Door provides clean, front-mounted access to the storage cavity inside an outdoor-kitchen island. Choose the left-hinge or right-hinge model to suit your cabinet layout. Its dual-wall door, integrated handle, and magnetic catch coordinate neatly with other Alfresco outdoor-kitchen components.

  • Available in left-hinge and right-hinge configurations
  • Sturdy dual-wall door with multiple mounting options
  • Magnetic catch provides a secure close
  • Integrated handle with handle-mounting hardware included

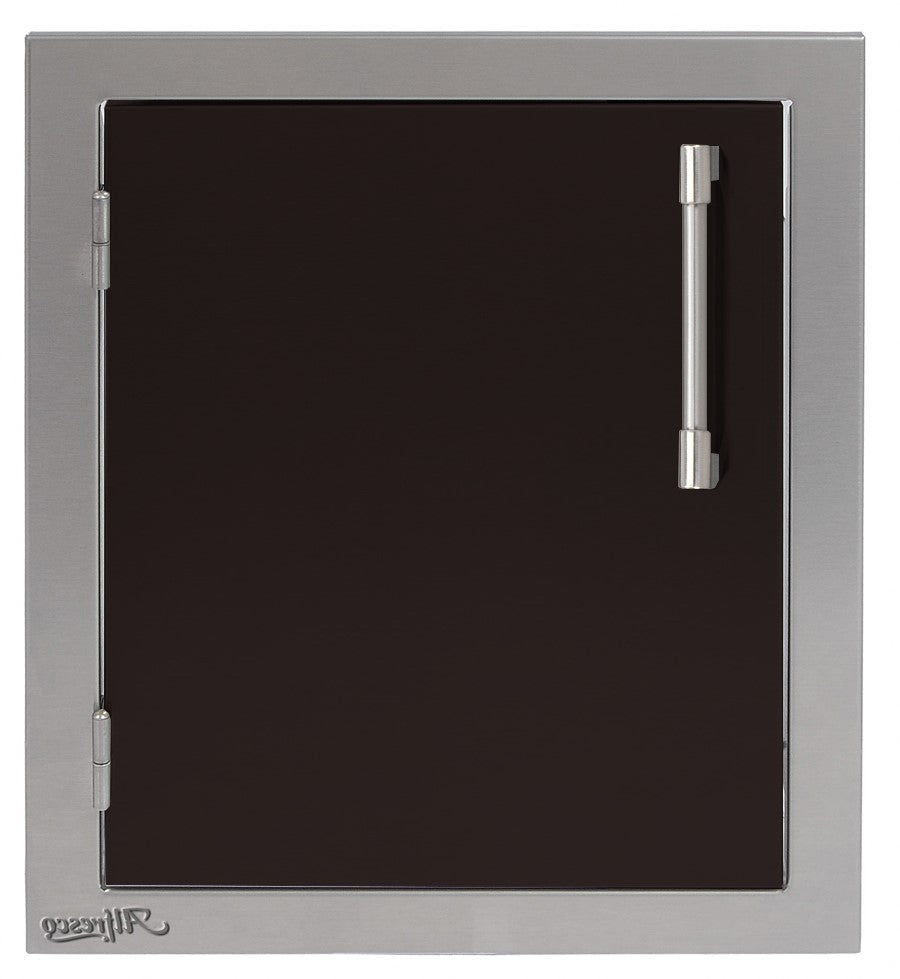

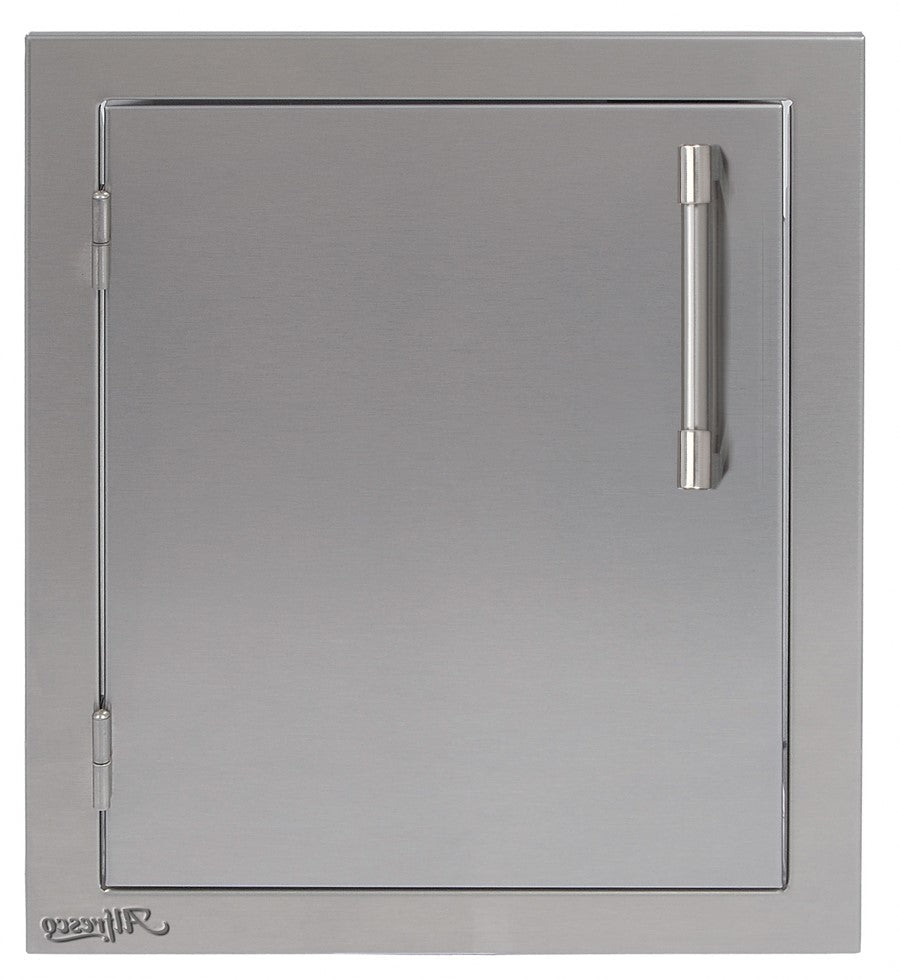

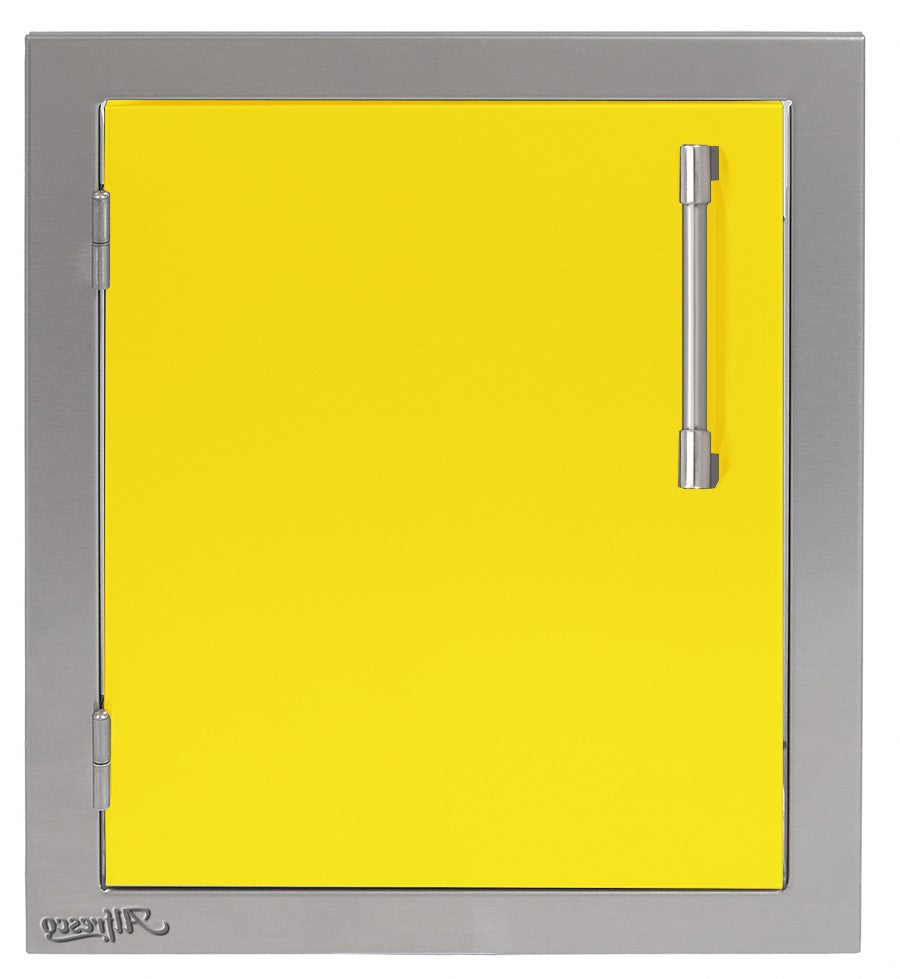

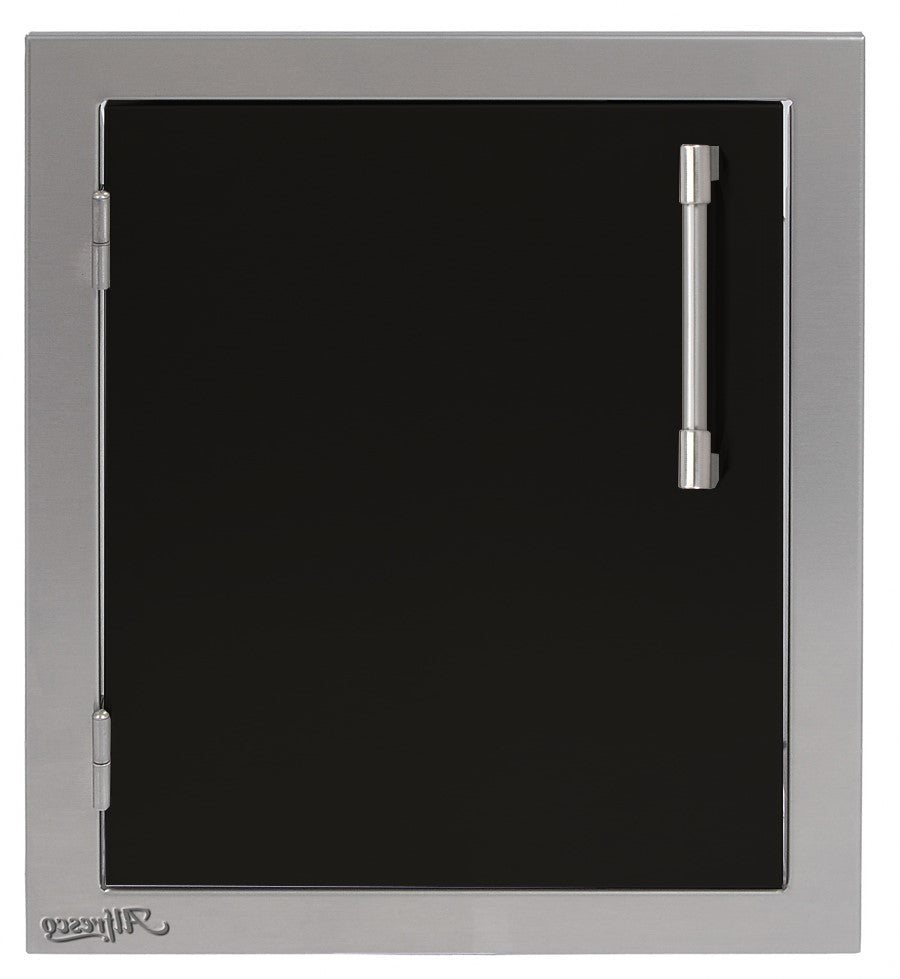

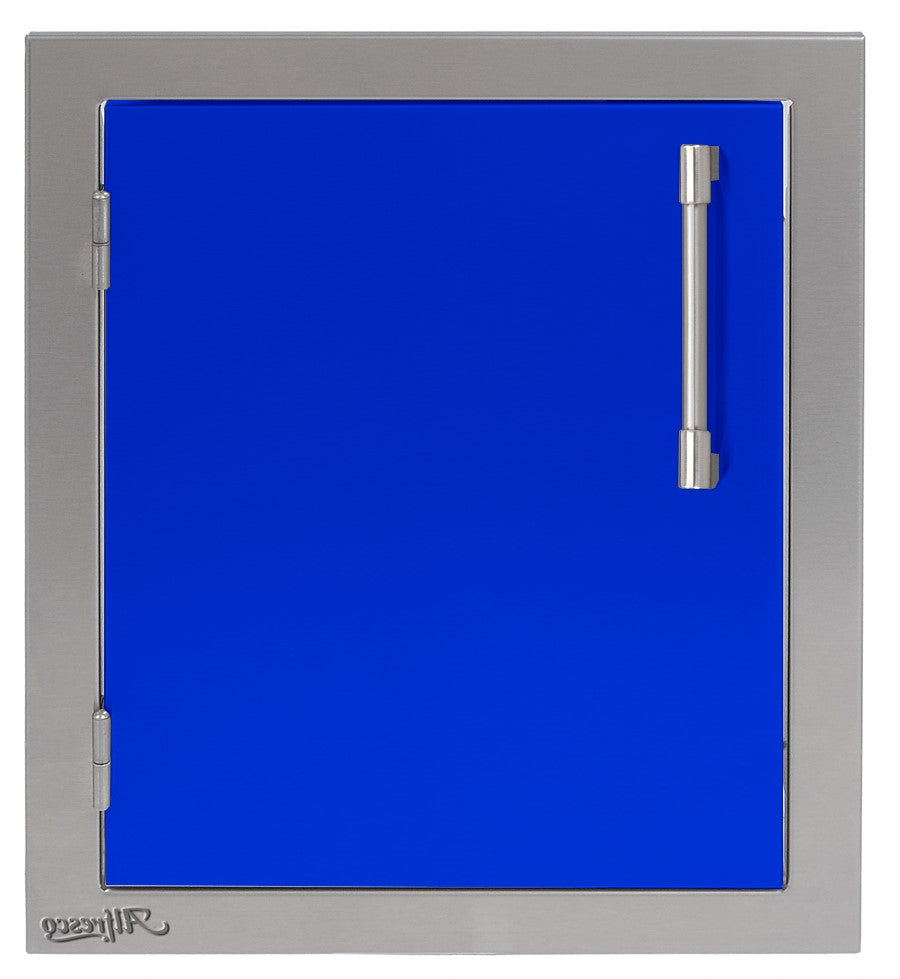

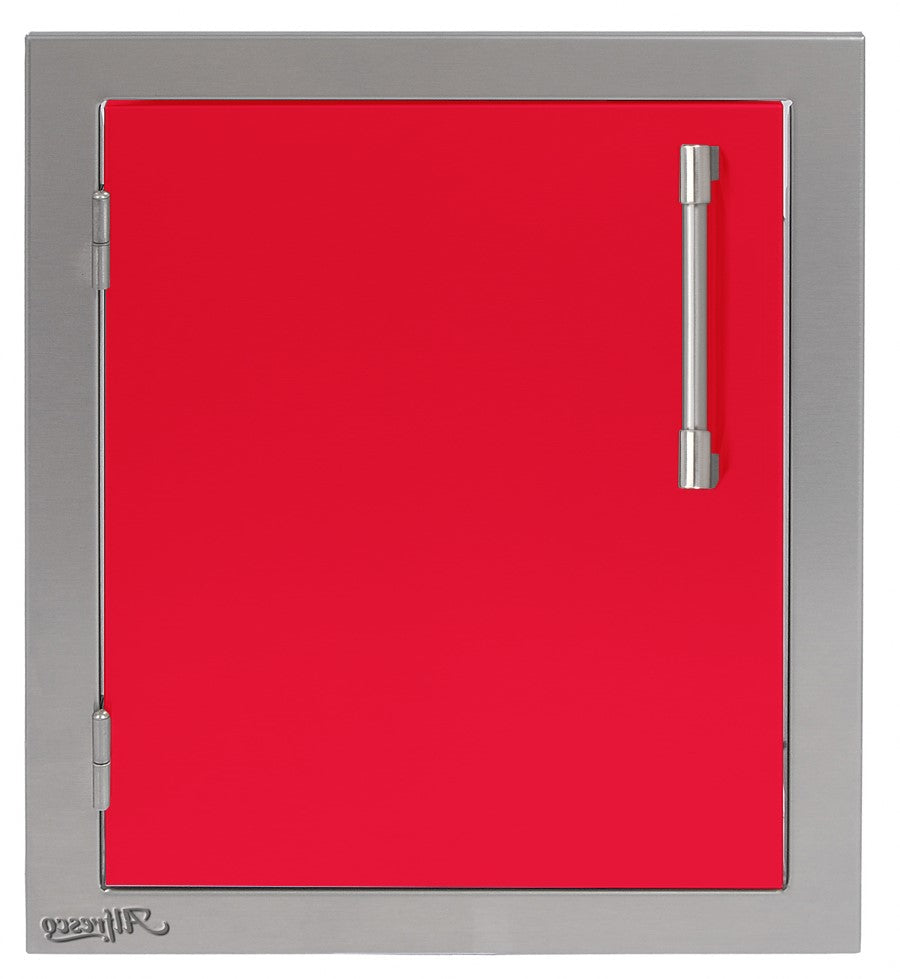

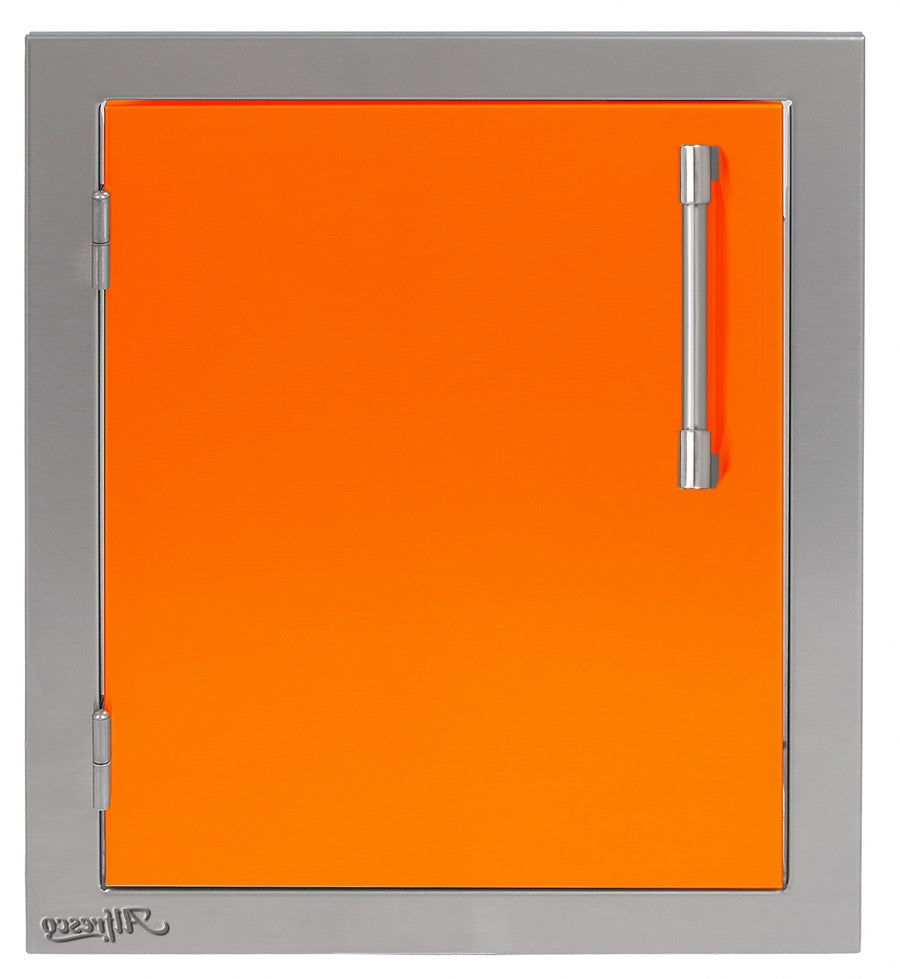

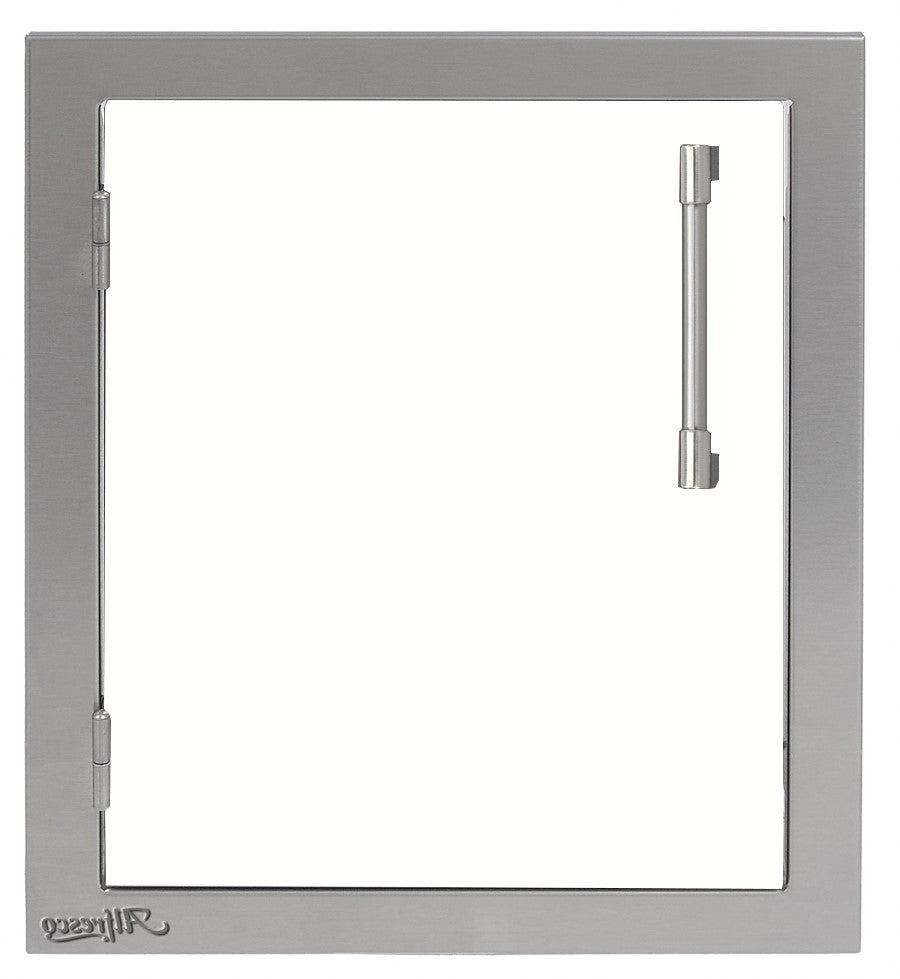

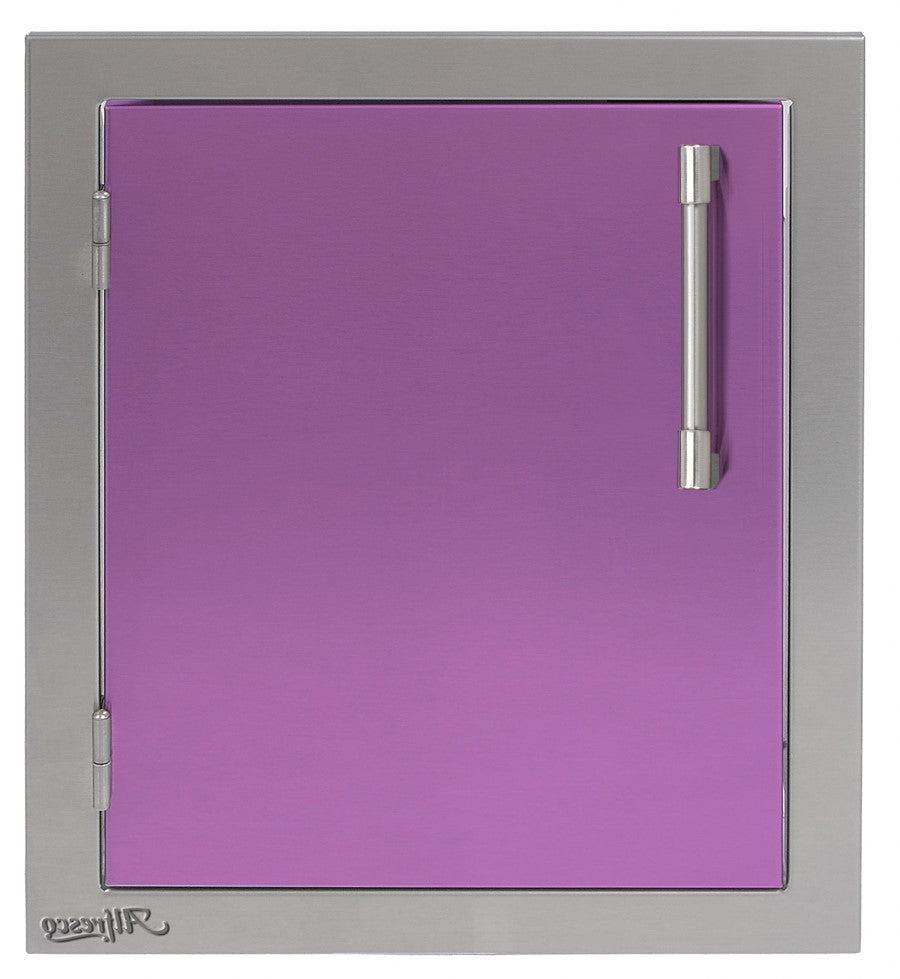

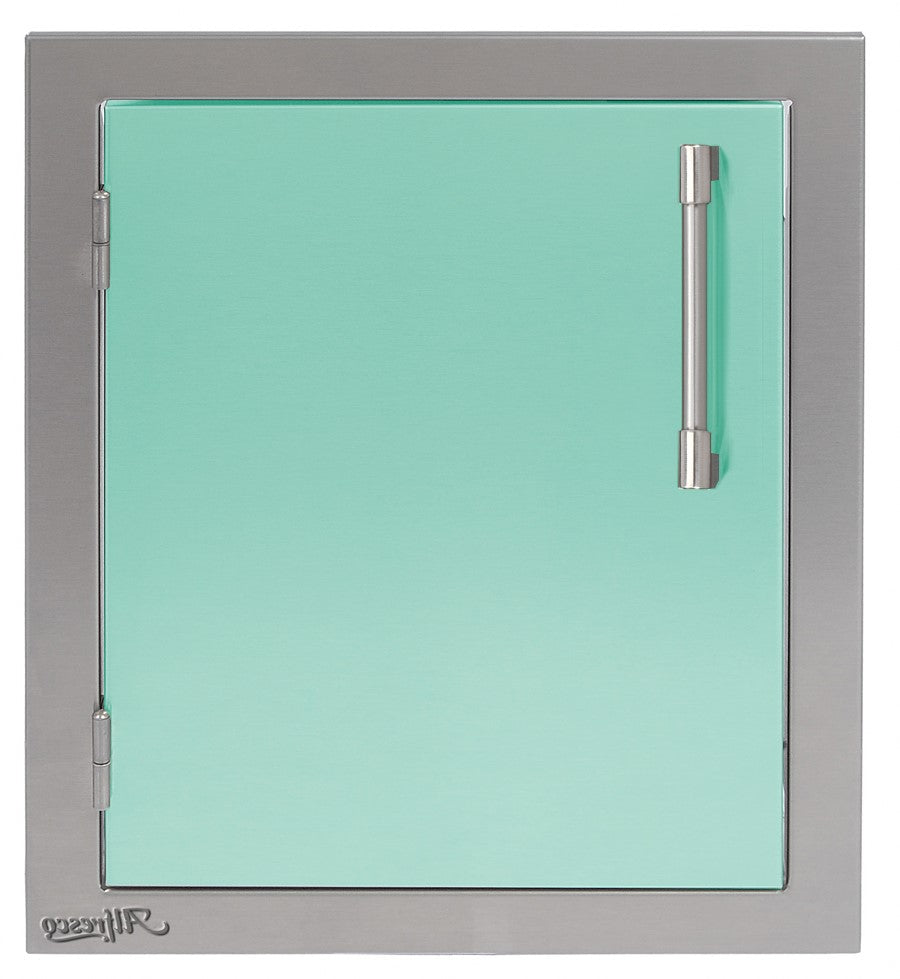

  • Available in stainless steel or selected Alfresco factory colors, depending on variant
  • Manufacturer: Alfresco
  • Model Family: AXE-17L / AXE-17R
  • Store SKUs: AXE-17L-01 / AXE-17R-01
  • Product Type: Single access door
  • Orientation: Vertical
  • Material: Stainless steel
  • Number of Doors: 1
  • Closure: Magnetic catch
  • Power Required: No
  • Overall Front: 16 1/2 inches W x 21 1/8 inches H
  • Door Chassis Depth: 13 5/8 inches
  • Required Cutout: 13 7/8 inches W x 18 1/2 inches H x 21 5/8 inches D
  • Maximum Door Swing: 175 degrees
  • Select AXE-17L-01 for the left-hinge configuration or AXE-17R-01 for the right-hinge configuration
  • Designed for front-mounted installation in an outdoor-kitchen island
  • Allow sufficient side clearance for the selected door to open
  • The XEDS-1 accessory door bin and AXE-17E enclosure/shelf system are optional and sold separately
  • No electrical connection is required
  • Verify all cabinet dimensions against the manufacturer drawing before construction
