SKU: A-DV1420

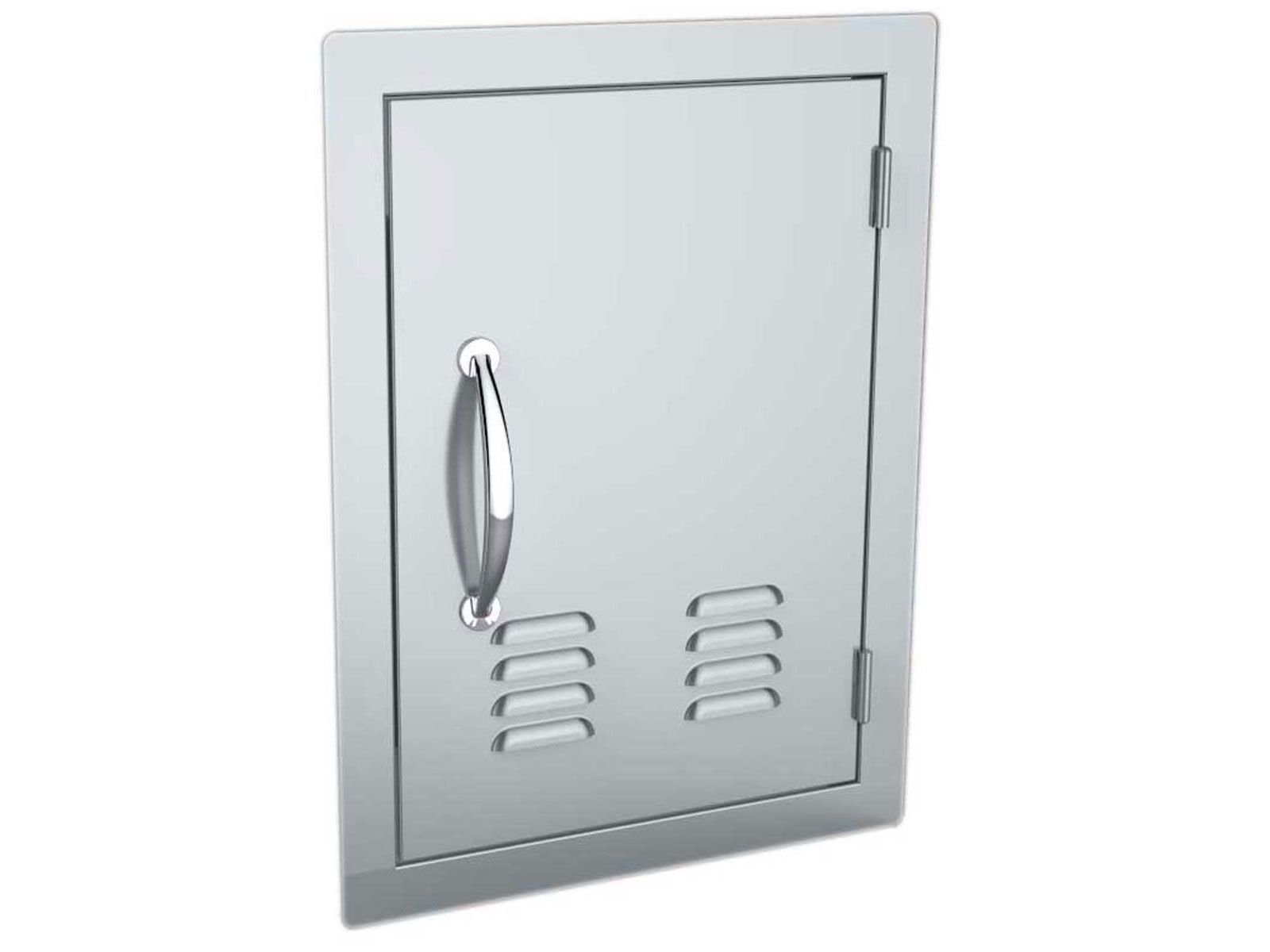

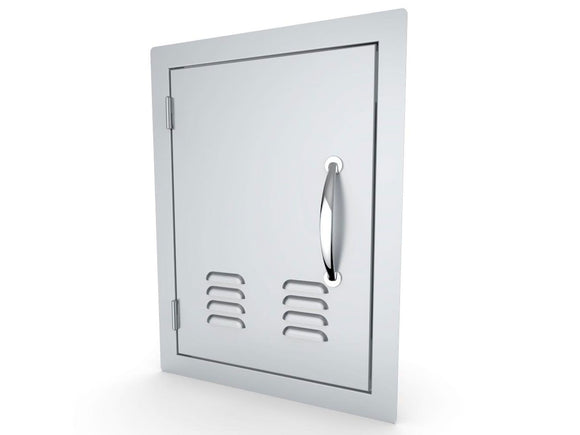

Sunstone Classic Series 14 x 20-Inch Vertical Vented Access Door – Left or Right Hinge

$198.00

Shipping calculated at checkout

Hinge Type: Right Hinge

Available Now!
Description Features Specifications Dimensions Manuals

Keep your outdoor kitchen island accessible with a clean, flush-mounted stainless-steel door. The Sunstone Classic Series vertical vented access door combines a simple frame, a comfortable curved handle and lower louvers for airflow through the door panel.

Choose the hinge side that works with your island layout: A-DV1420 is the right-hinge version, and A-DV1420-L is the left-hinge version. The 14 x 20-inch model designation is nominal; both versions measure 17 inches wide by 23 inches high overall. This listing is for one door and frame in your selected handing.

  • 16-gauge 304 stainless-steel construction.
  • Chrome-plated zinc-alloy handle.

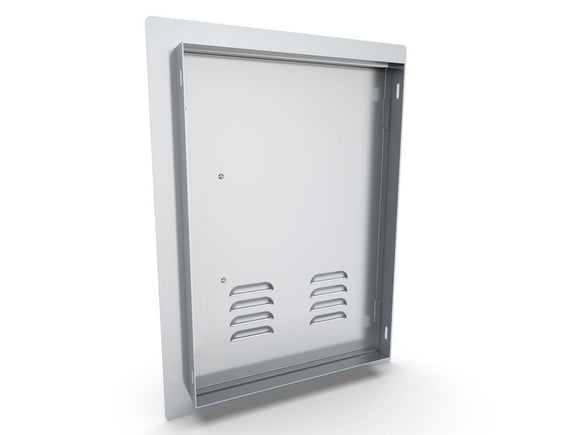

  • Flush-style frame with pre-drilled mounting holes.
  • Two banks of lower louvers provide airflow through the panel.
  • Top and bottom magnetic catches hold the door closed.
  • Separate left- and right-hinge versions to suit your layout.
  • Manufacturer: Sunstone.
  • Collection: Classic Series, Flush Style.
  • Configuration: one vertical vented access door and frame.

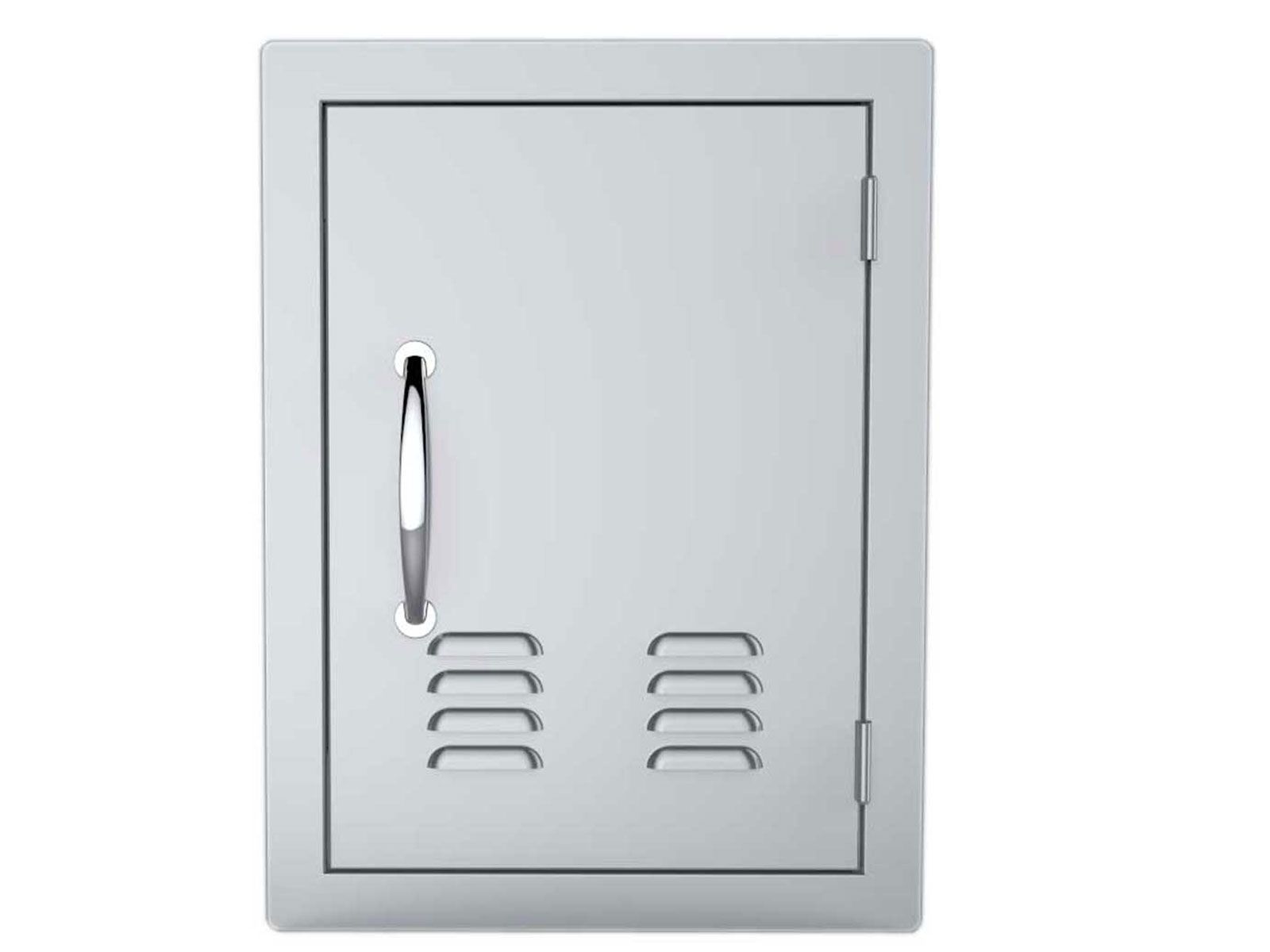

  • Right-hinge model: A-DV1420; shown as A-DV1420-R in the manufacturer specification drawing.

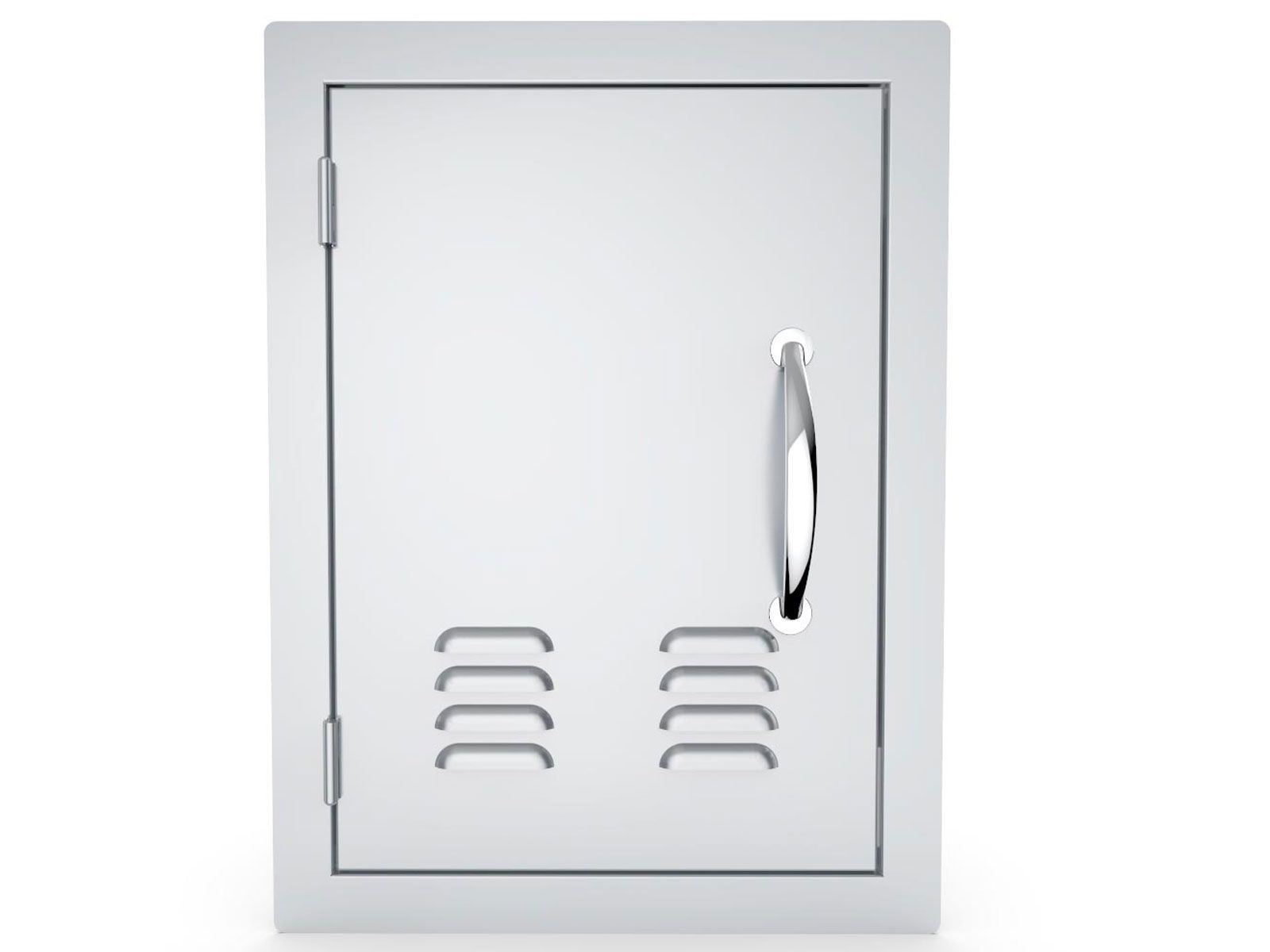

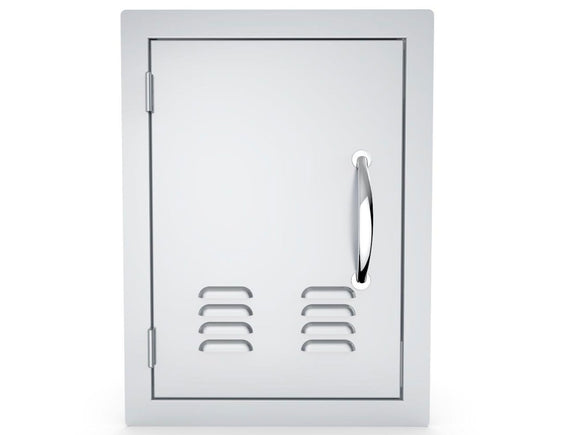

  • Left-hinge model: A-DV1420-L.

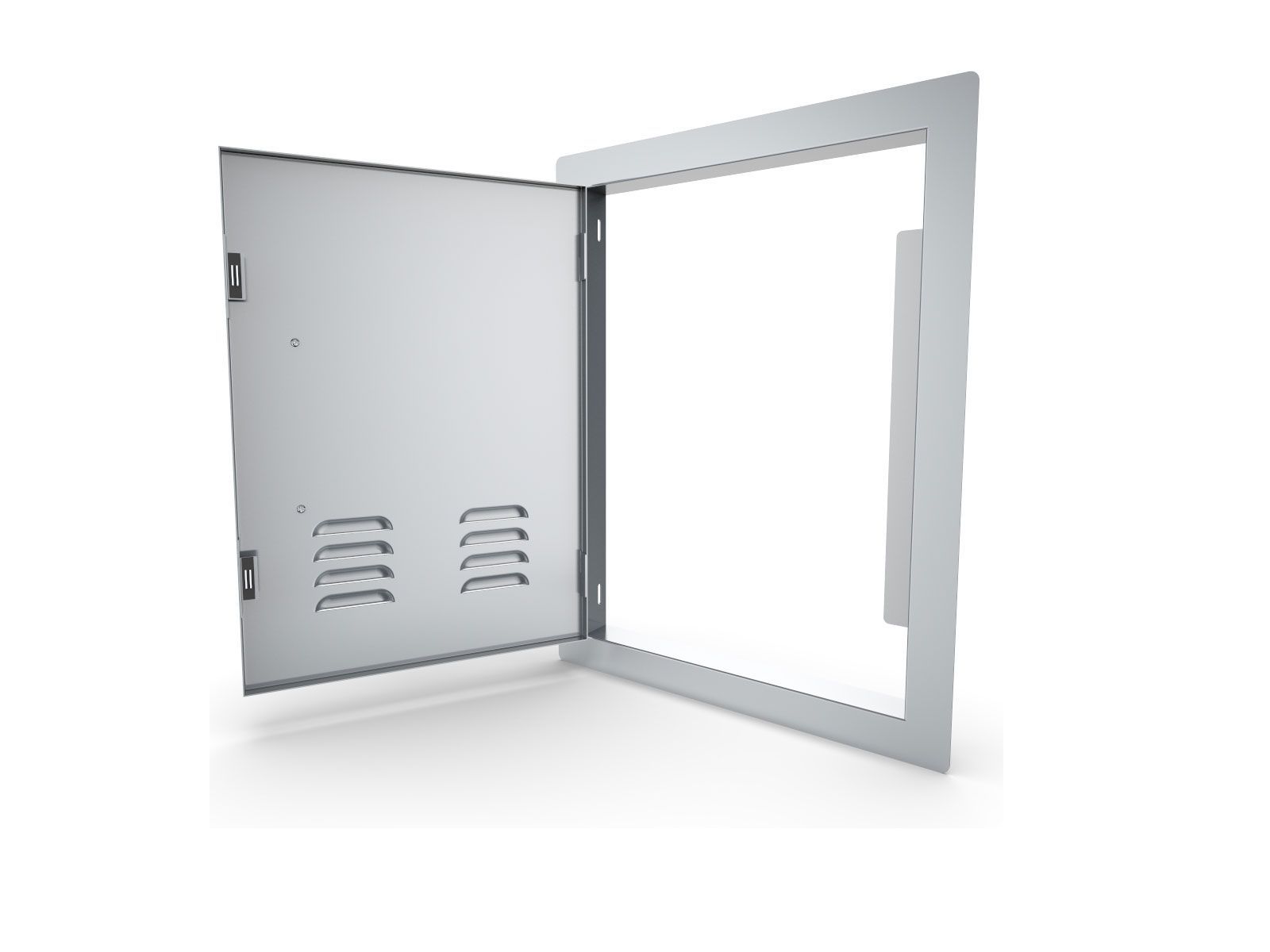

  • Door opening: up to 180 degrees, subject to surrounding clearance.
  • Overall, either handing: 17 inches W x 23 inches H x 1-5/8 inches D.
  • Cutout, either handing: 14-1/4 inches W x 20-1/4 inches H.

Confirm the selected hinge side, actual door and supplied specification sheet before making the opening. Follow the manufacturer installation instructions and the ventilation requirements for any appliances or fuel equipment inside the island; a vented door alone does not establish that an enclosure is suitable for propane-cylinder storage.

Sunstone A-DV1420 Left- and Right-Hinge Specification Sheet

Sunstone Access Door Installation Guide

Sunstone Care & Use Guide

Sunstone Product Catalog
