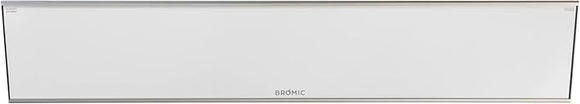

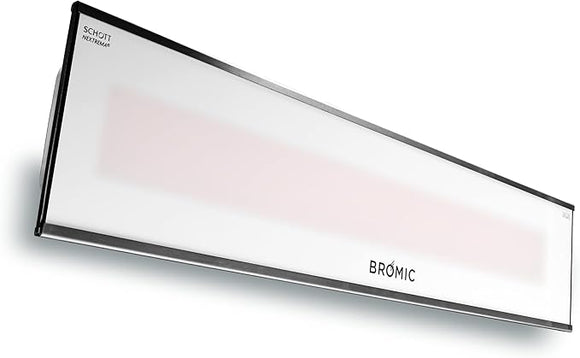

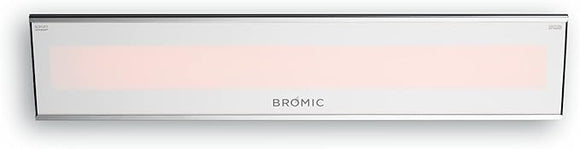

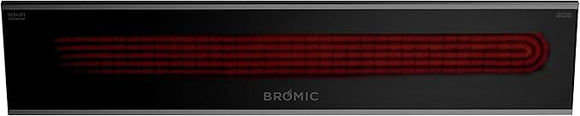

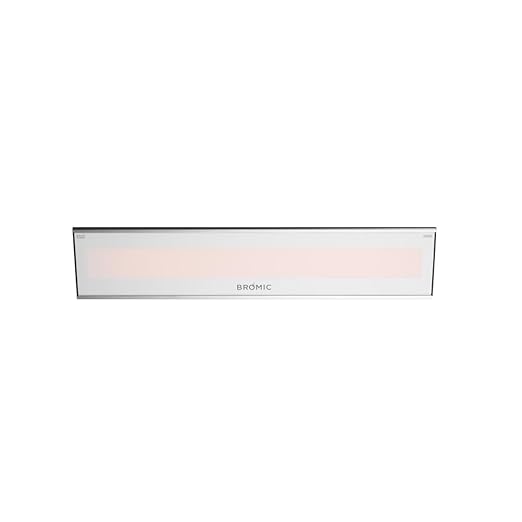

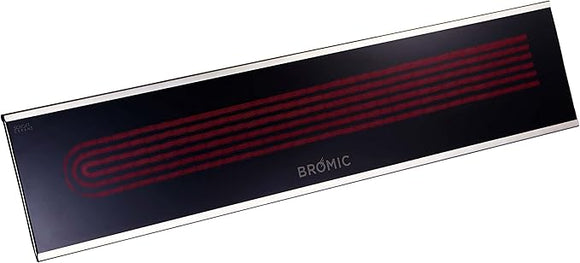

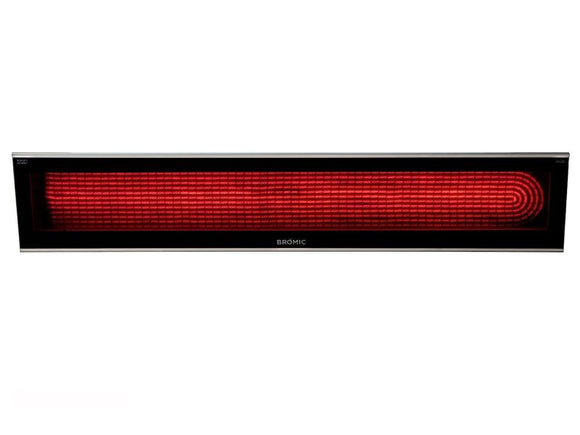

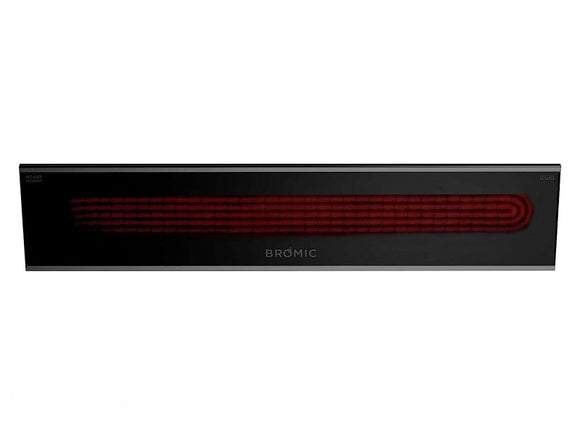

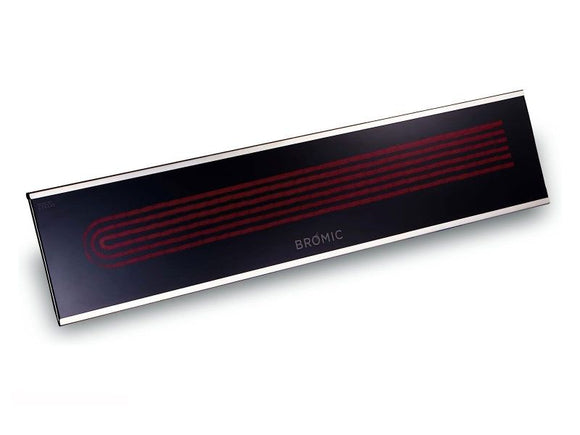

Bromic Platinum Smart-Heat Electric Heater

Bring low-profile radiant warmth to a design-focused outdoor space with the Platinum Smart-Heat Electric heater. Wattage, voltage, and finish are selected together, letting the heater align with the project’s electrical plan and ceiling or wall layout.

Key Features

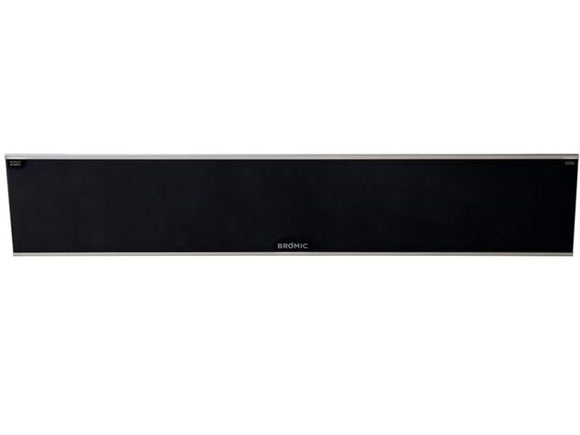

• Slim ceramic-glass fascia in black or white
• Low-light radiant heating behind a ceramic-glass screen
• Wall and ceiling mounting hardware included
• Compatible with Bromic on/off and dimmer control systems

Specifications

• Manufacturer: Bromic Heating
• Outputs: 2300W, 3400W, or 4500W
• Voltage options: 208 V or 220–240 V
• Rated current at 220–240 V: 9.6 A / 14.2 A / 18.8 A by output
• Rated current at 208 V: 11.1 A / 16.3 A / 21.6 A by output
• Published heat area: up to 65 / 108 / 143 sq ft by output

Dimensions

• Approx. product weight: 17 lb (2300W), 22 lb (3400W), 33 lb (4500W)
• Minimum published mounting height: 72 in wall mount or 96 in ceiling mount
• Use the selected wattage’s technical drawing for length, bracket spacing, and required clearances.

Compatibility & Installation

• Choose wattage, voltage, and color to match the electrical and design specification.

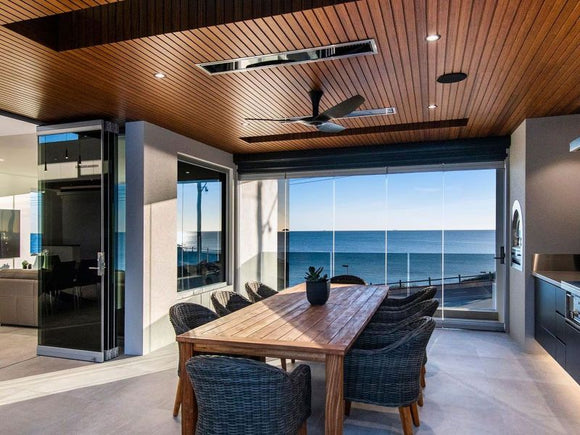

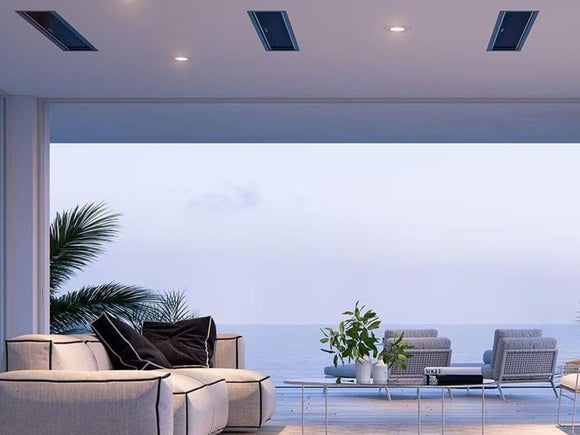

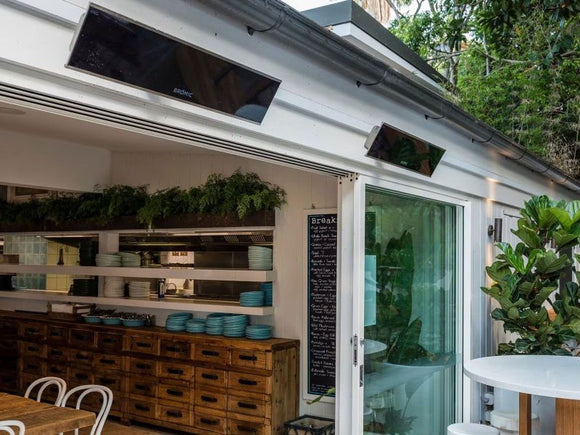

• For outdoor wall or ceiling mounting in an installation approved by Bromic.
• A licensed electrician must provide the correct dedicated circuit and complete installation to the current manual.

Manufacturer Resources

• Official Platinum Smart-Heat Electric product page
• Bromic 2026 product catalog
• Bromic technical resources
• Bromic Heating contact
• Bromic Heating support: 1-800-301-1293; use the contact link above for current service guidance.
