SKU: W1524SS

Infratech W-1524 33-Inch 1,500W Single-Element Electric Infrared Heater, 240V

$606.00

Shipping calculated at checkout

Available Now!
Description Specifications Before Installation Official Infratech Resources

Warm an outdoor seating area with the Infratech W-1524, a 33-inch, 1,500-watt single-element electric infrared heater. This listing is for the 240-volt, brushed-stainless W1524SS configuration. Its low-profile W-Series housing is designed for wall or ceiling mounting, with heat aimed toward people and surfaces rather than the surrounding air.

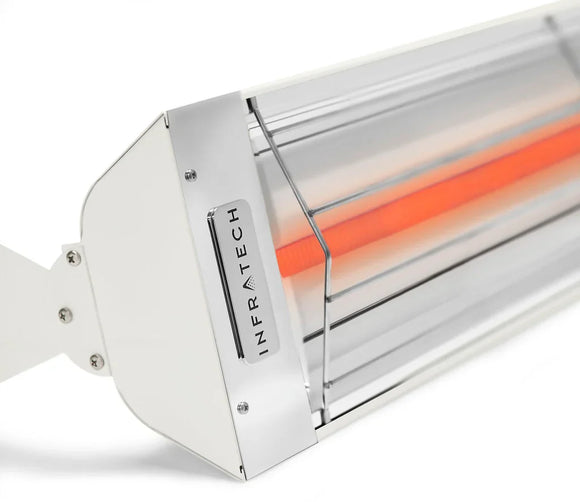

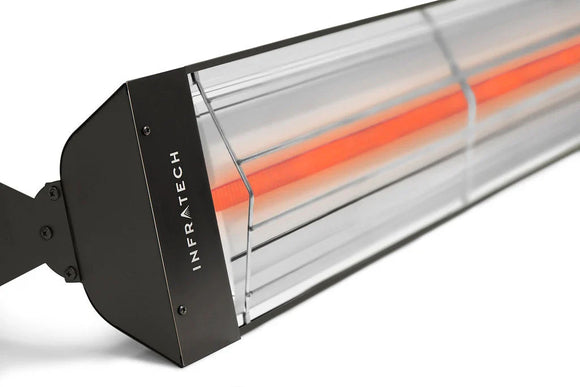

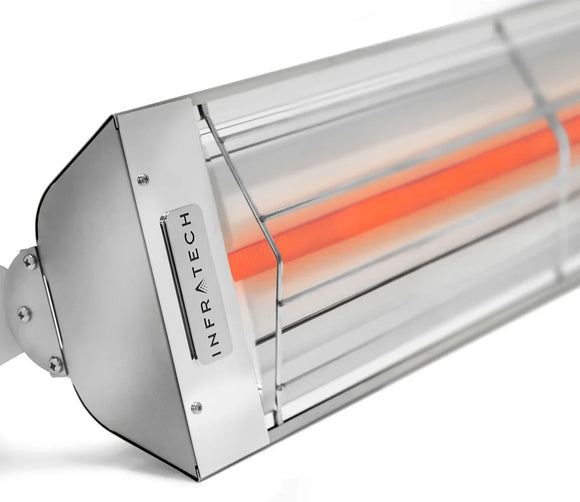

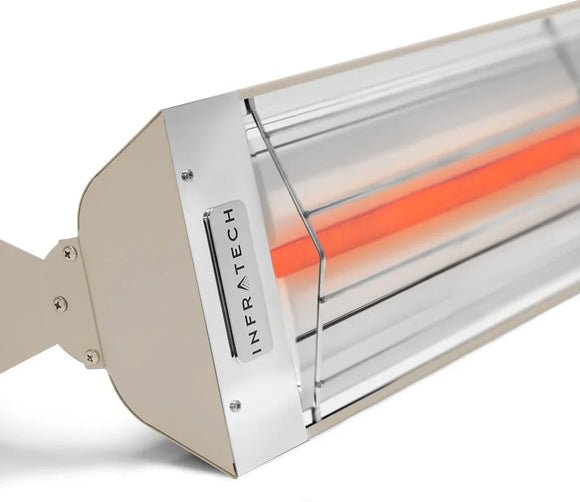

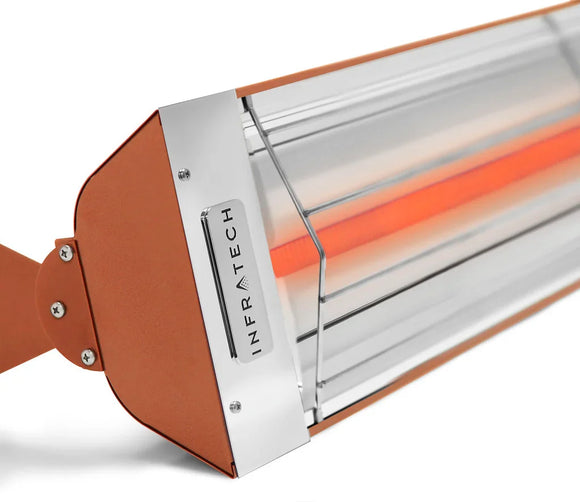

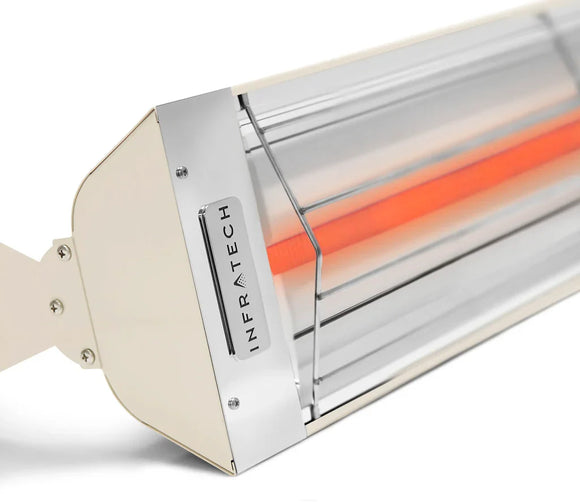

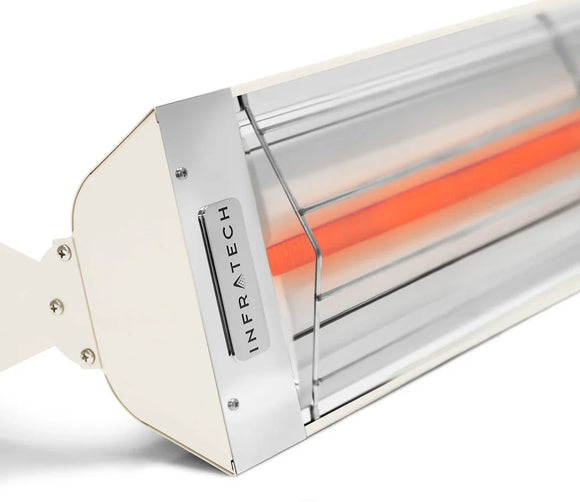

Finish and photos: The SKU on this page supplies brushed stainless steel. Other color photos show optional W-Series finishes for illustration only; those finishes are separate manufacturer configurations and are not selectable on this listing.

  • Model and supplied finish: W-1524 SS / W1524SS, brushed stainless steel
  • Heat output: 1,500 watts; one quartz-tube element
  • Electrical rating: 240 volts, approximately 6.3 amps at rated voltage
  • Heater length: 33 inches; W-Series housing width: 8 inches. Installed depth and clearances vary by mounting method—use the linked manufacturer drawing and installation guide to plan the complete footprint.
  • Mounting: wall or ceiling; Infratech supplies a pair of swivel brackets. Controls, electrical conduit, and optional flush-mount hardware are separate.

Have a licensed electrician verify the heater label, site voltage, wiring, mounting angle and all required clearances before installation. The W-Series manual calls for at least 18 inches from the sides and ends, 36 inches in front, and 6 inches behind the heater; additional wall/ceiling and floor-height rules depend on placement and safety labeling. Keep the quartz tube horizontally level. Choose a control rated for this 240-volt heater and the installation—not a 120-volt W-1512 control.

W-Series model and control specifications · W/WD-Series installation, use and care manual · W-Series dimensional and clearance drawing
