SKU: X-DGR32WNG

Heatstrip Wall Mounted Natural Gas Heater

$1,249.00

Shipping calculated at checkout

Available Now!

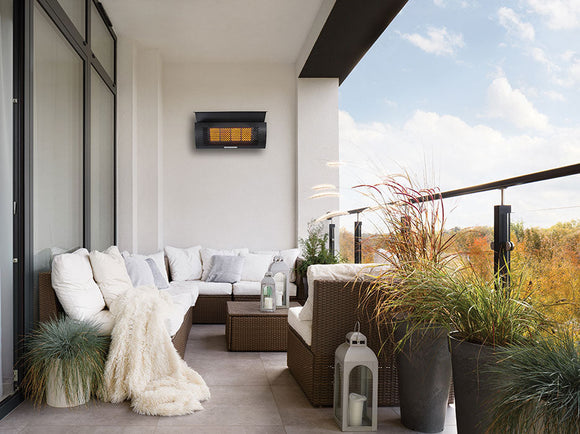

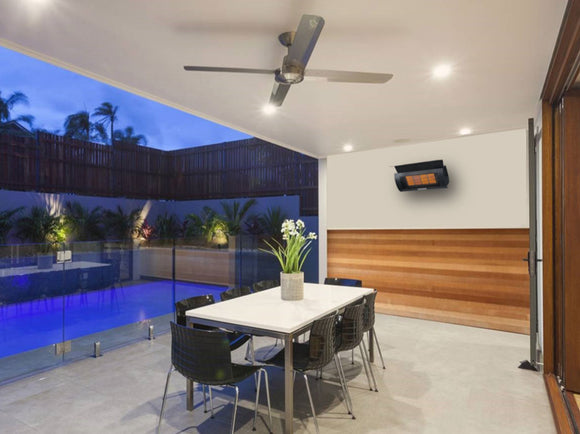

Warm an outdoor seating area without occupying floor space with the Heatstrip X-DGR32WNG wall-mounted natural-gas heater.

Key Features

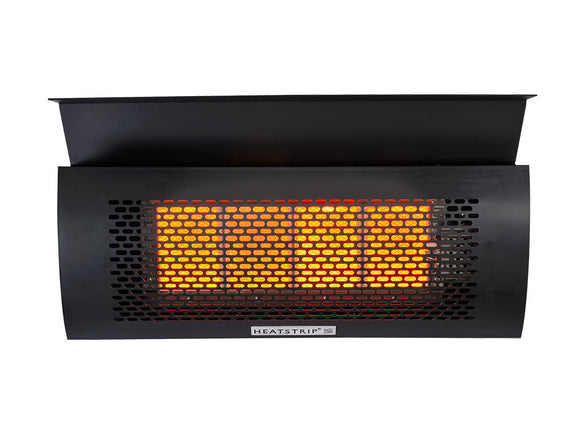

  • Four-tile ceramic burner.

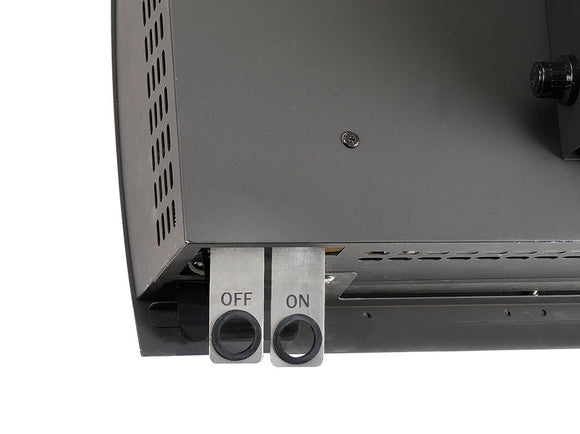

  • Electronic finger-pull ignition and flame-failure device.

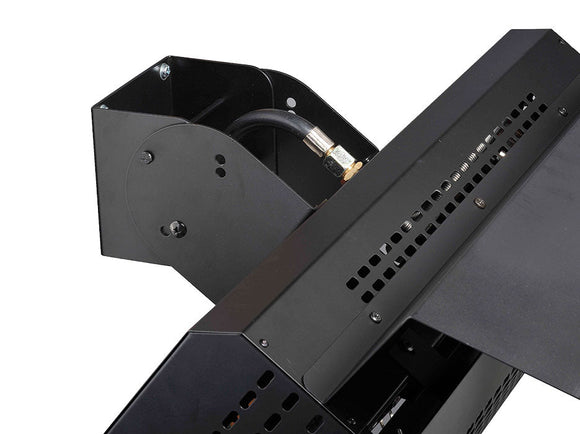

  • Protective grille, reflector and adjustable-angle wall bracket.

Specifications

  • Manufacturer: Heatstrip
  • Exact listing SKU: X-DGR32WNG
  • Model: X-DGR32WNG
  • Fuel: natural gas only
  • Nominal gas consumption: 32,225 BTU/hr
  • Test-point pressure: 1.00 kPa
  • Head net weight: 11.5 kg

Dimensions

  • Heater width shown in the manufacturer drawing: 650 mm
  • The linked drawing includes mounting projection and clearance details; confirm the final installed dimensions with your installer.

Compatibility & Installation

  • Minimum mounting height: 2000 mm. Minimum side clearance: 1000 mm. Overhead clearance: 500 mm with the standard reflector; 300 mm only with the specified optional heat shield.
  • Outdoor use only in an above-ground, naturally ventilated location that meets the manual’s enclosure requirements. Do not use in a garage or other enclosed area.
  • Have a qualified gas installer verify the fuel, pressure, connections and leak checks. Do not convert this heater to a different fuel.
  • Do not install in an open location subject to rain.

Manufacturer Resources
