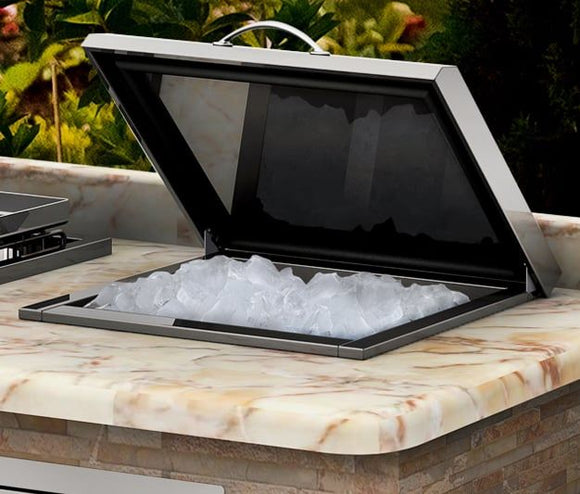

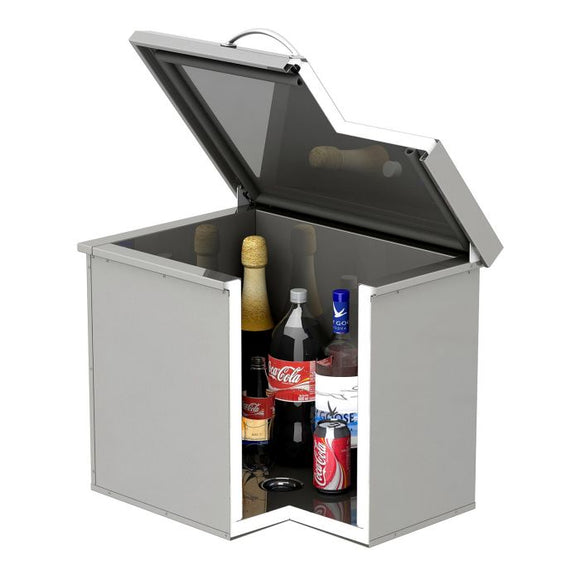

The Artisan ARTP-IC insulated ice bin creates a built-in place to chill beverages and ingredients in an outdoor-kitchen counter. One inch of insulation surrounds the bin, a removable hinged lid opens the full cavity, and the standard drain fitting lets meltwater route to an approved waste connection.
Key Features
- 2.7 cu. ft. internal volume, approximately 20.4 gallons
- One inch of insulation on all surfaces
- Removable lift-up lid with heavy-duty hinge
- Premium seals and commercial insulation help keep contents cold longer
- Standard 1 in. NPS drain fitting with cap
Specifications
- Manufacturer: Artisan / Superior Equipment Solutions
- Model: ARTP-IC
- Configuration: Built-in countertop ice bin
- Capacity: 2.7 cu. ft. / 20.4 gallons
- Insulation: 1 in. on all surfaces
- Drain: 1 in. NPS standard household drain fitting with cap
- Lid: Removable, lift-up design
Dimensions
- Overall Width: 24 in.
- Overall Depth: 17 3/8 in.
- Countertop Cutout: 22 1/4 in. W x 16 3/4 in. D
- Required Height Below Countertop: 17 5/8 in.
- Interior Cavity Width: 19 5/8 in.
Installation/Compatibility Note
Verify the countertop opening and below-counter clearance against the linked drawing before fabrication. Plan an accessible, code-compliant drain route for the 1-inch NPS fitting and maintain clearance for full lid removal. This is an insulated ice bin, not a refrigerated appliance; it does not actively cool its contents.
