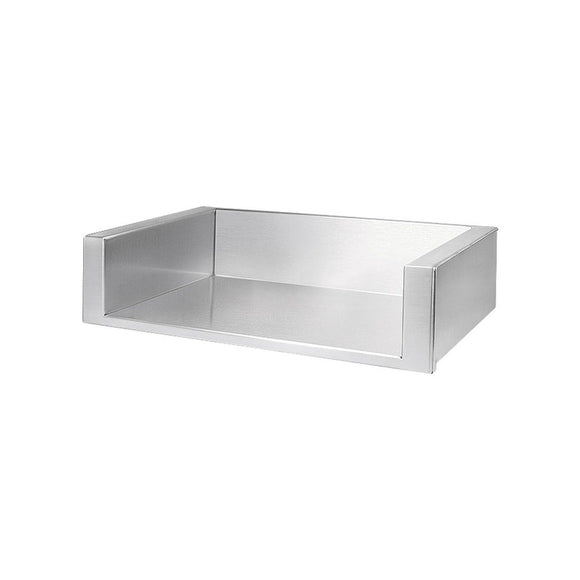

Plan your built-in installation around the correct Alfresco insulating jacket. These model-specific jackets provide the enclosure required by Alfresco when an ALXE grill is installed in a combustible enclosure. Match the jacket to the grill model, and use the corresponding drawing for the opening and service connections.
All measurements below are in inches. Overall dimensions include the jacket’s outer edges; opening dimensions are separate. The grill’s nominal size is not the jacket width.
| Model |
Overall width |
Overall depth |
Overall front height |
Opening width |
Opening depth |
Opening height |
| AIJ-30-01 |
34 9/16 |
25 1/4 |
11 3/8 |
33 1/4 |
24 5/8 |
11 1/4 |
| AIJ-36 |
40 9/16 |
25 1/4 |
11 3/8 |
39 1/4 |
24 5/8 |
11 1/4 |
| AIJ-42 |
46 9/16 |
25 1/4 |
11 3/8 |
45 1/4 |
24 5/8 |
11 1/4 |
| AIJ-56 |
60 9/16 |
25 1/4 |
11 3/8 |
59 1/4 |
24 5/8 |
11 1/4 |
Consult the full model drawing for bullnose notches and gas and electrical access before construction. The drawings show 7/8-inch side notches; notch depth depends on the countertop bullnose overhang. Confirm all installation details against the appliance manual and model information.
