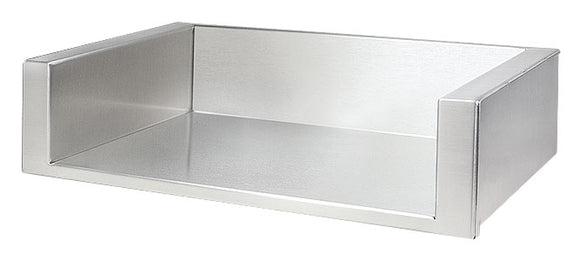

The Artisan ARTIJ-26 insulated jacket allows an AAEP-26 built-in grill to be installed in an enclosure made from combustible materials when all manufacturer requirements are followed. It surrounds the grill body and provides the wider, deeper opening required for an insulated installation.
Key Features
- Insulated liner sized for the Artisan AAEP-26 built-in grill
- Requires a wider, deeper island opening than a bare-grill installation
- Required by the manufacturer when the compatible grill is built into combustible construction
- Integrated piping-access opening
- Does not require power or gas by itself
Specifications
- Manufacturer: Artisan / Superior Equipment Solutions
- Model: ARTIJ-26
- Product Type: Built-in grill insulated jacket
- Grill Compatibility: AAEP-26
- Utilities: None for the jacket itself; the grill still requires its specified gas supply
Dimensions
- Overall: 28 5/8 in. W x 24 5/8 in. D x 11 9/16 in. H
- Interior Width: 23 13/16 in.
- Counter Cutout: 27 1/4 in. W x 23 5/8 in. D x 10 1/4 in. H
- Bullnose Notches: 7/8 in. at each side; depth follows the bullnose overhang
- Piping Access Opening: 22 1/4 in. long
Installation/Compatibility Note
Use ARTIJ-26 only with the manufacturer-listed AAEP-26 built-in grill unless Artisan confirms another exact model in writing. Fabricate the enclosure to the jacket cutout, not the bare-grill cutout, and preserve all ventilation, gas-access, and clearance requirements from the grill manual. The jacket does not replace a qualified gas installation or local-code compliance.
