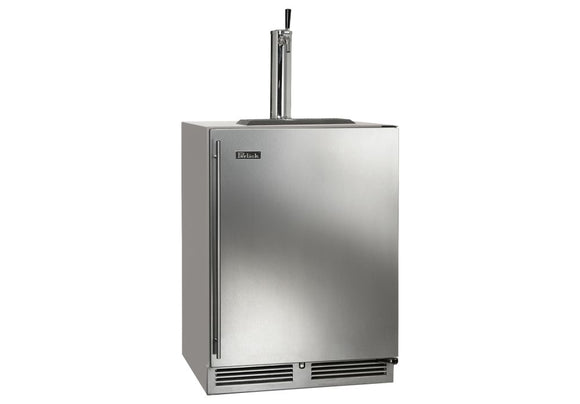

Enjoy a fresh draft pour in your outdoor kitchen with the Perlick 24-inch C-Series beverage dispenser. Its 5.2-cubic-foot cabinet accommodates two sixth-barrel kegs or one quarter-barrel keg, with single- or double-faucet configurations to suit your bar.
- Cabinet dimensions in the manufacturer drawing: 23⅞ inches wide × 24¹⁄₁₆ inches deep (depth tolerance ± ¹⁄₁₆ inch) × 34¼ inches high, excluding the dispensing tower.
- The summary specification table rounds the cabinet to 23⅞ × 24 × 34¼ inches; use the detailed drawing for final cabinet planning.
- Standard handle projection: 1⅜ inches. Custom panels and pulls can change finished depth.
- Adjustable leveling feet can add up to ¾ inch; measure the installed unit rather than treating cabinet height as fixed.
- The current installation manual specifies an opening 24 inches wide × 24 inches deep × 34⅜ to 35½ inches high. The model specification sheet separately lists a standard opening 24 × 24⅞ × 34½ inches. A 24-inch installation depth requires the electrical connection beside the installation cavity.
- Allow 25 inches of clear space in front for full door swing or drawer access. The door must open at least 90°; use the installation manual’s corner-filler requirements where applicable.
Use a properly grounded 15-amp outlet and install the supplied anti-tip brackets for stationary installations. Keep the front grille unobstructed, level the cabinet and support countertops independently. Optional casters follow separate installation instructions.
Stainless steel doors use finish code 1; panel-ready solid doors use code 2. Choose the required left or right hinge and one- or two-faucet tower. Panel-ready selections require custom panels and handles supplied by you or your cabinetmaker; decorative wood panels shown in photos are not included. Follow the linked panel template, which applies to orders entered on or after January 1, 2016.
This listing is supplied without a factory-installed lock. In the model code, LL means left hinge with a lock and RL means right hinge with a lock. Photos are representative; your selected finish, hinge, faucet count and lock option determine the supplied configuration.
The manufacturer tapping instructions cover the tower, beverage and gas lines, regulator, low-profile keg coupler(s), and the manifold used on two-faucet systems. The current installation guide identifies the standard 304 stainless steel Lo-Boy coupler. Choose a keg compatible with the supplied coupler; other keg systems may require a separate compatible coupler. Perlick states that CO₂ tanks ship empty and must be filled before use; beer and a CO₂ fill are not included.
Install the cabinet before the dispensing equipment. For countertop mounting, align the cabinet access hole with the countertop openings and use the full-size mounting template in the tapping instructions. Confirm the template prints at scale before cutting. Adara towers have additional air-tube preparation instructions. Follow the complete manufacturer procedure rather than using the product photos as an installation guide.
Follow Perlick’s outdoor seasonal-maintenance instructions before cold-weather shutdown. Turn the unit off, disconnect power as directed, remove contents and clean the cabinet and condenser. The guide instructs owners not to place a cover over the unit. Resume use only under the conditions specified in the manufacturer instructions.
For eligible new HP and HC undercounter refrigeration produced January 4, 2021 or later, Perlick publishes a limited six-year parts-and-labor warranty, capped at 75 months after shipment from Perlick. Beverage-dispensing components have a separate one-year parts-and-labor warranty, capped at 15 months after shipment. Coverage is for the original purchaser, requires proper registration and is subject to installation, care, cosmetic-coverage limits and other exclusions in the linked warranty statement. Floor models follow separate terms.
