Summit 15 Inch Outdoor Ice Maker with Panel Ready Solid Door

• Outdoor Clear Icemaker
  15" wide built-in undercounter icemaker produces 62 lbs. of clear gourmet ice cubes
• Commercially approved
  ETL-S listed to NSF-12 commercial standards for use in foodservice settings
• Weatherproof design
  Durable construction for safe installation in outdoor kitchens
• 62 lb. production capacity
  Can make up to 62 lbs. in a day cycle, producing 24 cubes in a 30 minute span
• Built-in capable
  Front-breathing design lets you make the best use of space by installing your appliance under the counter

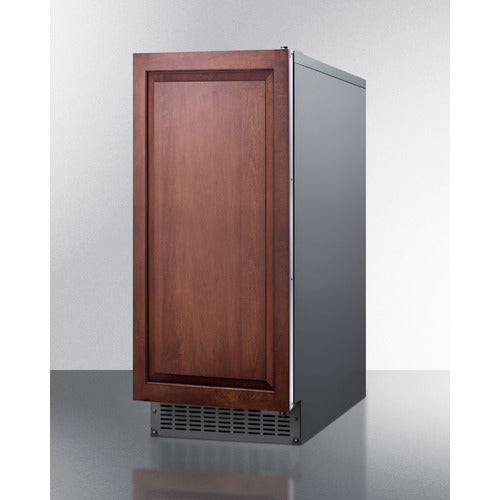

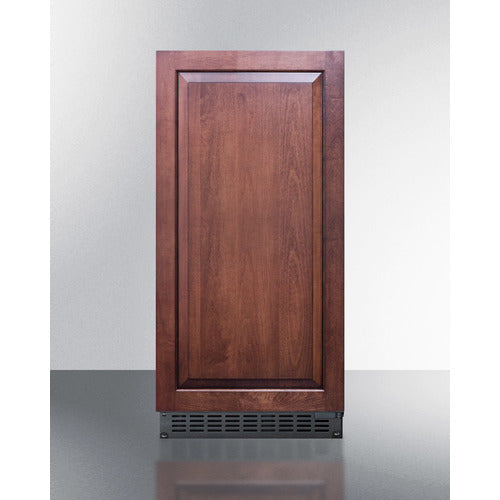

• Panel-ready door
  Integrated door frame accepts overlay panels for a customized look (panel size: 29 9/16" H x 14 7/8" W at 3/4" thick)
• Stainless steel wrapped exterior
  Door and cabinet are fully wrapped in 304 grade stainless steel for lasting elegance

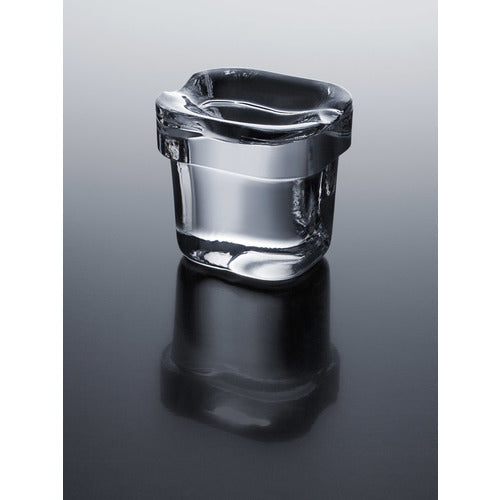

• Clear ice cube production
  Gourmet style rounded dice-style ice cubes
• Frost-free operation
  No-frost operation for minimum user maintenance
• Gravity drain setup
  Requires connection to gravity drain
• Factory-reversible door
  Unit ships RHD but can be ordered with a left hand door swing (option LHD); not field-reversible
• Standard water hookup
  Operates with a standard 1/4” OD water supply line
• Sealed back
  Space-saving design with easier cleanability
• Fully finished cabinet
  Allows the unit to be used freestanding
• 100% CFC free
  Environmentally friendly design without ozone-damaging chemicals

• Capacity: 0.98 cu.ft. (28 L)
• Defrost Type: Frost-Free
• Door: Panel-Ready
• Cabinet: Stainless Steel
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Amps: 4.0
• Voltage/Frequency: 115 V AC / 60 Hz
• Weight: 105.0 lbs. (48 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101061801

Icemaker Features

• Door Swing: RHD
• Reversible: Factory Reversible
• Daily Ice Production: 62.0 lbs. (28 kg)
• Ice Storage Capacity: 26.0 lbs. (12 kg)
• Ice Shape: Top hat
• Size of Cube: 1 1/4" H x 1 1/8" W x 1 1/8" D
• Number of Ice Cube Sizes: 1

Refrigeration Details

• Fan Type: Exterior
• Refrigerant Type: R134a
• Refrigerant Amount: 7.4 oz.
• High Side PSI: 210.0
• Low Side PSI: 102.0

• Nominal Height: 34 inches (86 cm)
• Height of Cabinet: 33 1/2 inches (85 cm)
• Height to Hinge Cap: 33 5/8 inches (85 cm)
• Nominal Width: 15 inches (38 cm)
• Width: 14 7/8 inches (38 cm)
• Nominal Depth: 23 inches (58 cm)
• Depth: 22 5/8 inches (57 cm)
• Depth with Door at 90°: 37 1/4 inches (95 cm)
