Keep wine and everyday refreshments close at hand with the Perlick 15-inch Signature Series Marine & Coastal beverage center. Two pull-out wine shelves and a refrigerator shelf organize up to 8 wine bottles and 30 cans in 2.8 cubic feet of refrigerated storage.
Perlick Armor upgrades the stainless steel, fasteners and refrigeration system for added corrosion resistance in marine and coastal environments.
- Cabinet dimensions in the detailed manufacturer drawing: 14⅞ inches wide × 24 inches deep (± ¹⁄₁₆ inch) × 34⁵⁄₁₆ inches high.
- The summary specification table lists 14⅞ × 24 × 34¼ inches. Use the detailed drawing and installation instructions for final planning.
- Standard handle projection: 1⅜ inches; custom panels and pulls can change the finished depth.
- Extended leveling feet can add up to ¾ inch to the drawing height.
- The current July 2026 installation manual specifies an opening 15 inches wide × 24 inches deep × 34⅜ to 35½ inches high. The model sheet separately lists a 15 × 24⅞ × 34½-inch standard opening. For a 24-inch installation depth, position the electrical connection beside the cavity.
- Allow 25 inches of clear space in front for full door swing and shelf access. The current installation manual calls for at least a 3-inch filler in corner installations.
Follow the complete installation instructions for leveling, countertop support, unobstructed front ventilation, service access and the supplied anti-tip brackets for stationary installations. The condenser at the front requires at least 2 inches of air space. Do not use an extension cord or remove the grounding prong.

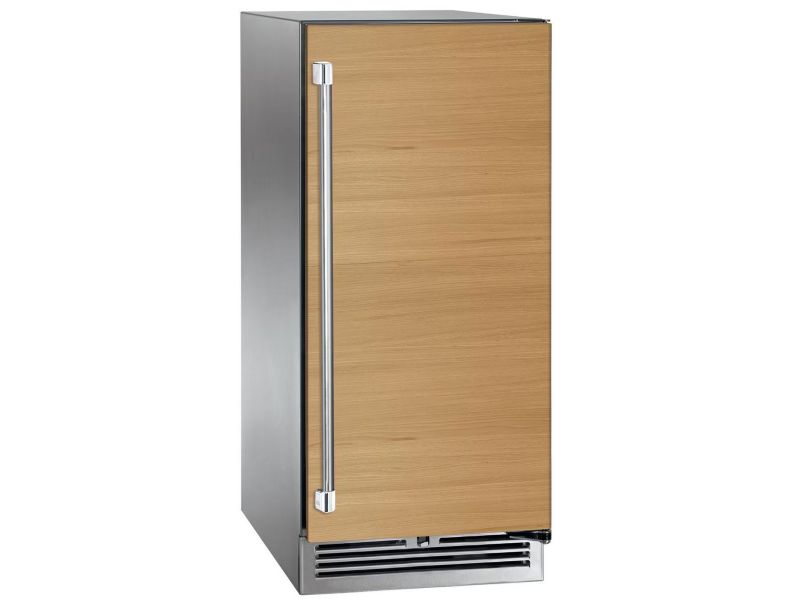

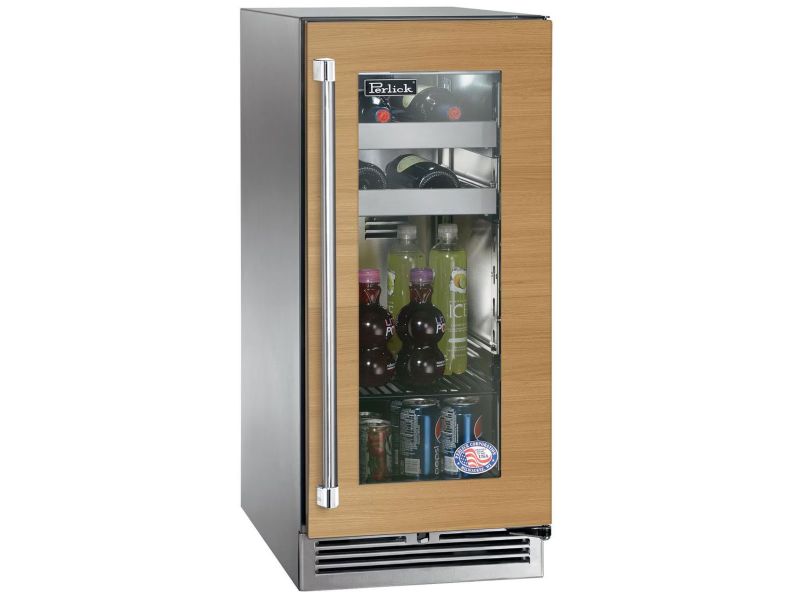

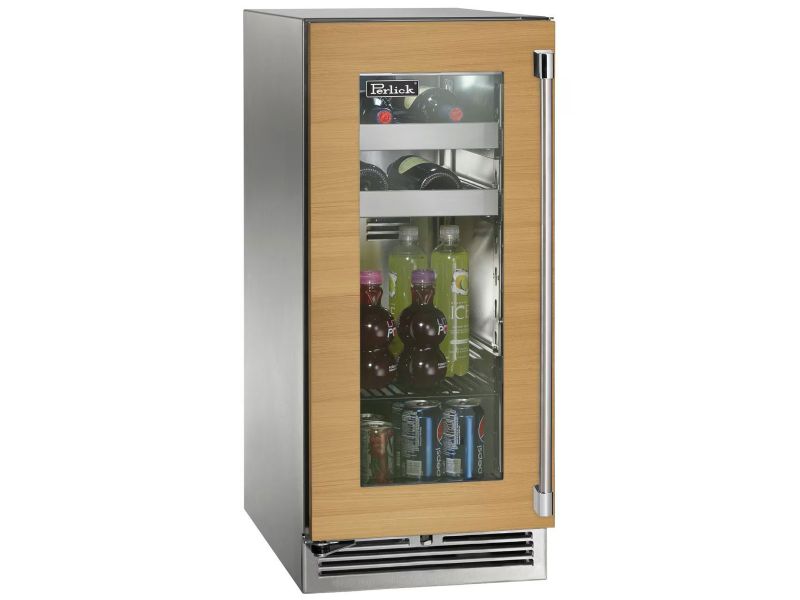

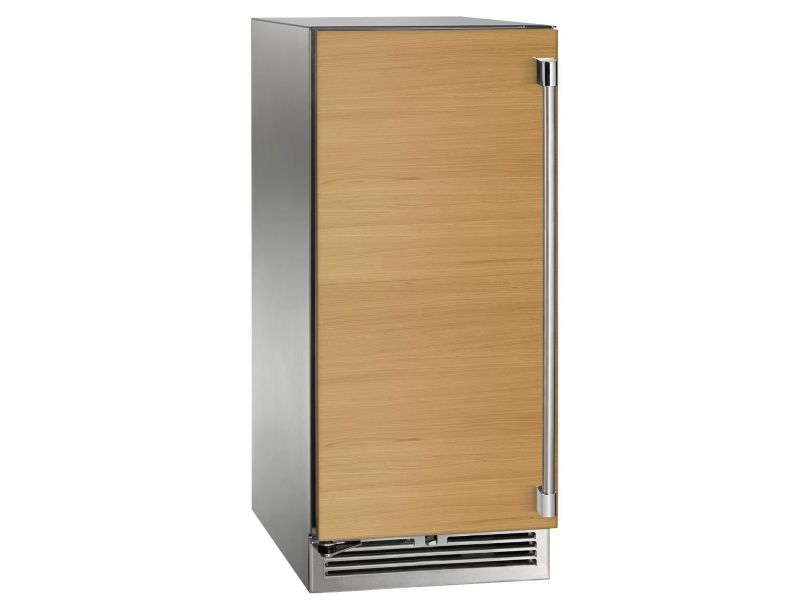

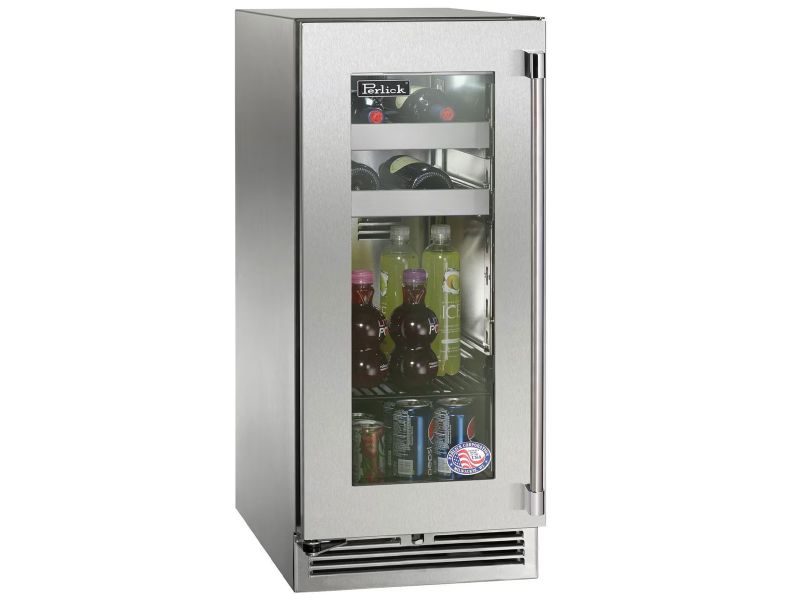

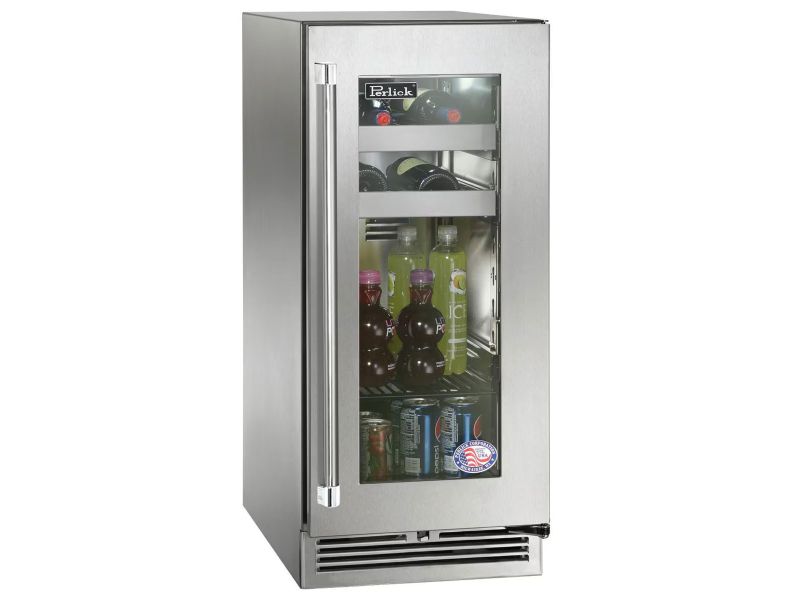

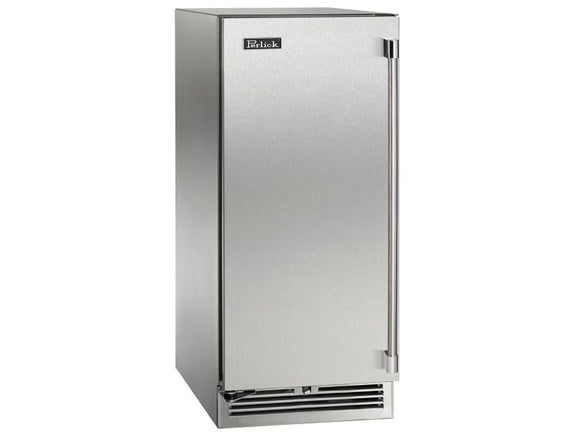

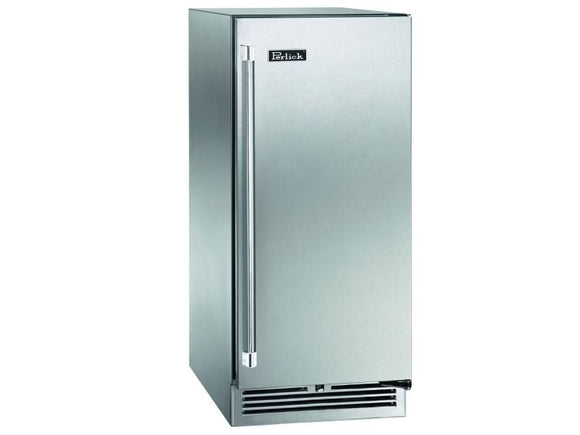

Door code 1 means solid stainless steel; code 2 means panel-ready solid; code 3 means stainless-framed glass; code 4 means panel-ready glass. Choose the required hinge side. The final L after the hinge code identifies the factory-installed lock.
Panel-ready selections require a decorative panel and handle supplied by you or your cabinetmaker. Wood panels shown in reference photos are not included. Use the linked 15-inch template for the chosen door type; these templates apply to orders entered on or after January 1, 2016.
Photos show representative door and installation configurations. The selected door, hinge and locking manufacturer model determine what is supplied. Drinks, cabinetry and other props are not included.
Winterize beverage-center models before daily lows reach 42°F. Follow Perlick’s guide to turn the unit off, disconnect power as directed, empty the cabinet and clean the interior, exterior and condenser. Do not place a cover over the unit. Restart when daily lows are above 42°F and allow about 24 hours for temperatures to stabilize before restocking.
For eligible new HP-series undercounter refrigeration produced January 4, 2021 or later, Perlick publishes a limited six-year parts-and-labor warranty for the original purchaser, capped at 75 months after shipment from Perlick. Proper registration, installation and care are required. Cosmetic coverage for stainless steel is limited to 60 days, and floor models follow separate terms. See the linked statement for full coverage and exclusions.
