Bring convenient cold storage to your outdoor kitchen with Perlick 24-inch Signature Series refrigerated drawers. Two pull-out compartments make it easy to reach ingredients and refreshments, while the 5.2-cubic-foot cabinet fits a compact undercounter space. Choose stainless steel drawer fronts or a panel-ready configuration to suit your design.
- Cabinet dimensions in the manufacturer drawing: 23⅞ inches wide × 24 inches deep (± ¹⁄₁₆ inch) × 34⁵⁄₁₆ inches high, before handle projection and leveling adjustment.
- Standard handle projection: 1⅜ inches. Custom drawer panels and pulls can change finished depth.
- Leveling feet can add up to ¾ inch to the drawing height.
- Current installation-manual opening: 24 inches wide × 24 inches deep × 34⅜ to 35½ inches high. A 24-inch installation depth requires locating the electrical connection beside the installation cavity.
- Allow 25 inches in front for full drawer access. Install on a level surface and keep the front ventilation grille unobstructed.
Use a properly grounded 15-amp outlet and install the supplied anti-tip brackets for a stationary installation. Confirm the actual appliance, custom fronts, handles and outlet location before finishing cabinetry. Optional caster installations require their own manufacturer instructions.
Stainless steel drawer models use manufacturer finish code 5. Panel-ready drawer models use finish code 6 and require custom panels and handles supplied by you or your cabinetmaker; these are not included. Follow the linked drawer-panel template, which applies to orders entered on or after January 1, 2016.

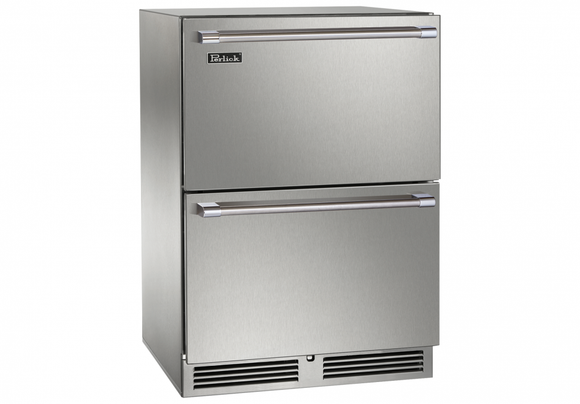

Choose a configuration with or without a factory-installed drawer lock. The DL model suffix identifies the locking version. The representative image shows stainless steel drawer fronts; your selected finish and lock configuration determine the supplied model.
Perlick recommends winterizing refrigerator models before daily low temperatures reach 38°F. Turn the unit off, disconnect electrical power as directed, remove contents and clean the condenser and cabinet. Do not place a cover over the unit. Restart only after daily lows are above 38°F and allow the cabinet to stabilize before adding perishables. Follow the full manufacturer care guide.
Perlick publishes a six-year limited residential parts-and-labor warranty for eligible new undercounter units. Production-date eligibility, original-purchaser registration, time limits and exclusions are governed by the linked manufacturer warranty statement.
