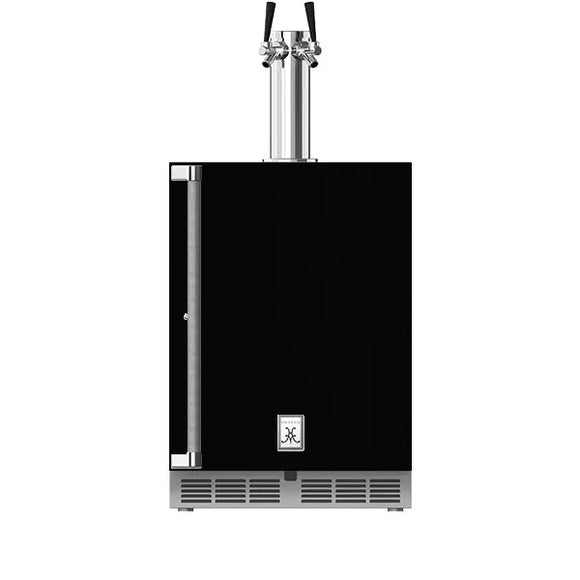

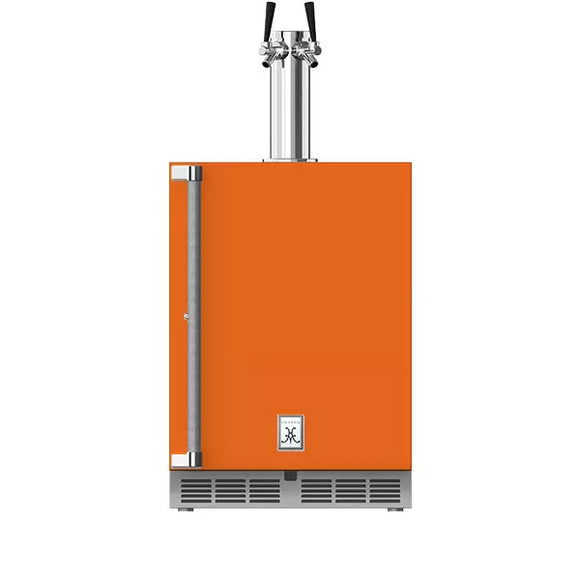

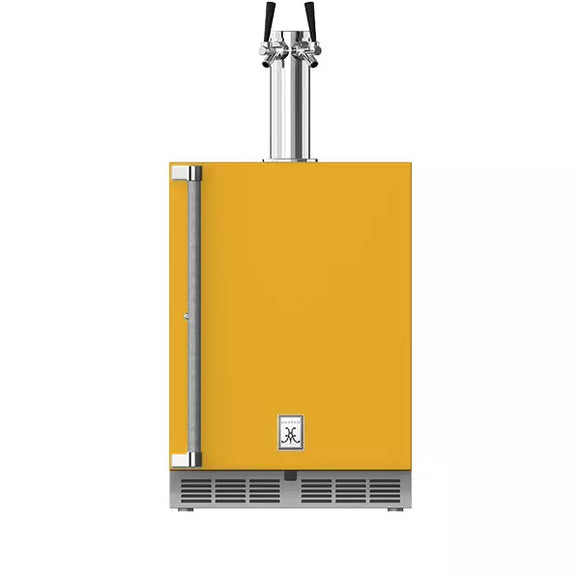

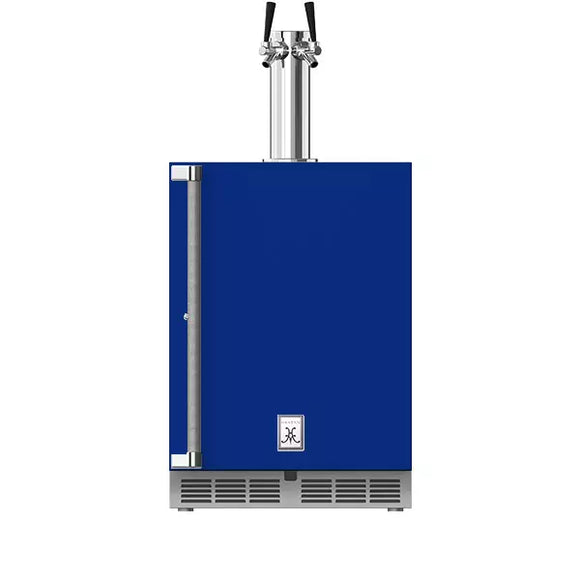

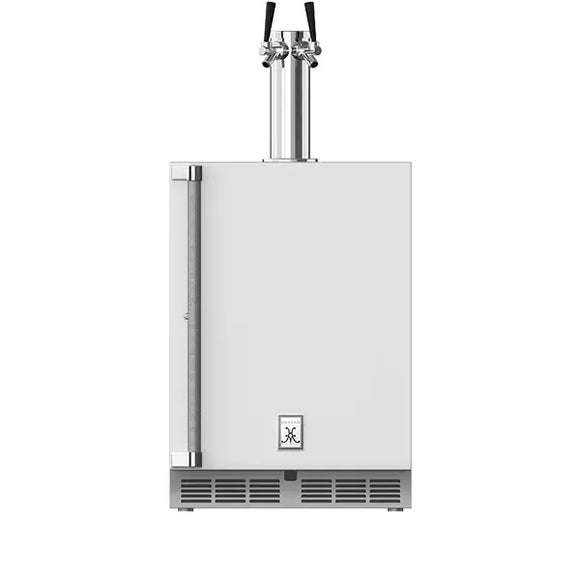

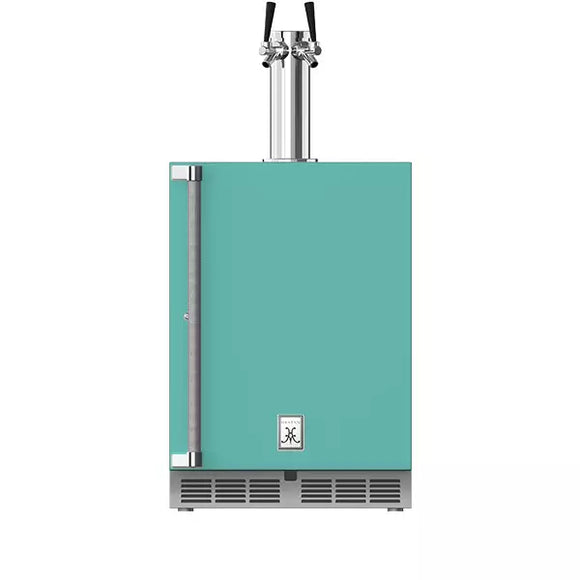

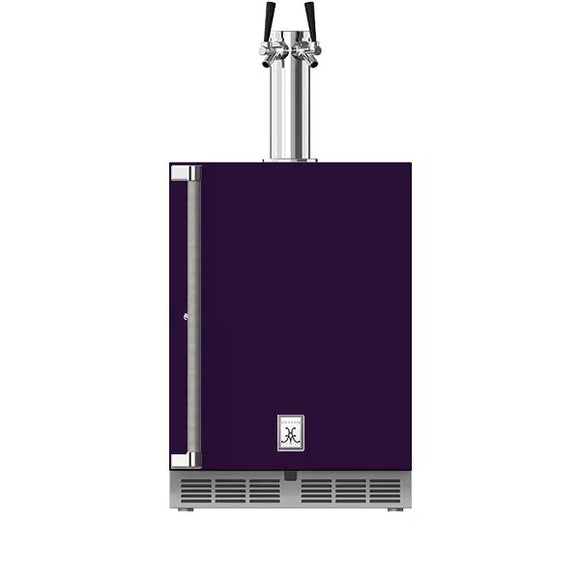

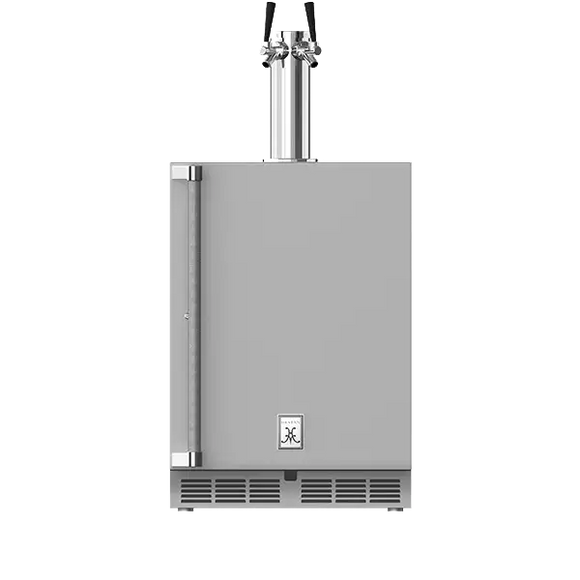

Hestan 24 Inch Outdoor Beer Dispenser with Solid Door and Lock

Serve two selections at your outdoor bar with the Hestan GFDSR242 / GFDSL242 double-faucet beer dispenser. Chilled keg storage and a lockable door keep the dispensing station together in a compact undercounter format.

Key Features

• Double faucets let you dispense two beverages from the same station.
• Digital temperature display and white or blue LED interior lighting.
• Lockable storage and front ventilation support a finished outdoor kitchen.

Specifications

• Models: GFDSR242 / GFDSL242; nominal width: 24 inches.
• Total storage capacity: 5.2 cubic feet.
• Refrigerated temperature range: 33–42°F.
• Keg capacity: one quarter barrel, one slim quarter barrel or two one-sixth barrels; verify the keg dimensions and dispensing setup.
• Electrical: 115V, 60Hz, single phase; rated current 2.3A.
• Select the listed finish and hinge location; L denotes left hinge and R denotes right hinge.

Dimensions

• Cabinet cutout: 24 inches W × 24 inches D × 34-3/8 inches H.
• These are opening dimensions. Include door or drawer travel, front ventilation and service access when planning the installation.

Compatibility & Installation

• Follow the model-specific installation manual for electrical grounding, circuit protection and leveling. Keep the front ventilation path unobstructed.
• Have the keg, gas-cylinder and dispensing-line installation completed to the beer-dispenser instructions. A cleaning kit and optional caster kit are separate accessories.

Manufacturer Resources

• Hestan refrigeration specifications
• Hestan beer dispenser installation manual
• Hestan manufacturer accessory catalog (2023, archived)
• Hestan Outdoor and Aspire product catalog (2026)
• Hestan customer support

Manufacturer contact: Hestan USA customer service, 888-905-7463. Have the exact model and serial number available when confirming fit or installation.
