SKU: SSVH-48

American Made Grills 48 Inch Vent Hood

$3,245.00

Shipping calculated at checkout

Available Now!
Description Features Specifications Included and Optional Items Dimensions Manual

Bring adjustable ventilation and task lighting to your outdoor cooking space with the American Made Grills 48 Inch Vent Hood. The legacy SSVH-48 combines a manufacturer-listed 1,200 CFM capacity with two blower motors and variable-speed controls. Three halogen lamps illuminate the cooking area, while removable baffle filters make routine cleaning straightforward.

  • Two blower motors with variable-speed control.

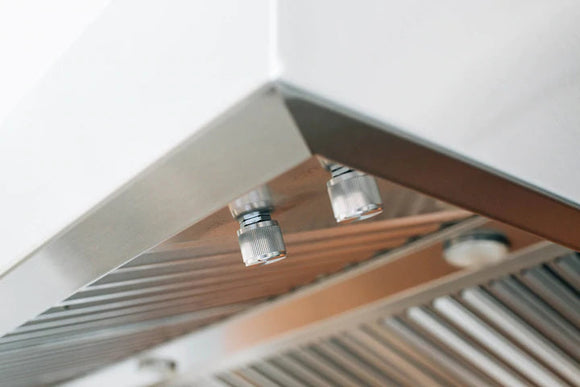

  • Three halogen lamps with a light dimmer.
  • Removable, dishwasher-safe baffle filters; follow the manufacturer's cleaning instructions.
  • Designed for residential use.
  • Model: SSVH-48.
  • Manufacturer-listed airflow: 1,200 CFM, from AMG's January 2024 model list.
  • Electrical supply: 115 volts.
  • The factory manual lists one transition collar for a 10-inch vent.

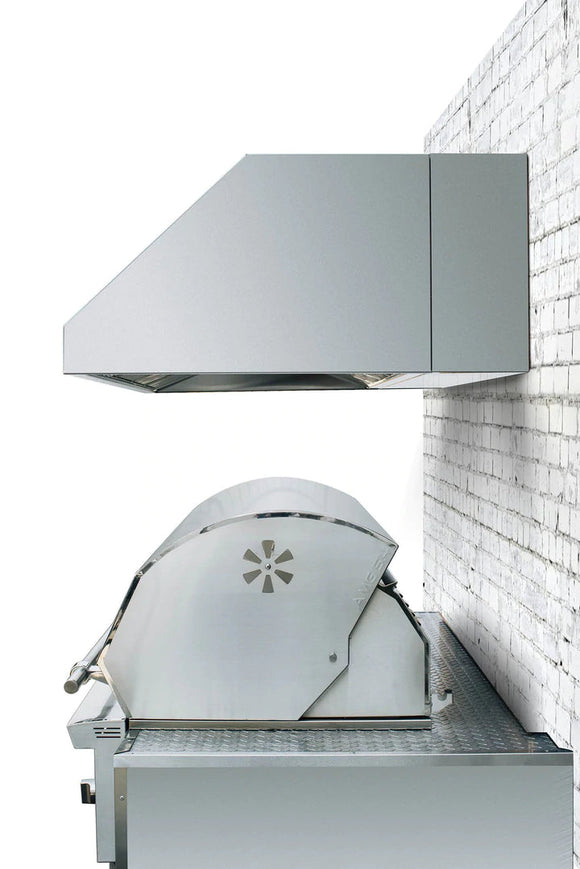

AMG's January 2024 model list includes a 1/2-inch mounting bracket with SSVH-48. The 4-inch and 8-inch spacer brackets and duct cover are separate accessories. Installation photos are illustrative and show a grill and additional installation components that are not part of the hood package.

  • Overall width: 48 inches.
  • Overall depth: 30 inches.
  • Overall height: 18 inches.

These dimensions and specifications apply to the legacy SSVH-48, not the newer VH48-2. Have a qualified installer confirm mounting, ducting and clearance requirements for your cooking appliance and installation. Overall dimensions do not replace the installation instructions.

Legacy SSVH Series Owner's Manual and Dimension Drawings (AMD Direct)
