SKU: BH458PSLD BC

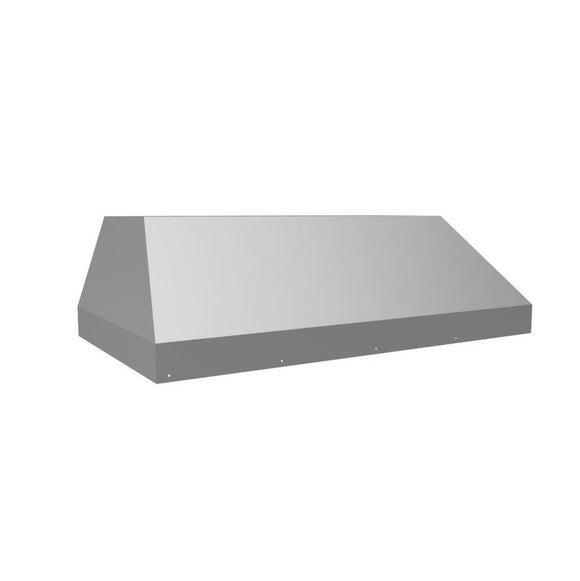

Vent A Hood 58 3/8 Inch 1200 CFM Wall Mount Liner Insert

$3,348.00

Shipping calculated at checkout

Color: Black Carbide
Black Carbide
Black
Biscuit
Gunsmoke
Stainless Steel
White

Available Now!

Bring focused ventilation and a coordinated finish to your cooking space with the Vent-A-Hood BH458PSLD professional-depth liner insert. Its 1200 CFM Magic Lung system and easy-care components make it a practical part of a thoughtfully planned kitchen.

Key Features

  • The deeper capture profile is designed for professional-style ranges and high-output cooking.
  • Magic Lung centrifugal filtration captures cooking grease without a conventional mesh or baffle filter.
  • SensaSource automatically adjusts blower speed as cooking heat changes.
  • Dishwasher-safe removable components simplify routine cleaning.
  • 4 LEDs provide 2700K warm-white task lighting.

Specifications

  • Base model: BH458PSLD; the selected finish determines the complete model number.
  • Rated actual airflow: 1200 CFM at 0.0 inches static pressure; installed airflow decreases as duct resistance increases.
  • High-speed sound rating: 6.6 Sones / 57.2 dB.
  • Electrical/blower rating: 115 V, 60 Hz, 7.5 A; 1550 RPM.
  • Minimum round duct: 12 inches when the outlets are properly combined.
  • Heat lamps are not available for this model.

Dimensions

  • Overall hood dimensions: 58 3/8″ W × 22 1/2″ D × 12″ H.
  • Recommended mounting height: 27–30 inches above the cooking surface.
  • Check the exact manufacturer connection drawing and enclosure opening before fabricating cabinetry.

Compatibility & Installation

  • Have a qualified installer verify the cooking appliance, hood coverage, duct route, mounting height and local make-up-air requirements.
  • Vent outdoors using smooth metal duct; do not use flexible or corrugated duct and do not reduce the required duct size.
  • The hood has two 8-inch outlets. Optional VP563 transition combines them to a 12-inch round duct; it is sold separately.

Manufacturer Resources

Manufacturer contact: Vent-A-Hood, 800-331-2492 or connect@ventahood.com. Have the exact hood model, finish and part number ready when confirming fit or arranging service.
