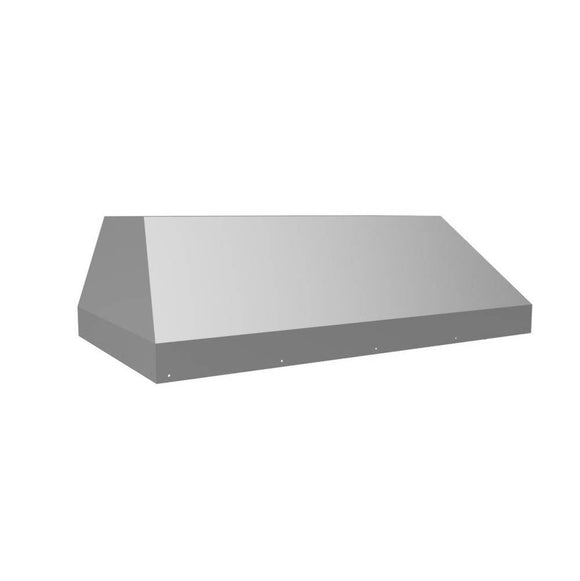

Bring focused ventilation and a coordinated finish to your cooking space with the Vent-A-Hood BH246PSLD professional-depth liner insert. Its 600 CFM Magic Lung system and easy-care components make it a practical part of a thoughtfully planned kitchen.
Key Features
- The deeper capture profile is designed for professional-style ranges and high-output cooking.
- Magic Lung centrifugal filtration captures cooking grease without a conventional mesh or baffle filter.
- SensaSource automatically adjusts blower speed as cooking heat changes.
- Dishwasher-safe removable components simplify routine cleaning.
- 3 LEDs provide 2700K warm-white task lighting.
Specifications
- Base model: BH246PSLD; the selected finish determines the complete model number.
- Rated actual airflow: 600 CFM at 0.0 inches static pressure; installed airflow decreases as duct resistance increases.
- High-speed sound rating: 6.5 Sones / 57 dB.
- Electrical/blower rating: 115 V, 60 Hz, 4.0 A; 1550 RPM.
- Minimum round duct: 8 inches.
- Heat lamps are not available for this model.
Dimensions
- Overall hood dimensions: 46 3/8″ W × 22 1/2″ D × 12″ H.
- Recommended mounting height: 27–30 inches above the cooking surface.
- Check the exact manufacturer connection drawing and enclosure opening before fabricating cabinetry.
Compatibility & Installation
- Have a qualified installer verify the cooking appliance, hood coverage, duct route, mounting height and local make-up-air requirements.
- Vent outdoors using smooth metal duct; do not use flexible or corrugated duct and do not reduce the required duct size.
Manufacturer Resources
Manufacturer contact: Vent-A-Hood, 800-331-2492 or connect@ventahood.com. Have the exact hood model, finish and part number ready when confirming fit or arranging service.
