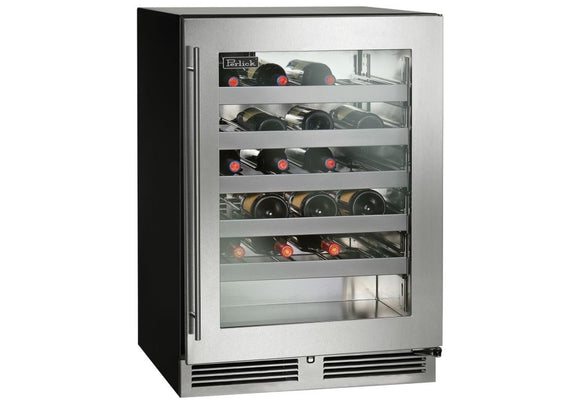

Perlick 24-Inch ADA-Height Compliant Indoor Wine Reserve

• Full-extension wine shelves on vibration-dampened, stainless steel ball-bearing glides.
• Stores up to 32 wine bottles; actual capacity depends on bottle size and arrangement.
• Digital temperature control with a 45–65°F setting range.
• Selectable blue or white LED interior lighting.
• Stainless steel interior for durability and easy cleaning.
• Front-vented refrigeration for undercounter installation.
• Audible alarm alerts you when the door is held open.
• 32-inch nominal cabinet height accommodates ADA-height counter designs.

• Model family: HA24WB-4.
• Application: indoor residential use only.
• Refrigerated volume: 4.8 cu. ft.
• Refrigerant: R600a.
• Electrical supply: 115 VAC, 60 Hz, single phase.
• Power connection: 6-foot cord with NEMA 5-15P three-prong plug.
• Choose a configuration with or without a factory-installed lock.
• Choose solid stainless steel, solid panel-ready, stainless-framed glass or panel-ready glass doors in the required hinge configuration.
• Panel-ready selections require a customer-supplied decorative panel; decorative panels shown in representative photos are not included.

• Manufacturer's nominal unit dimensions (W × D × H): 23-7/8 × 24 × 32 inches.
• Standard opening dimensions (W × D × H): 24 × 24-7/8 × 32-1/4 inches.

Use the exact-model installation drawing before finalizing cabinetry. Allow for the selected door or drawer front, handle, leveling adjustment, swing or drawer clearance, and electrical connection.
