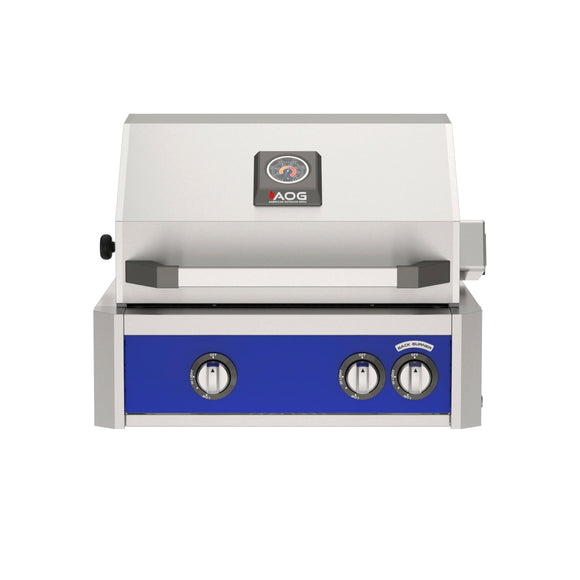

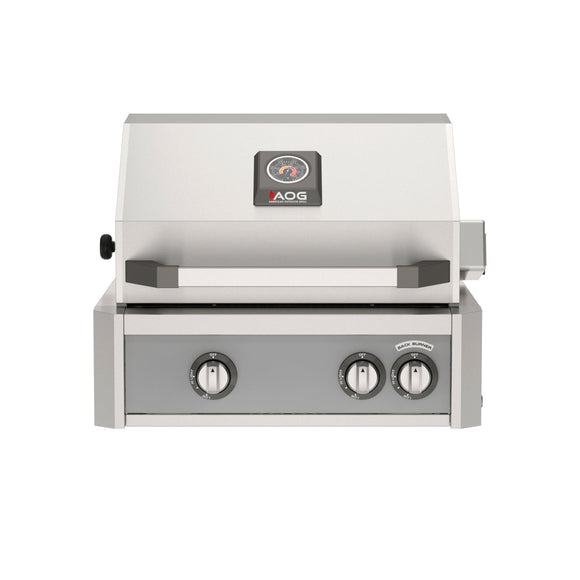

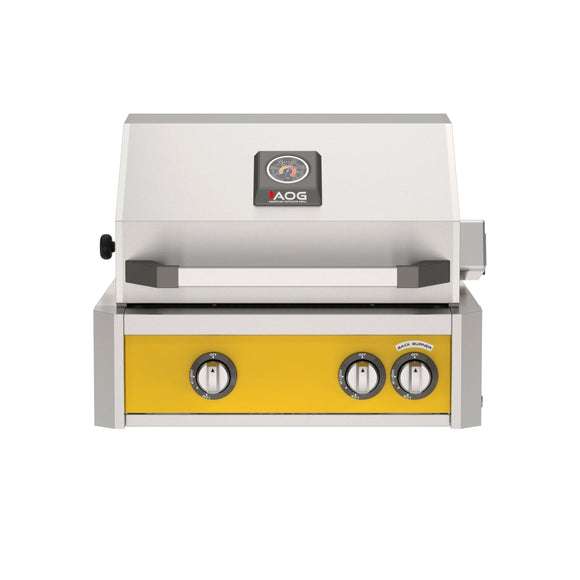

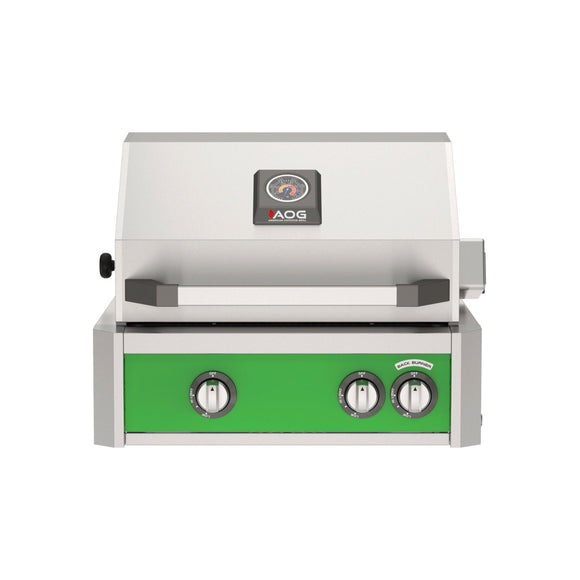

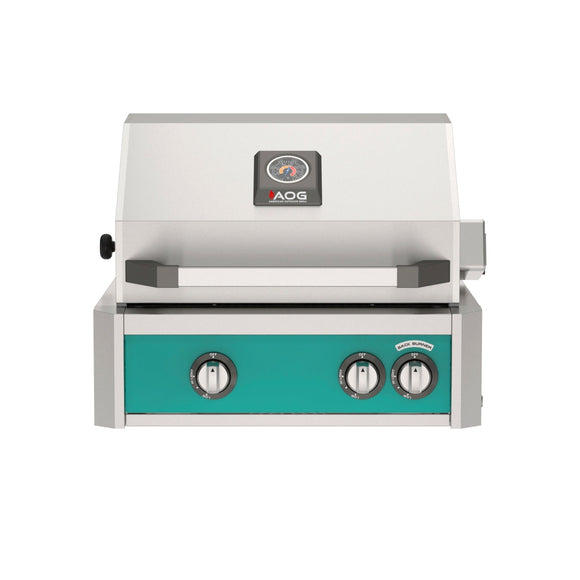

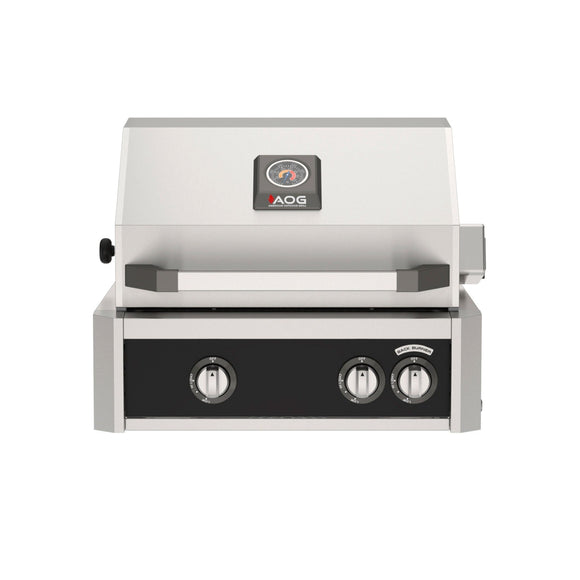

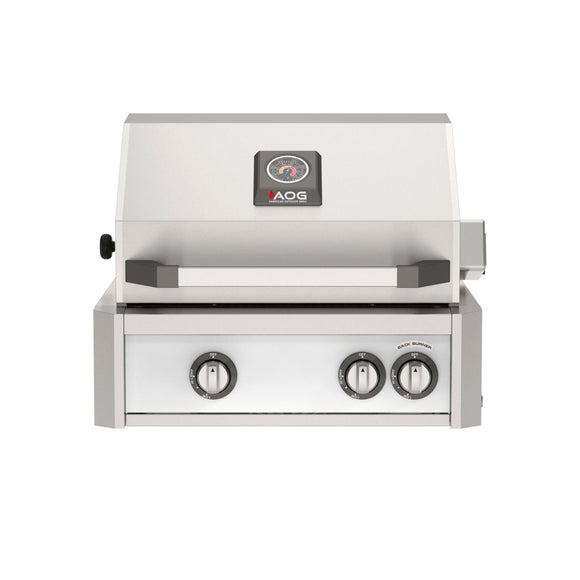

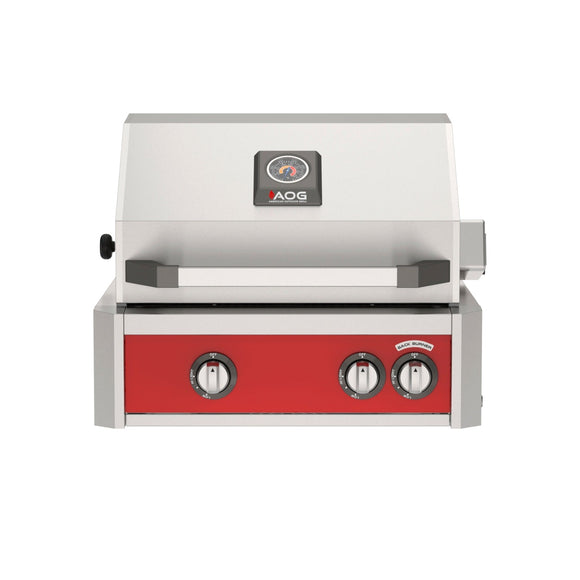

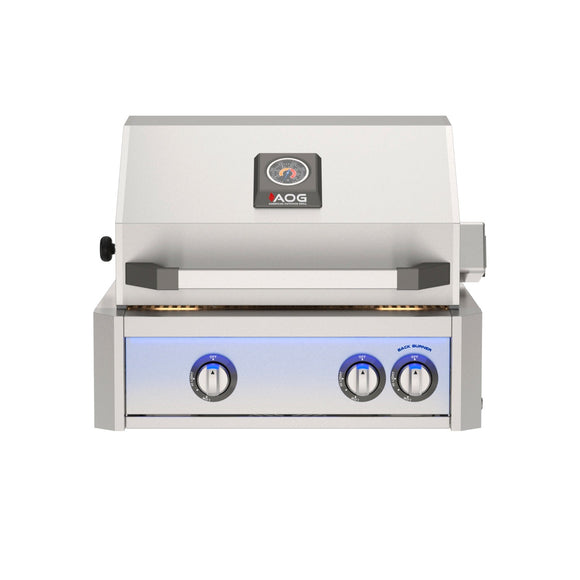

The American Outdoor Grill 24-Inch L-Series Built-In Grill brings current-generation lighting, rotisserie capability, and compact outdoor-kitchen performance together in a 432-square-inch platform. Choose natural gas or propane, then select the stainless control panel or an available accent-color panel option.
Key Features
- 432-square-inch primary cooking surface
- 32,000 BTU total primary input
- 10,000 BTU infrared backburner
- Rotisserie kit with spit rod, forks, and motor
- Diamond Sear 304 stainless steel cooking grids
- Heavy-duty 304 stainless steel tubular burners
- Flame Thrower ignition system
- Interior halogen lighting and external multi-color LED light bar
- Heavy-duty warming rack and redesigned vaporizer panels
- Spring-assisted hood
- Natural-gas and propane options; factory gas-conversion kit included
Specifications
- Manufacturer: American Outdoor Grill
- Series: Current L-Series
- Base Models: AOG24LN / AOG24LP
- Fuel Options: Natural Gas or Propane
- Primary Cooking Surface: 432 Square Inches
- Primary Input: 32,000 BTU
- Backburner Input: 10,000 BTU
- Electrical Requirement: 120 VAC
- Accent Panels: Stainless standard or selected color-panel option; confirm the selected variant's bundled components
Dimensions
- Overall Width: 27⅞ Inches
- Overall Depth: 25⅞ Inches
- Body Height: 14 Inches
- Overall Front Height: 22¼ Inches
- Required Cutout: 24½ Inches Wide x 19½ Inches Deep x 8½ Inches High
- Counter-Overhang Cutout Width: 28½ Inches
Installation Note
For outdoor built-in installation. Provide the required 120-volt power, gas supply, service access, enclosure ventilation, and noncombustible clearances. Use the 24-IL-C insulating liner when the grill is installed in a combustible enclosure with a noncombustible countertop. Verify fuel and accent-panel selections before ordering.
