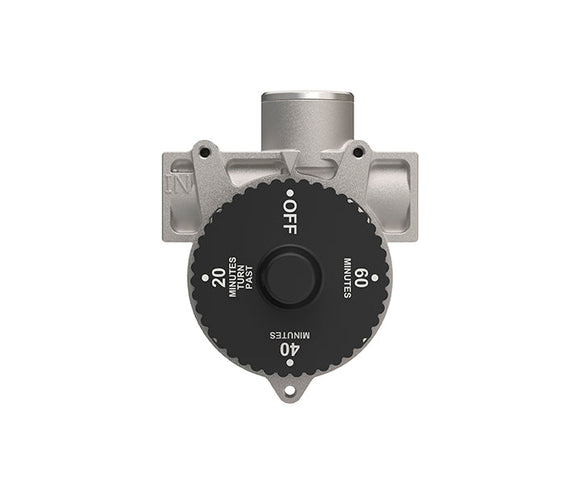

American Outdoor Grill Automatic Timer Gas Shut-off (1-hr)

Add a timed secondary safety control to a compatible outdoor gas appliance with the AOG 3092C automatic gas shut-off timer. Turn the dial for up to 60 minutes of gas flow; when the selected period expires, the timer closes automatically.

Key Features

• Exact factory model: 3092C
• Automatic secondary gas shut-off after the selected period
• Operating range from 20 to 60 minutes
• Dial marked in 20-minute increments; intermediate settings are estimates
• Supports natural gas or propane loads up to 100,000 BTU under AOG's published pressure conditions
• Does not require use as the appliance's primary manual shut-off valve

Specifications

• Manufacturer: American Outdoor Grill
• Product Type: Automatic gas shut-off timer
• Model: 3092C
• Timer Range: 20-60 minutes
• Connection Size: 1/2-inch NPT at both ends
• Maximum Working Pressure: 1/2 PSIG
• Published Capacity: Up to 100,000 BTU for natural gas or propane under the manual's stated pressure conditions
• Ambient Operating Range: 0°F to 175°F

Dimensions

Finished timer and package dimensions are not published in the official AOG resources reviewed.

Installation/Compatibility Note

A licensed and qualified professional must install the timer 18 inches to 6 feet from the appliance, in the direction of gas flow shown on the body. Protect it from appliance heat and outdoor elements. The 3092C is a secondary shut-off and must not replace the required primary gas shut-off valve. Follow the official manual for pressure, capacity, leak-test, and placement requirements.

Manufacturer Resources

• AOG 1-Hour Gas Timer Product Page
• R.H. Peterson 3092C Installation Instructions
• AOG Product Catalog
• Manufacturer Support — American Outdoor Grill consumer support: (800) 332-3973, Monday-Friday, 7:00 a.m.-4:00 p.m. Pacific.
