SKU: 36-IL-C

American Outdoor Grill Insulating Liners

$1,268.00

Shipping calculated at checkout

Size: 36 Inch

Available Now!

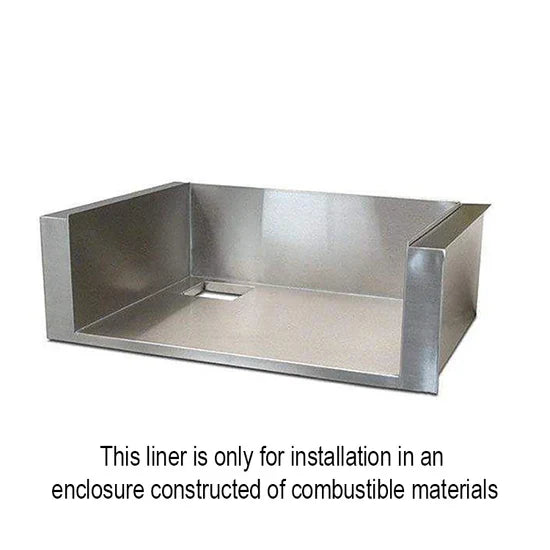

Prepare a combustible outdoor-kitchen enclosure for a compatible built-in American Outdoor Grill with a factory insulating liner. This listing offers the complete current AOG size range—24-IL-C, 30-IL-C, and 36-IL-C—each pre-assembled and supported from the countertop by integrated hangers.

Key Features

  • Three exact factory size options: 24-IL-C, 30-IL-C, and 36-IL-C
  • Designed for compatible 24-, 30-, or 36-inch AOG built-in grills
  • Permits the specified installation in a combustible enclosure with a non-combustible countertop
  • Pre-assembled construction with countertop-support hangers
  • Knockouts accommodate gas and applicable electrical feeds

Specifications

  • Manufacturer: American Outdoor Grill
  • Product Type: Built-in grill insulating liner
  • 24-Inch Model: 24-IL-C
  • 30-Inch Model: 30-IL-C
  • 36-Inch Model: 36-IL-C
  • Compatible Families: 24/30/36NB(L,T) and AOG24/30/36(L,T)(N,P), matched by size
  • Enclosure Application: Combustible enclosure with a non-combustible countertop

Dimensions

  • 24-IL-C Cutout: 9 inches high x 28 5/8 inches wide x 21 5/8 inches deep; flange-width cutout 29 5/8 inches
  • 30-IL-C Cutout: 9 inches high x 34 5/8 inches wide x 21 5/8 inches deep; flange-width cutout 35 5/8 inches
  • 36-IL-C Cutout: 9 inches high x 40 5/8 inches wide x 21 5/8 inches deep; flange-width cutout 41 5/8 inches

Installation/Compatibility Note

Select the liner by the exact grill size and model family. These are liner cutouts, not the smaller grill-only cutouts used in a fully non-combustible enclosure. Follow the liner and grill manuals together, provide required drainage and cross-ventilation, and use a qualified professional installer.
