Keep the Whole Meal Outdoors

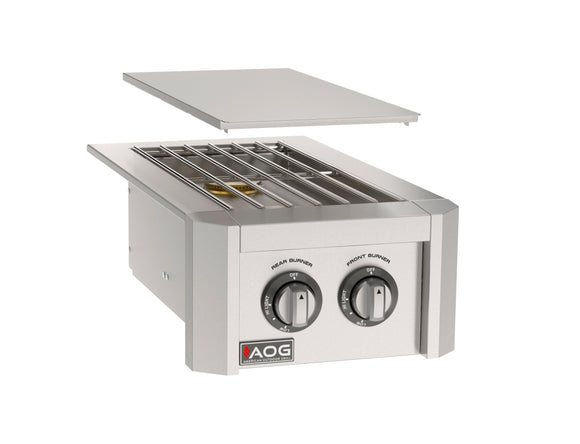

The American Outdoor Grill T-Series double side burner gives you two independently controlled burners for sauces, sides and small-pot cooking alongside your grill.
Features and Specifications
- Current manufacturer family: AOG2SBT
- Two heavy-duty brass burners, rated at 12,500 BTU per hour each
- Total output: 25,000 BTU per hour
- Stainless steel cooking grids and removable lid
- Flame Thrower ignition
- Die-cast alloy control bezels with a gunmetal finish
- No electrical connection or batteries required for operation
Dimensions and Installation
- Maximum appliance width: 15 5/8 inches
- Maximum appliance depth: 28 1/2 inches
- Height from the bottom of the hanger to the bottom of the unit: 8 inches
- Basic cutout for a non-combustible enclosure: 11 1/2 inches wide by 22 3/4 inches deep by 8 1/2 inches high
Cutout measurements are not overall appliance dimensions. Follow manual C2-771 for the applicable enclosure, countertop, ventilation and clearance requirements. Have a qualified installer verify the final opening and gas supply before fabrication.
Configuration confirmation required: The colored selections currently carry AO-2SB panel part numbers, not a fuel-specific complete side-burner model. Confirm the complete appliance, color-panel package and natural-gas or propane configuration with us before ordering. The specifications above describe the complete AOG2SBT appliance, not an accent panel by itself.
Resources
