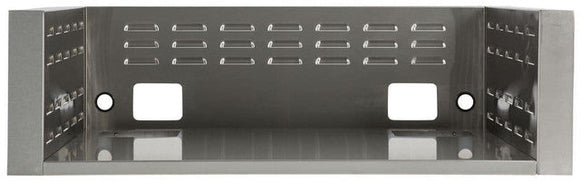

Coyote Power Burner Insulated Jacket

Build the compatible power burner into combustible construction with its matching Coyote insulated jacket.

Key Features

• CJAKTC1PB provides a stainless-steel insulated enclosure for the Power Burner application.
• The CJAKTC1PB jacket separates the Power Burner appliance body from combustible island materials.
• Coyote’s cutout and overhang dimensions for CJAKTC1PB support planning the Power Burner opening.

Specifications

• Manufacturer: Coyote
• Manufacturer model: CJAKTC1PB
• Accessory type: Insulated installation jacket
• Application: Power Burner
• Construction: Stainless steel

Dimensions

• Cutout: 11 in. H x 22 1/8 in. W x 21 7/8 in. D
• Overall: 11 in. H x 24 7/8 in. W x 22 3/4 in. D

Compatibility & Installation

Use CJAKTC1PB only with the Power Burner Coyote appliance. The jacket does not replace the ventilation, clearance, gas, electrical, or structural requirements in that appliance’s manual.

Manufacturer Resources

• Official Coyote insulated-jacket catalog
• Official Coyote 2020/2021 catalog
• Official Coyote full-line dimension sheet
• Coyote manuals and install guides
• Contact Coyote (855-520-1559)
