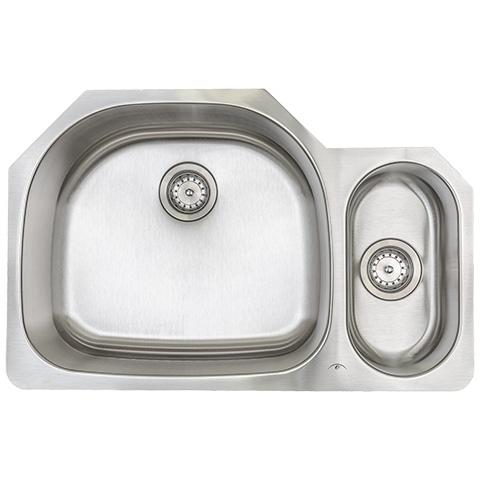

E-Stainless 16 Gauge, Offset Double Bowl

The E2Stainless 505 is a model-specific stainless-steel sink designed for a clean fitted installation with published bowl geometry for planning.

Key Features

• Rear-set 3 1/2″ drain openings
• Padded and undercoated to reduce operating noise and help control condensation

Specifications

• Model/SKU: M505
• 16-gauge 304 18/10 stainless steel with a brushed satin finish

Dimensions

• Inside dimensions: Large bowl 18 3/4″ x 21 3/8″, Small bowl 14 5/8″ x 7 5/8″
• Outside dimensions: 21″ x 32 1/8″
• Bowl depths: Large bowl 9″, Small bowl 5 1/2″

Compatibility & Installation

• Reverse configuration available
• Mounting hardware and a cutout template are included

Manufacturer Resources

• Official E2Stainless product page
• 505 Technical Drawing
• 505 CAD DXF
• Official installation and DXF guidance
• E2Stainless support — 800-477-2217.
