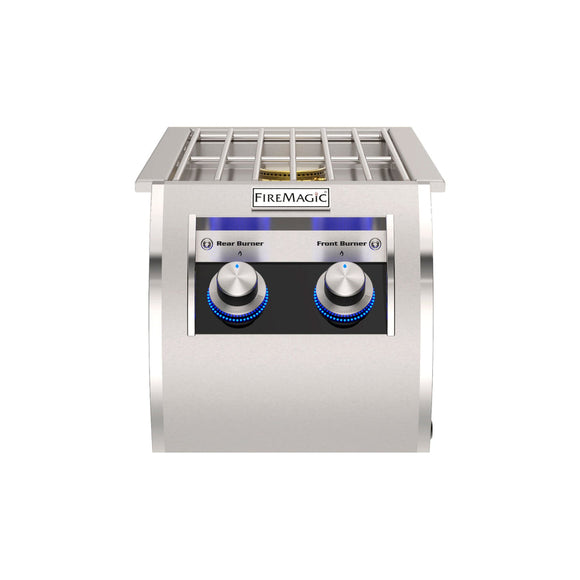

Give sauces and side dishes their own cooking space with the Fire Magic Echelon Diamond 32816 built-in double side burner. Two separately controlled burners and a black glass front panel make it a coordinated companion to an Echelon island grill.
Key Features
- Two independently controlled 15,000 BTU/hr burners
- Black glass control-panel styling
- Hot-surface ignition
- Built-in configuration for an outdoor kitchen
Specifications
- Manufacturer: Fire Magic / RH Peterson
- Models: 32816 natural gas; 32816P propane
- Combined burner output: 30,000 BTU/hr
- Power supply input: 100–240 VAC, 1.90 A maximum, 50/60 Hz, GFCI outlet
- Appliance rating: 13 VDC/156 W
Dimensions
- Non-combustible cutout: 11 1/2 in W x 22 3/4 in D x 11 1/2 in H
- Combustible enclosure opening: 12 1/4 in W x 23 1/4 in D x 11 1/2 in H, with all specified air gaps and a non-combustible countertop
- Hanger width: 13 1/4 in; maximum depth: 27 7/8 in; top-of-hanger to unit bottom: 12 in
- Countertop-overhang control-panel opening: 12 1/2 in W
Compatibility & Installation
- Outdoor use only; have a qualified technician install the correct gas version and complete leak testing.
- Follow current 32816 instructions for power supply, ventilation, clearances and air gaps. Earlier 32815 specifications are not interchangeable.
- Keep the lid open during use and allow the burner to cool before covering.
