SKU: E1060i-9E1N

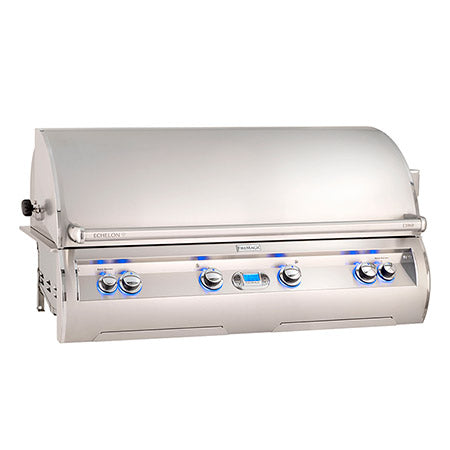

Fire Magic Echelon Diamond E1060i 48-Inch Built-In Gas Grill — Analog or Digital

$12,575.00

Shipping calculated at checkout

Thermometer: Digital Thermometer
Fuel Type: Natural Gas
Burner & Window Configuration: All Conventional / Without Magic View Window

Available Now!
Description Why It Works Specifications Choose the Right Configuration Installation & Planning Manufacturer Resources

The Echelon Diamond E1060i is Fire Magic’s statement-size built-in grill: a 48 × 22-inch primary surface, four-zone cooking power, dual rear burners, and SKU-level choices for controls, searing, fuel, and a Magic View window. It is built for buyers who routinely cook for a crowd and want premium nighttime and connected-control options.

  • 112,000-BTU main system: Four cast stainless steel E-burners create a wide, controllable cooking platform.
  • Dual 11,000-BTU rear burners: Support the included rotisserie configuration across the extra-wide grill.
  • Analog or digital control: Choose a classic thermometer or Fire Magic’s touchscreen platform with connected monitoring features.
  • Optional left infrared sear burner: Factory L variants add concentrated searing heat while retaining conventional zones.

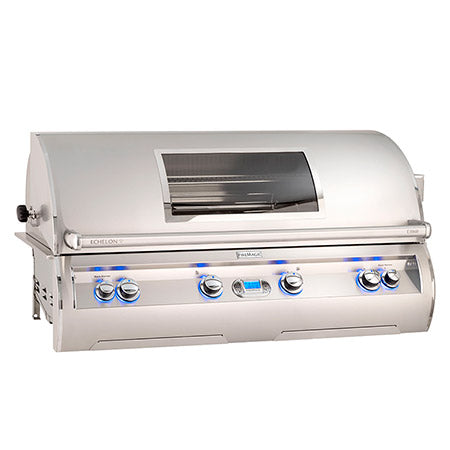

  • Optional Magic View window: -W models provide a view under the hood without lifting it.
  • Premium visibility: Hot-surface ignition, backlit controls, and interior lighting support evening cooking.
  • Primary cooking surface: 48 in. W × 22 in. D (1,056 sq. in.)
  • Warming rack: 48 in. W × 8 in. D
  • Main burner output: 112,000 BTU
  • Rear-burner output: 22,000 BTU total (two 11,000-BTU burners)
  • Built-in cutout: 50 in. W × 23½ in. D × 11½ in. H
  • Fuel choices: Natural gas or propane
  • Electrical requirement: 120 VAC
  • Compatible insulating liner for combustible enclosures: 3185-52

SKU codes define the appliance: 9E1/9L1 are digital-control models; 9EA/9LA are analog. L adds the left infrared sear burner; E keeps all conventional burners. -W adds the Magic View window, and final N/P specifies natural gas or propane.

This is a large, high-input appliance. Confirm the exact SKU, gas-line capacity, electrical service, ventilation, rotisserie clearances, enclosure construction, and delivery path before ordering. Use liner 3185-52 where required and build only from the current SKU drawing. Fire Magic’s published warming-area arithmetic is internally inconsistent, so no calculated total-cooking-area claim is used here.

Fire Magic Catalog | Echelon Brochure | Product Specifications Guide | Insulating Liner
