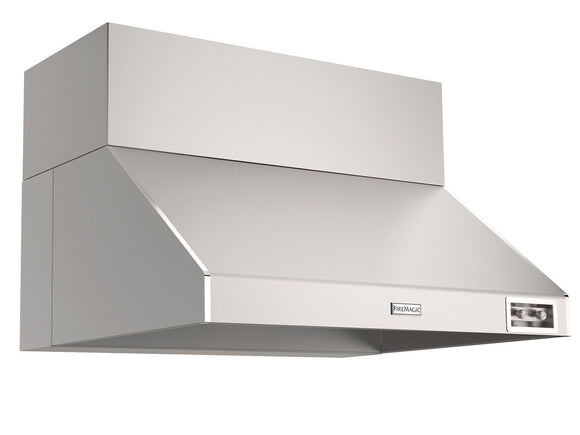

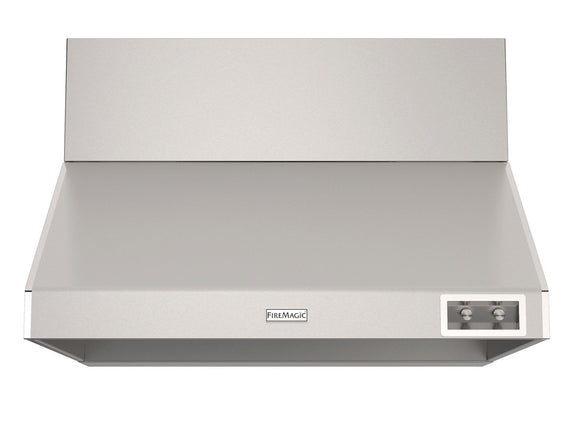

Bring focused ventilation to your covered outdoor cooking area with the Fire Magic 42-VH-7 hood. Its 42-inch-wide body, adjustable fan controls and cooking lights work together above a properly planned Fire Magic grill installation.
Key Features
- Dual-fan ventilation rated at 1,200 CFM total
- Separate fan and light controls
- Two 120 V, 50 W halogen cooking lights
- Removable grease filters
Specifications
- Manufacturer: Fire Magic / RH Peterson
- Model: 42-VH-7
- Electrical supply: 120 VAC, 60 Hz; 15 A minimum grounded GFCI circuit
- Rated power consumption: 1,010 W
- Duct transition outlet: 10-inch diameter
Dimensions
- Hood body: 42 in W x 30 in D x 18 in H
- Transition: 21 3/4 in W x 9 in D x 10 in H
- Hood-body dimensions exclude the transition. Spacer and duct cover are not included.
Compatibility & Installation
- Manufacturer sizing table specifies 42-VH hoods for grills up to Aurora A660 and Echelon E660 size grills; verify your exact grill model and installation layout.
- For non-combustible construction and ducted outdoor exhaust only. Have a qualified installer follow the complete hood and grill manuals for mounting height, ventilation, clearances and electrical requirements.

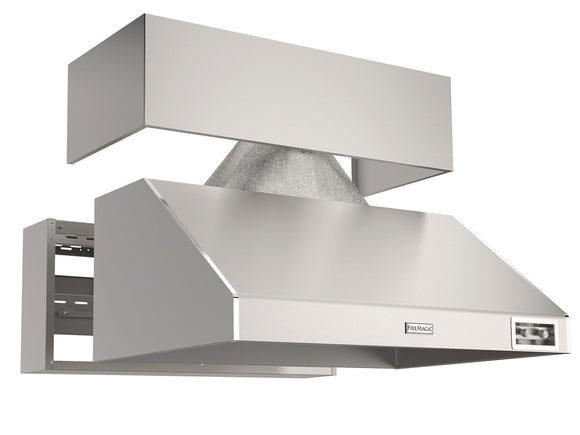

- Use matching VH-7 spacer and duct-cover accessories if required; these are sold separately.
