Infratech CD-3024 33-Inch 3,000W Dual-Element Electric Patio Heater, 240V

• Model: CD-3024 SS; 3,000 watts, 240 volts, 12.5 amps.
• Dual-element heater in standard 304 stainless steel; this listing is the stainless-steel finish, not a powder-coated color or optional 316 marine upgrade.
• Heater body: 33 inches long × 8-3/16 inches wide × 2-1/2 inches deep, excluding mounting brackets and junction-box projection. Consult the factory drawing for the complete installed envelope.
• Standard wall/ceiling swivel mounting brackets are included. Controls, specialized mounting accessories and branch-circuit materials are sold separately.
• For wall or ceiling surface mounting; specialized pole/drop-pole hardware requires separate project-specific selection. C/CD-Series heaters are not compatible with W/WD flush-mount frames.
• Use a properly rated duplex/stack switch or compatible Infratech custom control selected for the heater load; controls are sold separately.

• This permanently installed heater must be hardwired and serviced by a licensed electrician. Match the site voltage to the heater rating label and follow NEC and local codes; outdoor wiring components must have a minimum IPX4 rating.
• For surface mounting, maintain at least 6 inches behind the heater, 18 inches from its sides and ends, and 36 inches in front.
• Wall mounting requires at least 12 inches below the ceiling and a downward angle of 30–60 degrees. Ceiling mounting requires at least 6 inches below the ceiling and a maximum 30-degree angle. Minimum floor clearance is 6 feet for a UL-labeled heater or 8 feet for a UL/CUL-labeled heater. Follow the complete manual, rating label and installation-specific instructions.
• Keep the quartz tube horizontally level. Coverage varies with mounting height, exposure and wind; a planning estimate is not a guaranteed heated area.
• Do not leave powered heaters unattended. Disconnect power and let the heater cool completely before cleaning; dry it fully before restoring power.

Manufacturer product guidance · Reference manual · Installation, use and care manual · Dimensions and electrical drawing

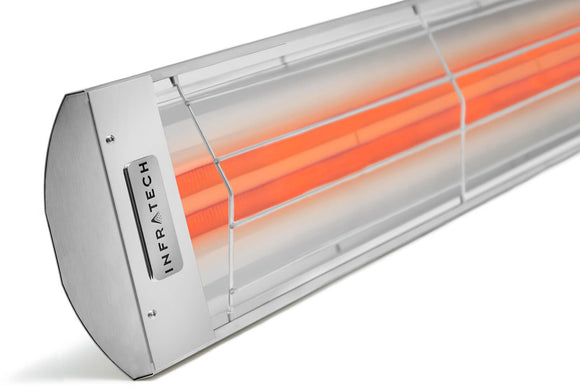

The gallery shows a manufacturer stainless-steel heater detail, not a full-length view. Refer to the listed body dimensions and model-specific manufacturer drawing for size.
