SKU: 13 1246BL

Infratech Black Drop-Pole Mount Assembly for C/CD-Series Heaters (13-1246BL)

$409.00

Shipping calculated at checkout

Available Now!
Description Product Highlights What Is Included Dimensions and Adjustment Planning Official Infratech Resource

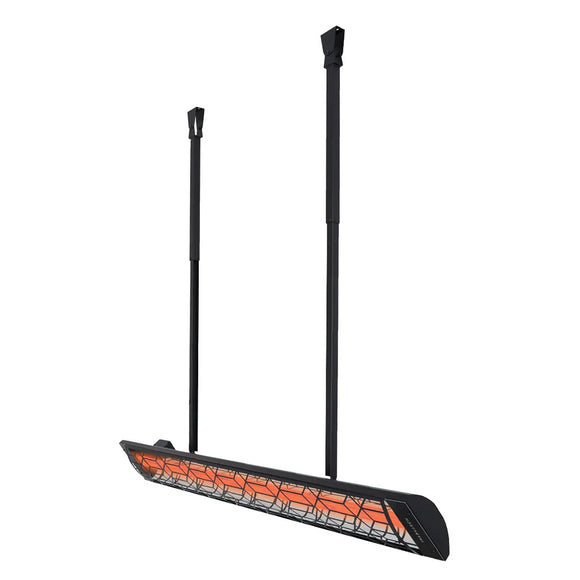

Lower a compatible Infratech C-Series or CD-Series heater from a high, vaulted or uneven ceiling with the black 13-1246BL drop-pole mount assembly. It helps position the heater at a more effective mounting height while allowing the fixture to be aimed for the planned comfort zone.

  • Drop-pole assembly for compatible C-Series and CD-Series heaters
  • Black finish
  • Part number: 13-1246BL
  • Designed for outdoor-comfort projects with high or uneven ceilings
  • Drop-pole mounting assembly only
  • Heater, controls, branch-circuit wiring, structural attachment hardware and installation labor are not included unless stated
  • Manufacturer C/CD drop-mount drawing specifies an adjustable 29–72-inch extension.
  • At least 6 inches of the channel must remain inside the down tube; set the length before running power or conduit.
  • Upper assembly can rotate 90 degrees for an alternate mounting position.
  • Confirm heater model, mounting height, aiming direction, heat coverage, ceiling structure, clearances and electrical load before ordering
  • This is not a general extension bracket and is not the W/WD-Series freestanding pole mount
  • Use qualified structural and electrical installers and follow current Infratech instructions and local codes

View Infratech installation and specification resources

Official C/CD drop-mount assembly drawing

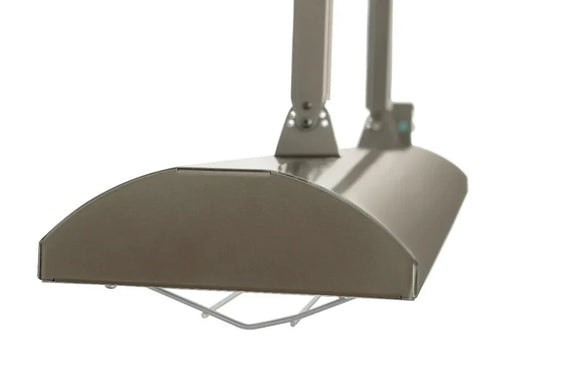

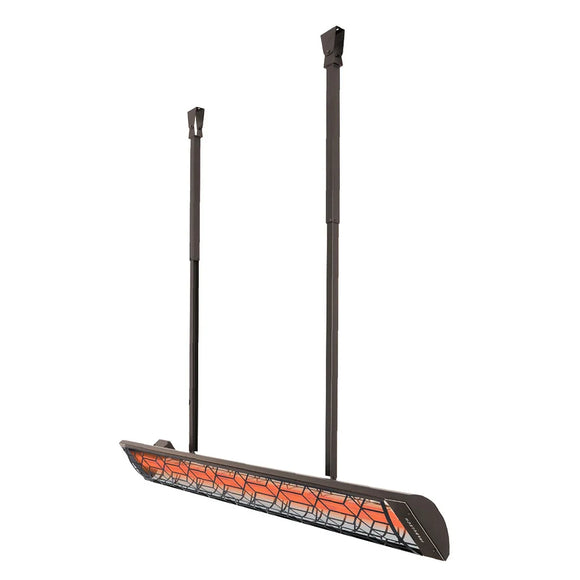

This listing is the black drop-pole assembly. Gallery images in white and bronze illustrate other finishes; pictured heaters are sold separately.
