SKU: HP15RS-4-5

Perlick 15 Inch Signature Series Indoor Refrigerated Drawers

$5,320.00

Shipping calculated at checkout

Drawers: Solid Stainless Steel

Available Now!
Description Features Specifications Dimensions and Installation Choose Your Configuration Warranty Manufacturer Resources

Bring convenient cold storage to your kitchen or home bar with Perlick 15-inch Signature Series refrigerated drawers. Two pull-out compartments make it easy to reach ingredients and refreshments, while the 2.8-cubic-foot cabinet fits a compact undercounter space. Choose stainless steel drawer fronts or a panel-ready configuration to suit your design.

  • Two smooth-gliding, self-closing refrigerated drawers keep drinks, produce and meal-prep ingredients within easy reach.
  • Stainless steel interior and exterior with LED lighting and a digital temperature controller.
  • An audible alarm helps alert you when a drawer is left open.
  • Front ventilation supports undercounter installation when the grille and required clearances are kept open.
  • R600a refrigerant and automatic off-cycle defrost.
  • Designed for indoor use. This model does not include the outdoor Anti-Condensation System or Marine & Coastal Perlick Armor protection.
  • Model family: HP15RS-4 refrigerated drawers.
  • Net internal volume: 2.8 cubic feet.
  • Operating-manual temperature range: 33°F–42°F. Both drawers are refrigerated; this is not a refrigerator/freezer combination.
  • Electrical supply: 115 VAC, 60 Hz, single phase.
  • The exact-model specification sheet lists a 1.7-amp running load. Follow the appliance rating label and installation instructions for electrical requirements.
  • 6-foot grounded cord with a NEMA 5-15P plug; no plumbing connection required.
  • Manufacturer-listed shipping weight: 150 pounds.
  • Manufacturer-rated cooling capacity: 1,000 BTU per hour.
  • Cabinet dimensions in the manufacturer drawing: 14⅞ inches wide × 24 inches deep (± ¹⁄₁₆ inch) × 34⁵⁄₁₆ inches high, before handle projection and leveling adjustment.
  • Standard handle projection: 1⅜ inches. Custom drawer panels and pulls can change finished depth.
  • Leveling feet can add up to ¾ inch to the drawing height.
  • Current installation-manual opening: 15 inches wide × 24 inches deep × 34⅜ to 35½ inches high. The model specification sheet also shows a 24⅞-inch-deep standard opening. A 24-inch installation depth requires locating the electrical connection beside the installation cavity.
  • Allow 25 inches in front for full drawer access. Install on a level surface and keep the front ventilation grille unobstructed.

Use a properly grounded 15-amp outlet and install the supplied anti-tip brackets for a stationary installation. Confirm the actual appliance, custom fronts, handles and outlet location before finishing cabinetry. Optional caster installations require their own manufacturer instructions.

Stainless steel drawer models use manufacturer finish code 5. Panel-ready drawer models use finish code 6 and require custom panels and handles supplied by you or your cabinetmaker; these are not included. Follow the linked drawer-panel template, which applies to orders entered on or after January 1, 2016.

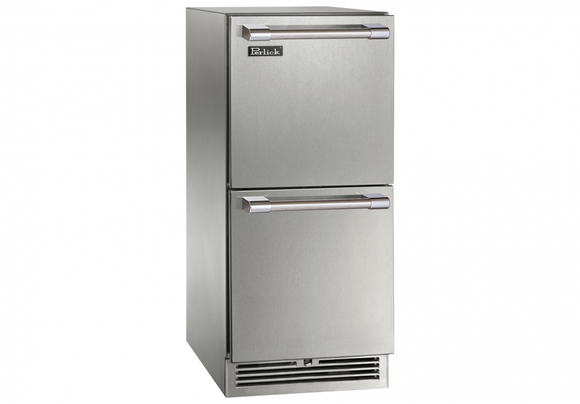

This listing is the version without a factory-installed drawer lock. The representative image shows stainless steel drawer fronts; your selected finish and lock configuration determine the supplied model.

Perlick publishes a six-year limited residential parts-and-labor warranty for eligible new undercounter units. Production-date eligibility, original-purchaser registration, time limits and exclusions are governed by the linked manufacturer warranty statement.
