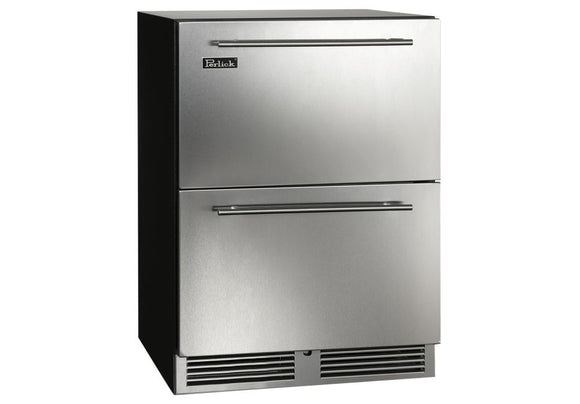

Keep ingredients and refreshments close at hand with Perlick 24-inch C-Series refrigerated drawers. Two pull-out compartments and 5.2 cubic feet of cold storage bring convenient organization to your kitchen or home bar.
- Cabinet dimensions in the manufacturer drawing: 23⅞ inches wide × 24 inches deep (depth tolerance ± ¹⁄₁₆ inch) × 34⅜ inches high.
- The summary specification table rounds the cabinet to 23⅞ × 24 × 34¼ inches; use the detailed drawing for final cabinet planning.
- Standard handle projection: 1⅜ inches. Custom panels and pulls can change finished depth.
- Adjustable leveling feet can add up to ¾ inch; measure the installed unit rather than treating cabinet height as fixed.
- The current installation manual specifies an opening 24 inches wide × 24 inches deep × 34⅜ to 35½ inches high. The model specification sheet separately lists a standard opening 24 × 24⅞ × 34½ inches. A 24-inch installation depth requires the electrical connection beside the installation cavity.
- Allow 25 inches of clear space in front for full door swing or drawer access. The door must open at least 90°; use the installation manual’s corner-filler requirements where applicable.
Use a properly grounded 15-amp outlet and install the supplied anti-tip brackets for stationary installations. Keep the front grille unobstructed, level the cabinet and support countertops independently. Optional casters follow separate installation instructions.
Stainless steel drawer fronts use finish code 5; panel-ready drawer fronts use code 6. Panel-ready selections require custom panels and handles supplied by you or your cabinetmaker; decorative wood panels shown in photos are not included. Follow the linked panel template, which applies to orders entered on or after January 1, 2016.
This listing is supplied without a factory-installed lock. The DL suffix identifies locking drawers. Photos are representative; your selected finish, lock option determine the supplied configuration.
For eligible new HP and HC undercounter refrigeration produced January 4, 2021 or later, Perlick publishes a limited six-year parts-and-labor warranty, capped at 75 months after shipment from Perlick. Coverage is for the original purchaser, requires proper registration and is subject to installation, care, cosmetic-coverage limits and other exclusions in the linked warranty statement. Floor models follow separate terms.
