Perlick 24 Inch Signature Series Indoor Dual Zone Wine Cooler With Lock

• Two independently controlled wine-storage zones keep reds and whites at different temperatures in one cabinet.
• Full-extension wine shelves travel on vibration-dampened stainless steel ball-bearing glides for easy access.
• Stainless steel interior and exterior; selectable white or blue LED lighting.
• Digital temperature controls, an audible door-ajar alarm and automatic off-cycle defrost.
• R600a refrigerant and a manufacturer-rated 1,000-BTU-per-hour cooling capacity.
• Designed for indoor use. This model does not include the outdoor Anti-Condensation System or Marine & Coastal protection.
• Factory-installed door lock included in every configuration on this listing.

• Model family: HP24DS-4; indoor dual-zone wine reserve.
• Net cabinet volume: 5.2 cubic feet.
• Manufacturer-rated capacity: up to 32 wine bottles, with 14 in the upper zone and 18 in the lower zone. Bottle size and arrangement affect actual capacity.
• Operating-manual temperature ranges: upper zone 51°F–65°F; lower zone 45°F–55°F.
• Electrical supply: 115 VAC, 60 Hz, single phase; manufacturer-listed running load 2.0 amps.
• 6-foot grounded cord with NEMA 5-15P plug; no plumbing connection required.
• Shipping weight: 222 pounds.

• Cabinet dimensions in the manufacturer drawing: 23⅞ inches wide × 24 inches deep (± ¹⁄₁₆ inch) × 34⁵⁄₁₆ inches high, before handle projection and leveling adjustment.
• Standard door-handle projection: 1⅜ inches. Custom panels and pulls can change finished depth.
• Leveling feet can add up to ¾ inch to the drawing height.
• Current installation-manual rough opening: 24 inches wide × 24 inches deep × 34⅜ to 35½ inches high. The model specification sheet provides a 24⅞-inch-deep standard opening; achieving a 24-inch installation depth requires locating the electrical connection beside the installation cavity.
• Use at least a 3-inch filler in corner installations and allow 25 inches in front for door swing and full shelf access.

Keep the front grille unobstructed, with at least 2 inches of air space in front of the condenser. Use a properly grounded 15-amp outlet and install the supplied anti-tip brackets as directed. Confirm the actual appliance, outlet location, leveling adjustment and door treatment before completing cabinetry.

Choose a solid stainless steel door, solid panel-ready door, stainless steel glass door or panel-ready glass door, with a left- or right-hand hinge. Stainless steel door models include their factory panel and handle. Panel-ready models require a custom panel and handle supplied by you or your cabinetmaker; these are not included. Follow the appropriate manufacturer template. Choose the factory hinge direction when ordering: reversal requires the proper Perlick hinge kit and is not recommended for an existing custom wood overlay.

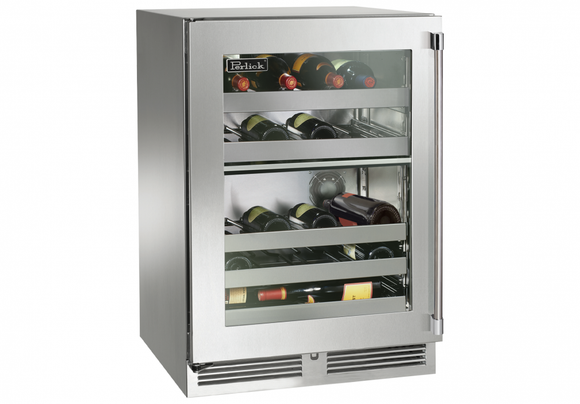

The representative image shows the stainless steel glass-door version. Door finish, hinge direction and lock details depend on your selected configuration. Wine shown is for display and is not included.

Perlick publishes a six-year limited residential warranty for eligible new units. Production-date eligibility, registration requirements, coverage periods and exclusions are governed by the manufacturer warranty statement.

• HP24DS manufacturer product information
• Exact model specifications, configuration codes and dimensional drawing
• Current installation and operating instructions
• Use, care and seasonal maintenance guide
• Solid custom-panel template
• Glass custom-panel template
• Door reversal instructions and required hinge kits
• Residential warranty terms
