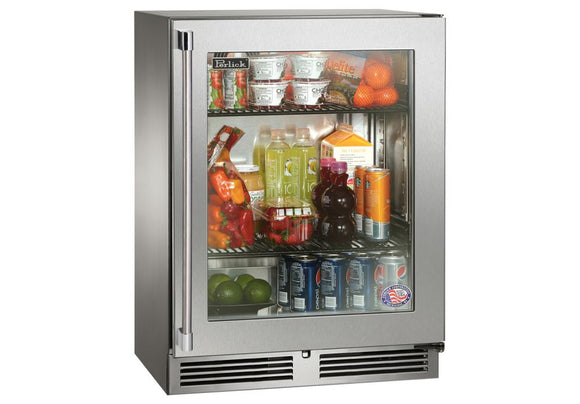

Perlick 24-Inch Signature Series Shallow Depth Indoor Refrigerator

• Full-extension refrigerator shelves ride on stainless steel ball-bearing glides.
• Digital temperature control with a manufacturer-listed 33–48°F setting range; factory setting is 36°F.
• Selectable blue or white LED interior lighting.
• Stainless steel interior for durability and easy cleaning.
• Front-vented refrigeration for undercounter installation.
• Audible alarm alerts you when the door is held open.
• Storage for up to 68 12-ounce cans; actual capacity depends on container size and arrangement.
• 32-inch nominal cabinet height accommodates ADA-height counter designs.

• Model family: HH24RS-4.
• Application: indoor residential use.
• Refrigerated volume: 3.1 cu. ft.
• Refrigerant: R600a.
• Electrical supply: 115 VAC, 60 Hz, single phase.
• Power connection: 6-foot cord with NEMA 5-15P three-prong plug.
• Configurations on this listing are supplied without a factory-installed lock.
• Choose solid stainless steel, solid panel-ready, stainless-framed glass or panel-ready glass doors in the required hinge configuration.
• Panel-ready selections require a customer-supplied decorative panel; decorative panels shown in representative photos are not included.

• Manufacturer's nominal unit dimensions (W × D × H): 23-7/8 × 18 × 32 inches.
• Standard opening dimensions (W × D × H): 24 × 18 × 32-1/4 inches.

Use the exact-model installation drawing before finalizing cabinetry. Allow for the selected door or drawer front, handle, leveling adjustment, swing or drawer clearance, and electrical connection.

Perlick HH24RS model specification sheet

Perlick official model information

Perlick residential undercounter installation instructions

Perlick residential undercounter use and care guide
