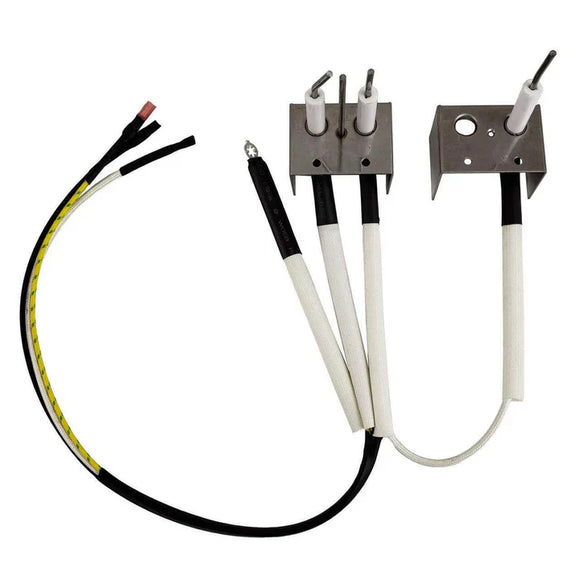

Bromic Platinum Smart-Heat™ 500 Series Wiring Harness & Ignition Assembly Honeywell

Replace the ignition wiring assembly in a Platinum Smart-Heat Gas 500 Series heater with the matching Bromic Honeywell service component.

Key Features

• Combined wiring harness and ignition assembly
• Honeywell-system service part
• Sized for the Platinum 500 Series

Specifications

• Manufacturer: Bromic Heating
• Bromic part number: BH8080011-1
• Component type: wiring harness and ignition assembly

Dimensions

• Bromic does not publish a standalone dimensional drawing for this service component; confirm fit by exact part number.

Compatibility & Installation

• For Platinum Smart-Heat Gas 500 Series heaters.
• Confirm the exact heater and control configuration before installation.
• Qualified gas/electrical service and post-installation safety checks are required.

Manufacturer Resources

• Bromic 2025 retail price sheet
• Platinum Smart-Heat Gas manual
• Bromic Heating contact
• Bromic Heating support: 1-800-301-1293; use the contact link above for current service guidance.
