Scotsman 15-Inch Brilliance Gourmet Ice Maker — Stainless Steel or Panel Ready

• Produces firm, clear gourmet cubes—not chewable nugget ice.
• Up to 65 lb. of ice in 24 hours at 70°F air and 50°F water; actual production varies with operating conditions.
• 26 lb. insulated storage bin with LED illumination.
• User-friendly controls show power status, a no-water condition and a cleaning reminder.
• Articulating hinge system and field-reversible door.
• Gravity-drain and built-in-pump configurations available; select the drain type appropriate for your installation.

• SCCG50MB-1SU: unfinished panel-ready front, gravity drain, indoor use.
• SCCP50MB-1SU: unfinished panel-ready front, factory drain pump, indoor use.
• SCCG50MB-1SS: stainless-steel cabinet and finished stainless-steel door, gravity drain, indoor or permitted outdoor use.
• SCCP50MB-1SS: stainless-steel cabinet and finished stainless-steel door, factory drain pump, indoor or permitted outdoor use.

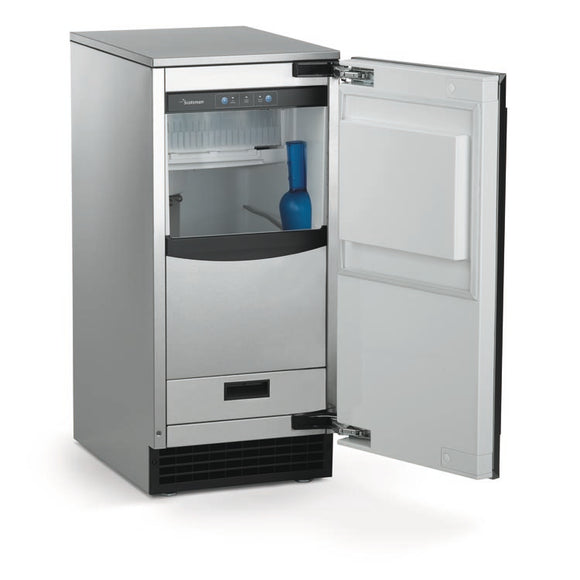

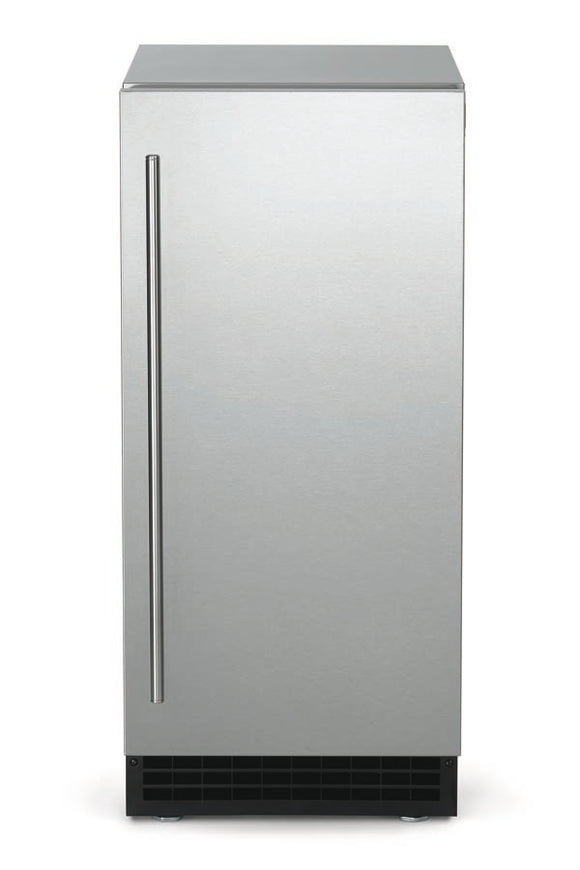

Panel-ready models require a separately supplied decorative panel or compatible manufacturer door-front kit. Custom panels must not exceed 15 lb.; follow the linked template for thickness, height and attachment. Photos illustrate the stainless-steel configuration. Custom panels, door-front kits and display contents are not included.

• Air-cooled condenser; R-134a refrigerant.
• Electrical: 115V, 60 Hz, single phase; 5 amps. A dedicated 15-amp circuit is required.
• Operating air temperature: 50–100°F.
• Water temperature: 40–100°F; water pressure: 20–80 PSIG. Connect to cold, potable water.
• Gravity models require a continuously draining installation and a field-supplied ⅝-inch-ID drain tube. Pump models include a ⅜-inch-ID discharge tube; the manufacturer lists a 10-foot tube.
• Water supply line is not included. Both water and drain connections are required.
• Shipping weights: SCCG50MB-1SU, 113 lb.; SCCP50MB-1SU, 118 lb.; SCCG50MB-1SS, 122 lb.; SCCP50MB-1SS, 127 lb.

• Cabinet dimensions: 14⅞ inches wide × 22 inches deep × 33⅜ inches high with leveling legs unextended.
• Height adjustment shown in the manufacturer drawing: 33⅜–34⅜ inches.
• Door, handle and custom-panel details affect finished depth; consult the exact door drawing and panel template before fabricating cabinetry.
• The owner’s manual calls for 2 inches of rear clearance and ⅛ inch at each side, with no additional top clearance. Keep the front air inlet and outlet unobstructed, and do not recess the door behind the cabinet face.
• Level the machine, provide service access and use the manufacturer installation instructions and applicable local requirements for plumbing and electrical work.

Clean and descale the ice-making system, sanitize the bin and clean the condenser as instructed. The storage bin is for ice, not beverage bottles. Outdoor-approved models still require protection from freezing and the manufacturer's winterization procedure when appropriate.

Scotsman's consumer warranty lists one year of parts-and-labor coverage for SCC models, plus four additional years of compressor-parts coverage only. Coverage applies to the original purchaser-user in the United States, Canada and Puerto Rico, subject to proper installation, maintenance, registration and the full policy. Older floor-display units have different terms; review the linked warranty statement.

• Exact SCC50MB specifications and dimensional drawing
• SCC50 installation and owner’s manual
• SCC30/SCC50 installation quick-start guide
• Panel-ready custom-panel instructions
• Outdoor SCC50 and SCN60 brochure
• Consumer limited warranty
