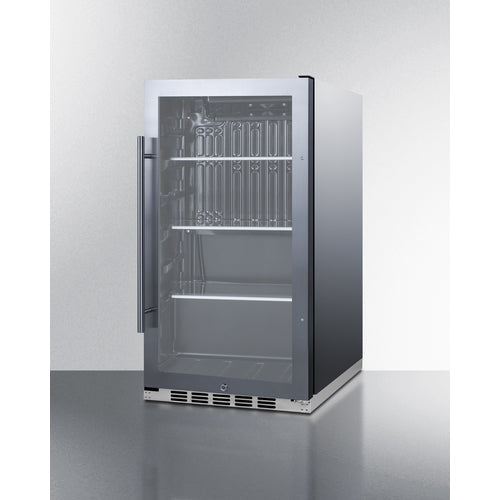

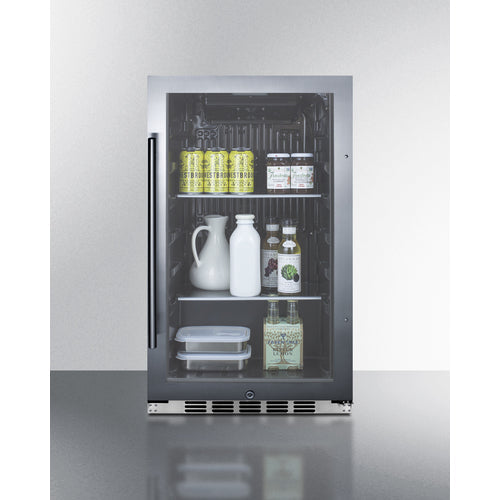

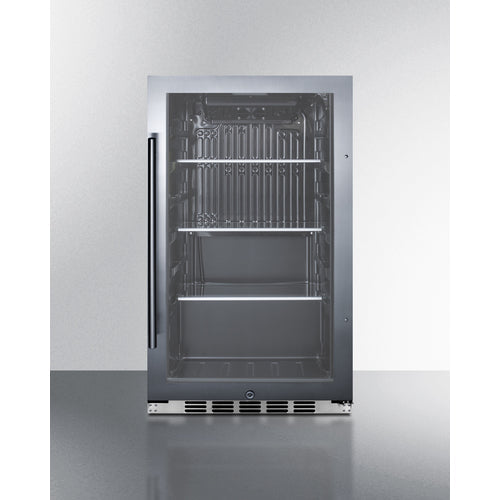

Keep drinks close at hand without giving up a deep section of your outdoor kitchen. The Summit SPR488BOSH34CSS pairs a shallow, 19-inch-wide footprint with a 304 stainless steel-wrapped cabinet, a black interior and a clear glass door. It can sit beneath a counter or stand on its own in a suitable sheltered location.
- Width: 19 inches. Cabinet depth: 17 inches. Height: 34 inches.
- Depth with handle: 18.63 inches. Depth with the door open 90°: 34¾ inches.
- Height-adjustable leveling legs.
- Interior: 16 inches wide × 12¾ inches deep × 29 inches high.
- Compressor step: 16 inches wide × 6¼ inches deep × 7 inches high.
Appliance measurements are not finished cutout dimensions. Allow space for ventilation, the plug, door movement and service access.
For built-in installation, leave at least ¼ inch at each side and above the unit, plus 2 inches behind it. Freestanding installation requires 5 inches at the back and sides. Keep the front grille clear; do not install behind a cabinet door.
Use a sheltered outdoor location protected from wind, rain and water spray, away from grills and other heat sources. The manual recommends ambient temperatures of 60–90°F; extreme temperatures can affect cooling. Connect to a dedicated, properly grounded 115 V, 60 Hz outlet on a 15-amp circuit. Do not use an extension cord.
This is a beverage cooler, not storage for perishable food or medicine. Follow the manual for leveling, cleaning and safe handling of its flammable refrigerant.
Summit lists one year of limited parts-and-labor coverage and five years of compressor-parts coverage. Compressor replacement labor is excluded. Geographic, installation and other warranty restrictions apply; see the full terms in the manual.
