SKU: TF-VH36-2-SP4

True Flame Spacer Bracket

$539.00

Shipping calculated at checkout

Space Size: 4 Inches
Vent Hood Size: 36 Inches

Available Now!

Position a compatible TrueFlame generation-2 vent hood farther from the wall with the matching spacer bracket. Choose both the nominal projection and hood width so the bracket matches the installation and mounting pattern.

Key Features

  • Provides a model-specific wall-to-hood stand-off.
  • Available in nominal 4-inch and 8-inch projection configurations.

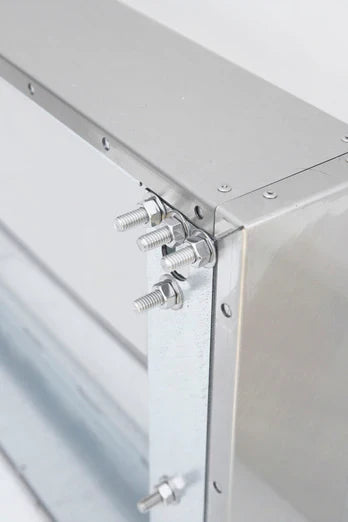

  • The hood attaches directly to the spacer as shown in the manufacturer guide.

Specifications

  • TF-VH36-2-SP4: 4 Inches projection for a 36 Inches generation-2 hood.
  • TF-VH42-2-SP4: 4 Inches projection for a 42 Inches generation-2 hood.
  • TF-VH48-2-SP4: 4 Inches projection for a 48 Inches generation-2 hood.
  • TF-VH60-2-SP4: 4 Inches projection for a 60 Inches generation-2 hood.
  • TF-VH36-2-SP8: 8 Inches projection for a 36 Inches generation-2 hood.
  • TF-VH42-2-SP8: 8 Inches projection for a 42 Inches generation-2 hood.
  • TF-VH48-2-SP8: 8 Inches projection for a 48 Inches generation-2 hood.
  • TF-VH60-2-SP8: 8 Inches projection for a 60 Inches generation-2 hood.

Dimensions

  • Projection choices: nominal 4 inches or 8 inches; hood-size choices: 36, 42, 48 or 60 inches.
  • Complete bracket outside dimensions and mounting-hole coordinates are not tabulated in the retained product page; verify the actual assembly before drilling.

Compatibility & Installation

  • A qualified installer must secure the spacer into multiple wall studs and provide sufficient structural support; metal framing requires the additional support described in the guide.
  • Attach the hood directly to the selected spacer. Do not stack a half-inch template with a spacer; use the model-specific mounting instructions.
  • Confirm the changed hood projection, duct alignment and any required separate duct-cover filler before completing the installation.

Manufacturer Resources

Manufacturer contact: TrueFlame / AMD Direct technical support, 800-966-8126 or techsupport@amddirect.com. Have the model number ready when confirming fit or installation requirements.
