SKU: TFG30

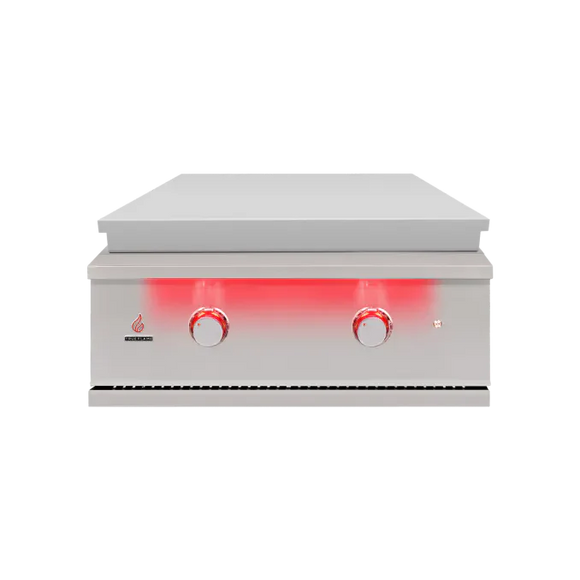

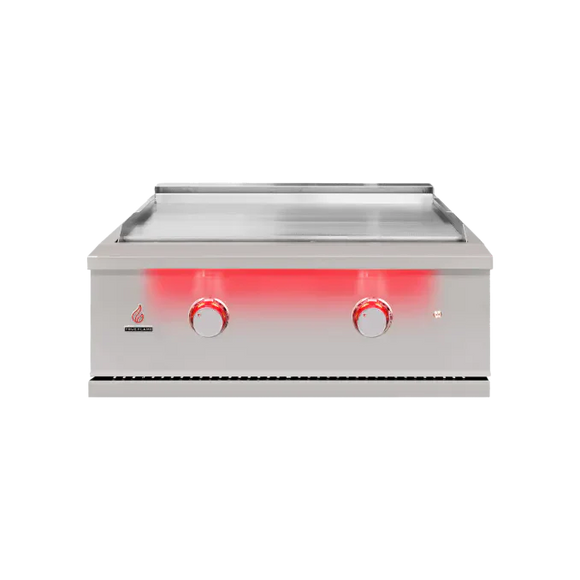

TrueFlame 30 Inch Griddle Grill

$2,399.00

Shipping calculated at checkout

Gas Type: Natural Gas

Available Now!

The TrueFlame 30-inch gas griddle brings a flat cooking surface to the outdoor kitchen for breakfast, vegetables, burgers and seared favorites. Two separately controlled burners and a heat-zone separator let you organize the surface around the meal.

Key Features

  • An 8 mm stainless steel cooking surface provides 495 sq. in. of cooking space.
  • Two 18,000 BTU stainless steel U-tube burners produce 36,000 BTU of combined input.
  • A heat-zone separator supports cooking at different settings across the two burner areas.
  • The 304 stainless steel lid is removable for cooking and covers the cooled surface between uses.
  • LED knob lighting and a full-width light bar illuminate the front panel.
  • Flame-thrower ignition and a large drip tray support everyday use.

Specifications

  • Natural gas model: TFG30; liquid propane model: TFG30L.
  • Construction: 304 stainless steel; manufacturer-listed weight: 120 lb.
  • Configuration: built-in outdoor gas griddle.
  • Compatible insulating liner: GL-TFGRID30, sold separately.

Dimensions

  • Manufacturer-listed overall dimensions: 30 in. W × 28 in. D × 12 in. H.
  • Manufacturer-listed bare-appliance cutout: 28.25 in. W × 21.875 in. D × 10.75 in. H.
  • Use the separate liner dimensions when an insulating liner is required; do not substitute the bare-appliance opening.

Compatibility & Installation

  • Outdoor use only. Remove the lid before lighting and never leave the operating appliance unattended.
  • Have a qualified installer verify the exact fuel model, regulated supply, enclosure ventilation and required clearances.
  • Maintain at least 18 inches from the sides and back to adjacent vertical combustible construction. Above the cooking surface, at least 1 inch of rear clearance to noncombustible construction is required; 1 inch at the sides is recommended.
  • An exhaust hood is required under any overhead construction. Follow the complete griddle manual and the selected liner instructions; never operate beneath unprotected combustible overhead construction.
  • Check the actual appliance and the manufacturer drawing before fabrication.

Manufacturer Resources

Manufacturer contact: TrueFlame / AMD Direct technical support, 800-966-8126 or techsupport@amddirect.com. Have the model number ready when confirming fit or installation requirements.
