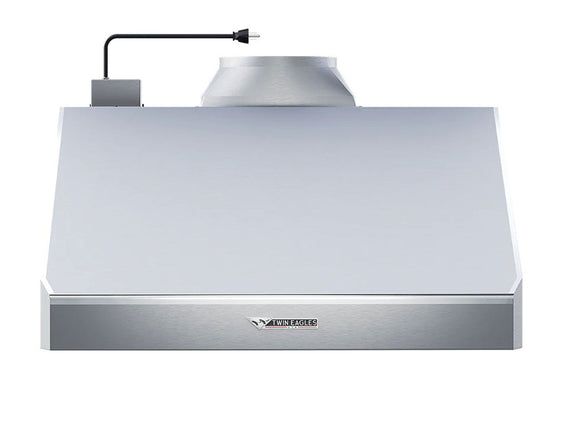

Help manage smoke, steam and cooking odors with the Twin Eagles TEVH36-C ventilation hood. Stainless steel baffle filters and adjustable lighting support a practical, coordinated outdoor cooking area.
Key Features
- Removable, dishwasher-safe stainless steel baffle filters.
- Three-speed ventilator control.
- Two halogen lamps with dual settings.
- Welded construction with polished accents.
Specifications
- Manufacturer: Twin Eagles.
- Model: TEVH36-C.
- Electrical requirement: 120V, 60Hz, 5.4A; dedicated 15A circuit.
Dimensions
- Hood body: 36 inches W × 30 inches D × 18 inches H.
- Mounting height: at least 36 inches above the cooking surface, subject to the appliance instructions.
Compatibility & Installation
- Use only the TEVI-120I integral blower approved in the installation manual; blower sold separately.
- Soffit or duct cover is not included.
- Have the installer verify ducting, mounting support, weather protection and all clearances using the full manual.
- Use metal ductwork at least 10 inches in diameter, vented to the outdoors; this is not a recirculating hood.
- Connect to a GFCI-protected branch circuit as required by the installation manual.
- The manufacturer does not recommend this hood over solid-fuel-fired appliances.
Manufacturer Resources
Contact Twin Eagles support at 800-789-2206 or st.service@dometic.com for help confirming the model, fit or installation requirements.
