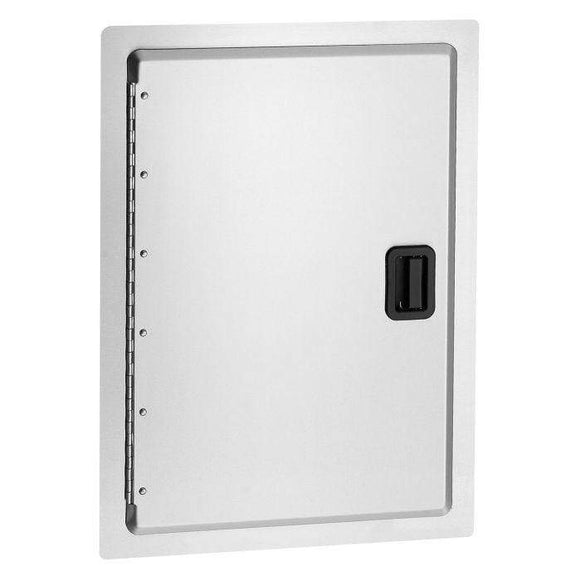

Create straightforward service or storage access in a taller island bay. The Fire Magic 23920-S uses a vertical, outside-mounted Legacy frame and can be flipped for left- or right-hinge operation during installation.
Key Features
- Vertical single-door access for storage, plumbing, or service space
- Reversible hinge supports left- or right-hand installation
- 304 stainless steel construction
- Outside-mounted Legacy design with angled edges
- Slam latch provides secure closure
- Economical 2-Series format for straightforward island builds
Specifications
- Model / SKU: 23920-S
- Series: Legacy 2-Series
- Orientation: Vertical
- Mounting: Outside mount
- Cutout: 20 1/2 in. H x 14 1/2 in. W
- Hinge: Reversible
- Material: 304 stainless steel
Planning note: Confirm hinge direction, 1 3/4-inch Legacy frame overlap, swing clearance, finished opening, and current Fire Magic drawing before fabrication. This access door does not create sealed storage; plan island ventilation and drainage separately.
