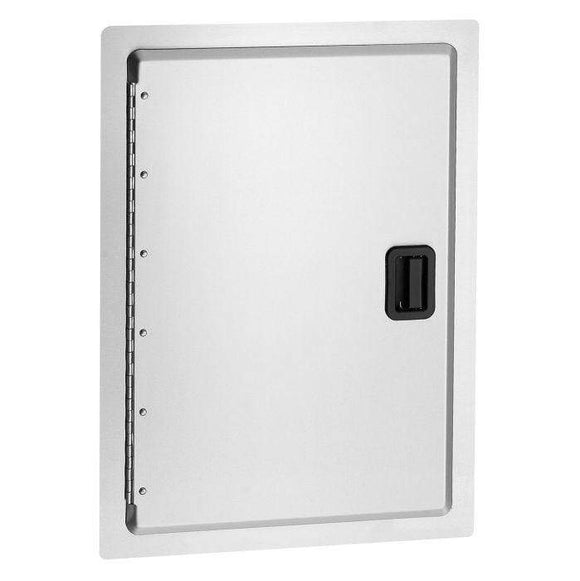

Open a taller, wider service or storage bay while retaining the straightforward Legacy outside-mount format. The Fire Magic 23924-S can be flipped for left- or right-hinge operation to match the island layout.
Key Features
- Tall vertical single-door access for storage, plumbing, or service space
- Reversible hinge supports left- or right-hand installation
- 304 stainless steel construction
- Outside-mounted Legacy design with angled edges
- Slam latch provides secure closure
- Economical 2-Series format for straightforward island builds
Specifications
- Model / SKU: 23924-S
- Series: Legacy 2-Series
- Orientation: Vertical
- Mounting: Outside mount
- Cutout: 24 1/2 in. H x 17 1/2 in. W
- Hinge: Reversible
- Material: 304 stainless steel
Planning note: Confirm hinge direction, 1 3/4-inch Legacy frame overlap, swing clearance, finished opening, and current Fire Magic drawing before fabrication. This access door does not create sealed storage; plan island ventilation and drainage separately.
