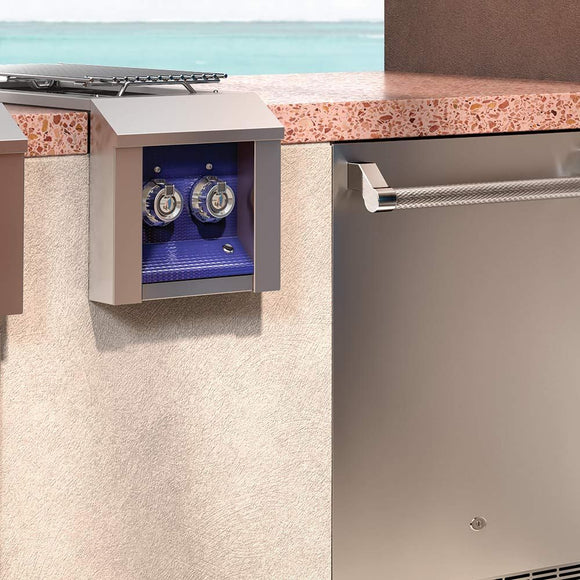

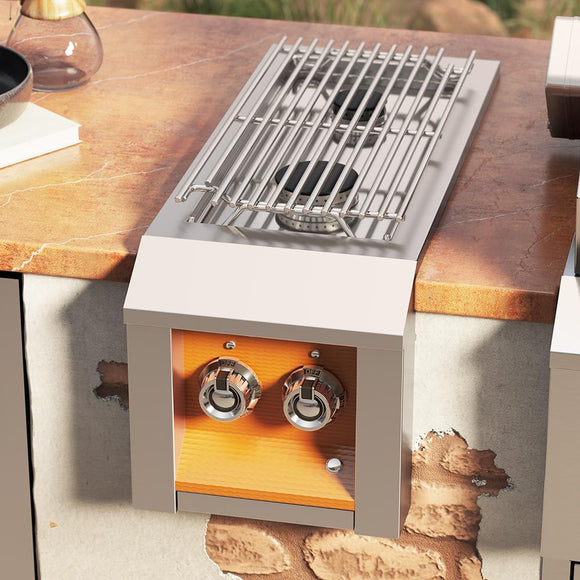

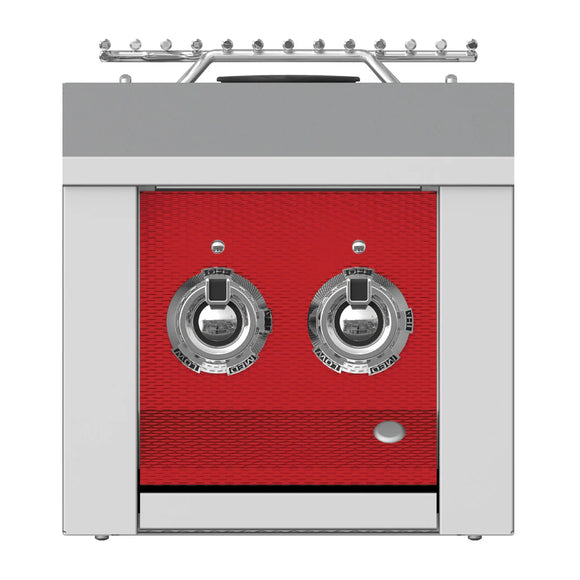

The Aspire by Hestan AEB122 12-inch built-in double side burner gives an outdoor kitchen two independent cooking zones for sauces, stocks, and side dishes. A 20,000 Btu/hour front burner pairs with a 10,000 Btu/hour rear burner, while sealed burner bowls, a substantial stainless-steel grate, and electronic re-ignition support confident everyday cooking.
Key Features
- 20,000 Btu/hour front burner and 10,000 Btu/hour rear burner

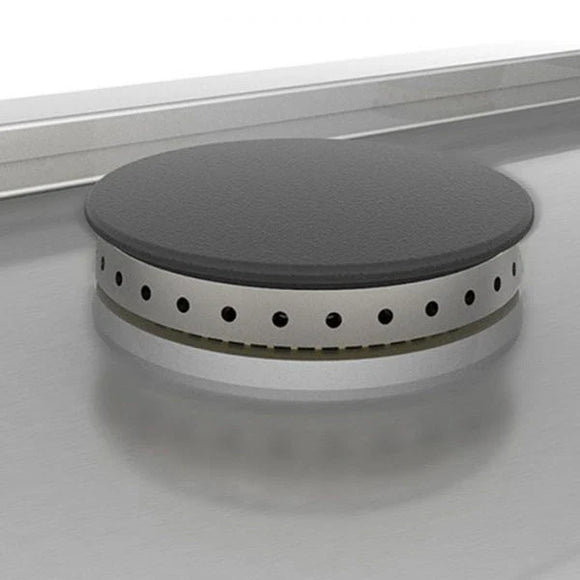

- Two sealed burners with stainless-steel sealed burner bowls

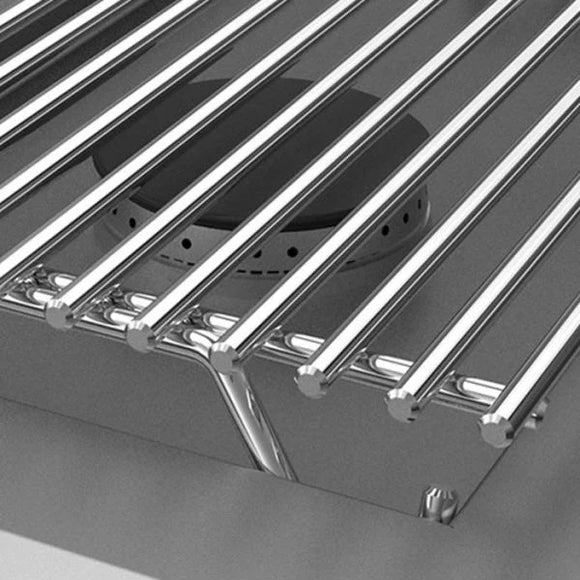

- 304 high-polished stainless-steel 5/16-inch rod grate
- Electronic spark ignition with re-ignition capability
- Touch-activated LED lighting on the front control panel
- 304 heavy-gauge welded body construction

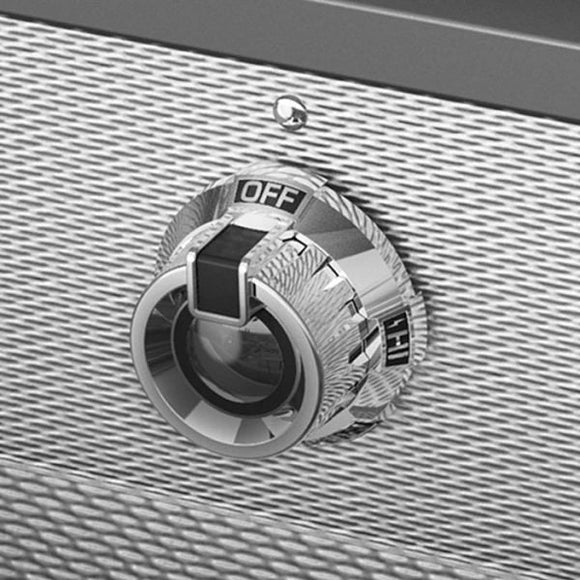

- Stainless-steel top cover and Marquise Accented control panel

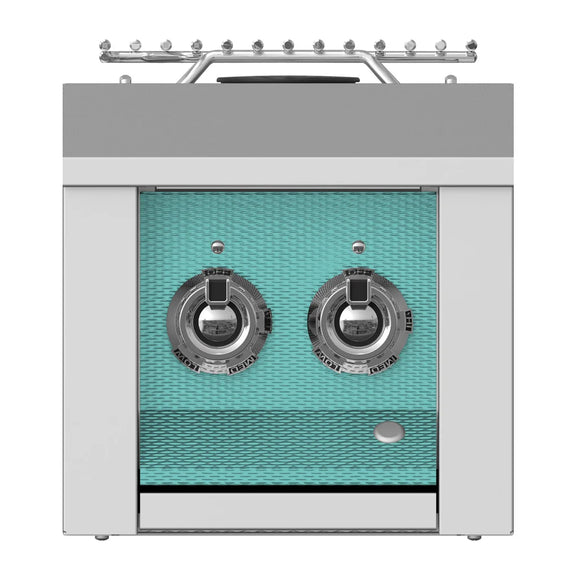

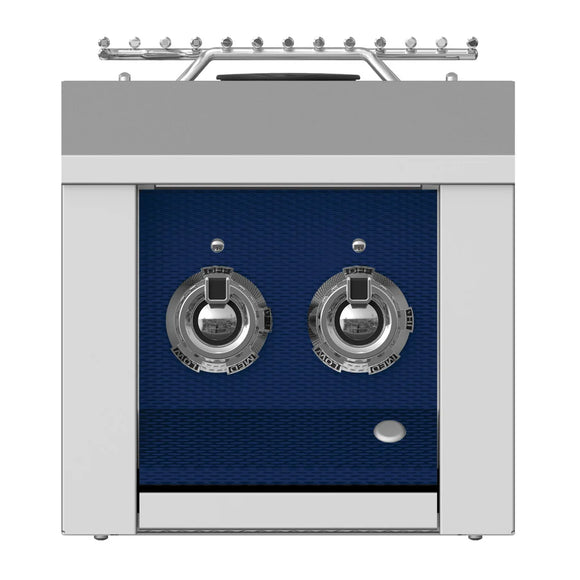

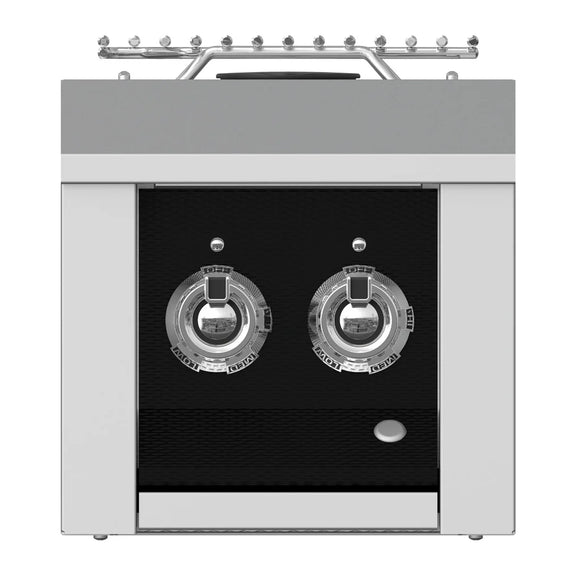

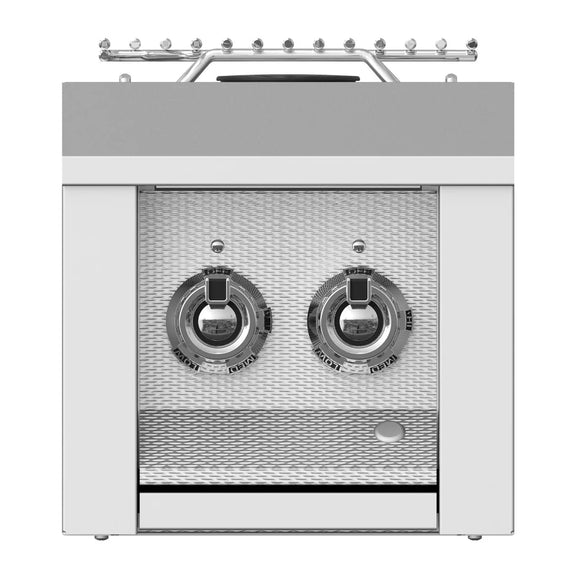

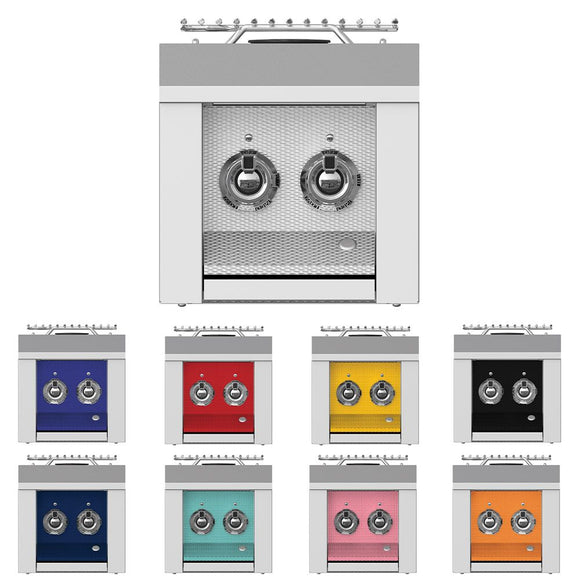

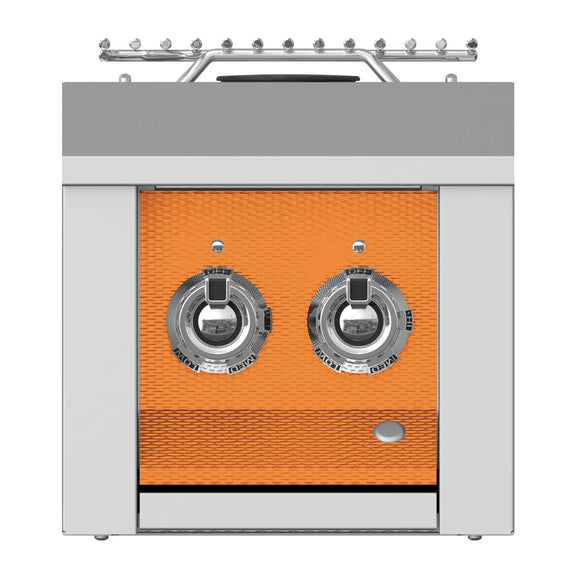

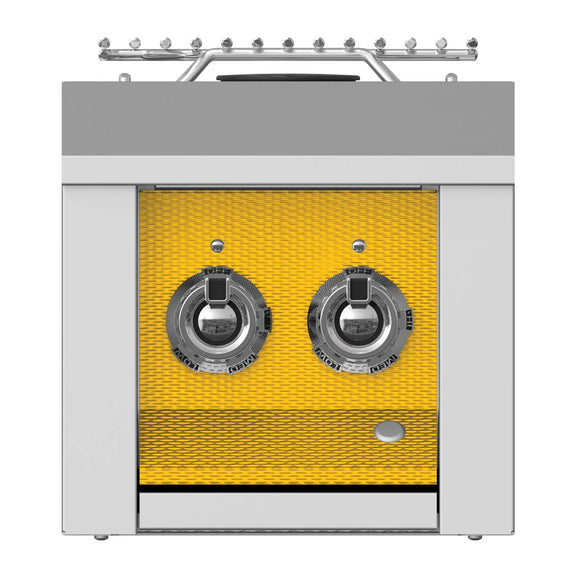

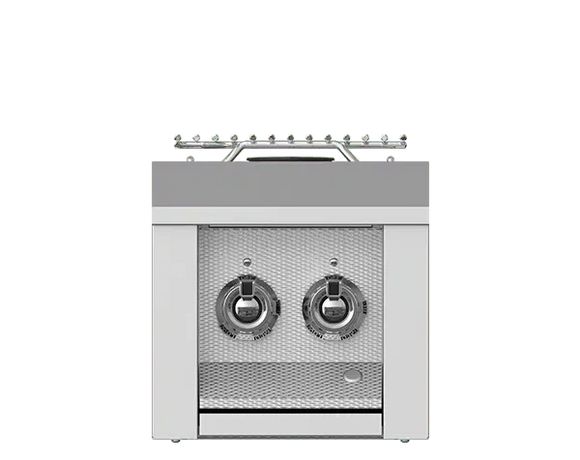

- Available in Steeletto and eight Aspire signature color finishes
Specifications
- Manufacturer: Hestan Commercial Corporation
- Brand: Aspire by Hestan
- Model: AEB122
- Configuration: Built-in double side burner
- Total Burner Output: 30,000 Btu/hour
- Fuel Options: Natural gas or liquid propane; select the matching factory variant
- Gas Connection: 1/2-inch NPT
- Minimum Gas Supply: 7 in. water column for natural gas; 11 in. water column for liquid propane
- Manifold Pressure: 4 in. water column for natural gas; 10 in. water column for liquid propane
- Electrical Requirement: 120V, 60Hz, 1 amp
- Approved Use: Outdoor only
Dimensions
- Nominal Product Width: 12 in.
- Cutout: 11 in. W x 24 1/4 in. D x 11 1/2 in. H
- Maximum Countertop Overhang: 1 in.
- Countertop Notch: 9/16 in.
- Utility Opening Shown: 3 1/2 in. x 5 1/2 in. for gas and electrical
Installation/Compatibility Note
Order the fuel-specific model that matches the site's regulated gas supply and verify the finished opening before countertop fabrication. For connection to a standard 20 lb. LP cylinder, Hestan requires the separately sold AGCKLPT regulator/hose and tank-retention kit. Provide an accessible gas shutoff and a properly grounded, GFCI-protected 120V outlet. A built-in island requires at least three 10-square-inch ventilation openings—one on each side and one at the rear. Install outdoors only and follow the current Hestan manual, local codes, and all specified combustible and noncombustible clearances; gas and electrical connections should be completed by qualified professionals.
