SKU: AEB121-NG

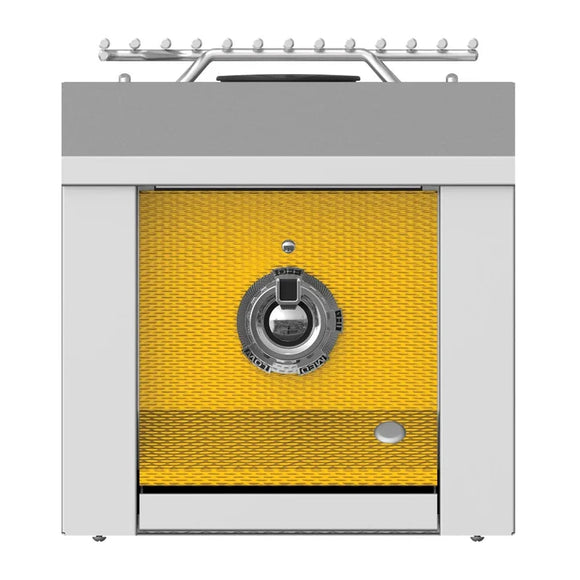

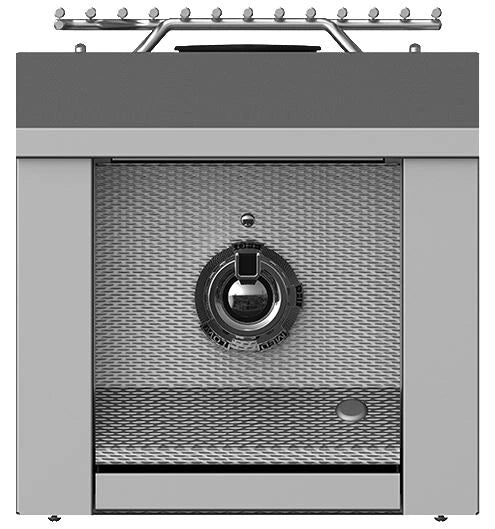

Aspire by Hestan 12 inch Single Side Burner

$1,099.00

Shipping calculated at checkout

Gas Type: Natural Gas
Color: Steeletto
Aspire by Hestan 12 inch Single Side Burner
Aspire by Hestan 12 Inch Single Side Burner
Aspire by Hestan 12 Inch Single Side Burner
Aspire by Hestan 12 Inch Single Side Burner
Aspire by Hestan 12 Inch Single Side Burner
Aspire by Hestan 12 Inch Single Side Burner
Aspire by Hestan 12 Inch Single Side Burner
Aspire by Hestan 12 Inch Single Side Burner
Aspire by Hestan 12 Inch Single Side Burner

Available Now!

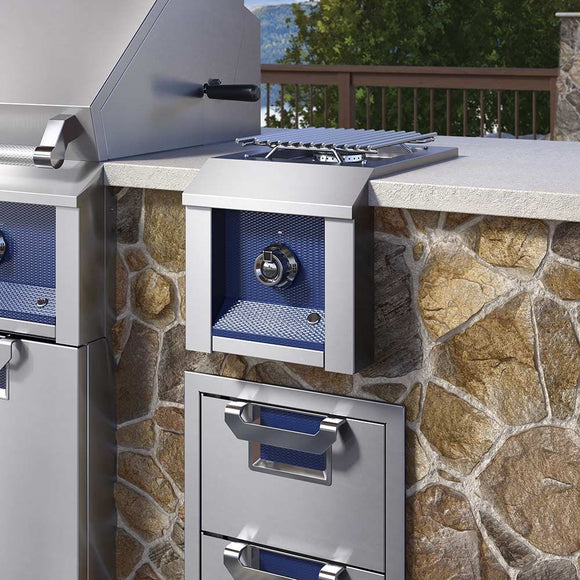

The Aspire by Hestan AEB121 12-inch built-in single side burner adds a dedicated cooking station for sauces, sides, and stockpots without taking space from the grill. Its sealed burner, stainless-steel bowl, substantial rod grate, and automatic re-ignition system are designed for dependable outdoor-kitchen use, while the illuminated control panel keeps operation clear after sunset.

Key Features

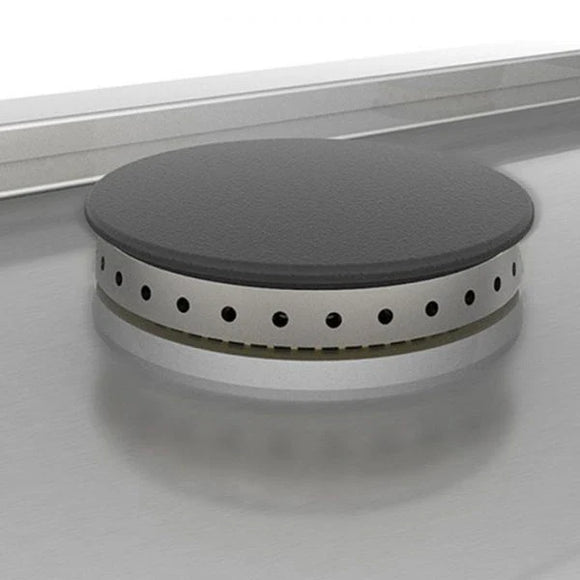

  • Single sealed burner rated at 20,000 Btu/hour

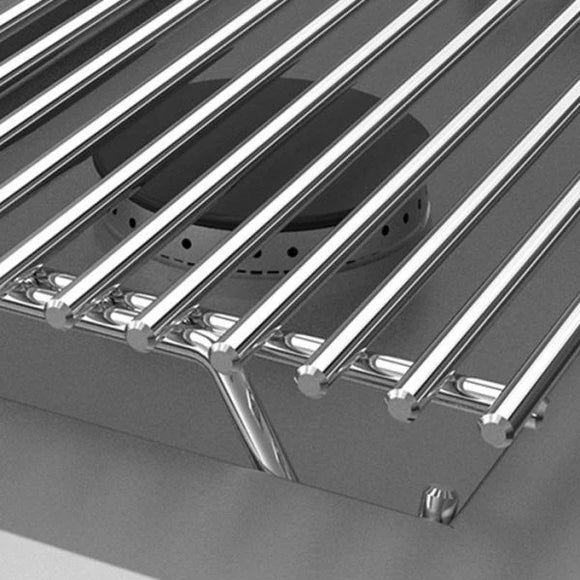

  • 304 high-polished stainless-steel 5/16-inch rod grate
  • Stainless-steel sealed burner bowl
  • Electronic spark ignition with re-ignition capability
  • Touch-activated LED lighting on the front control panel
  • 304 heavy-gauge welded body construction

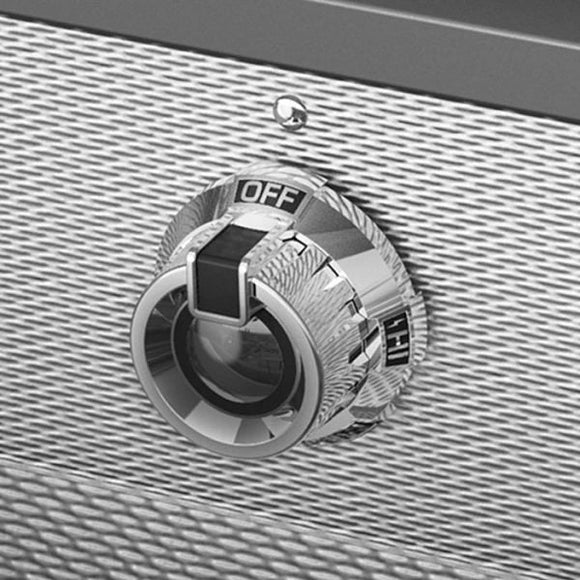

  • Stainless-steel top cover and Marquise Accented control panel

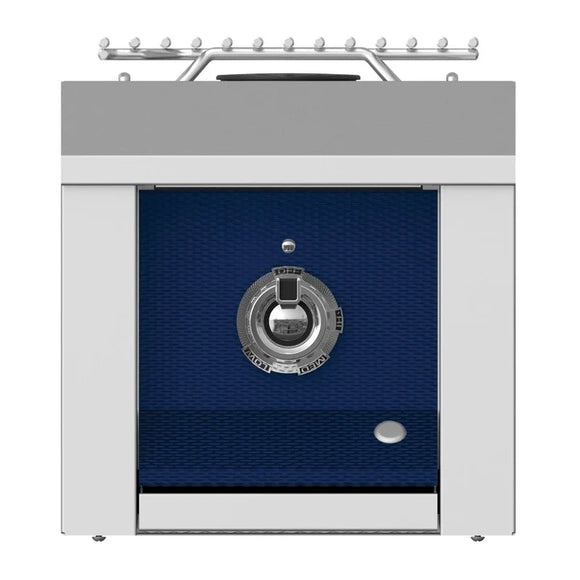

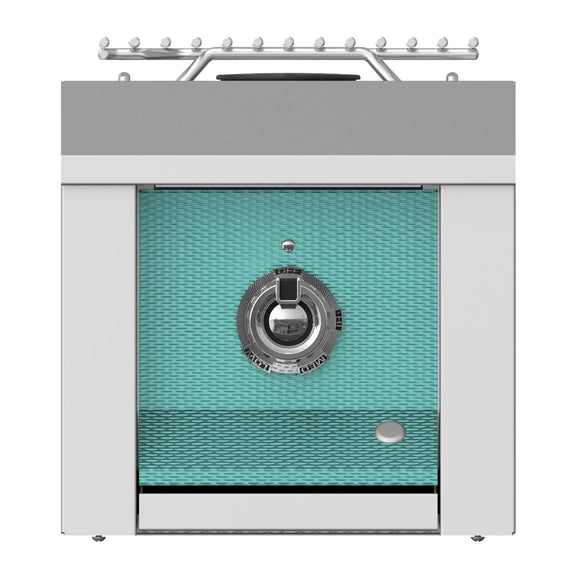

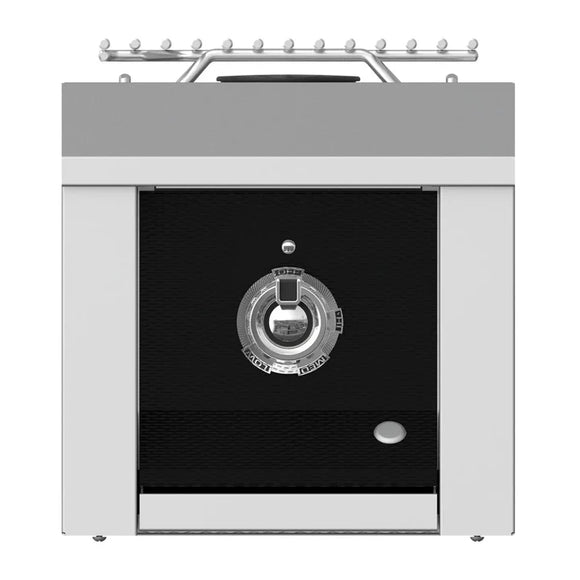

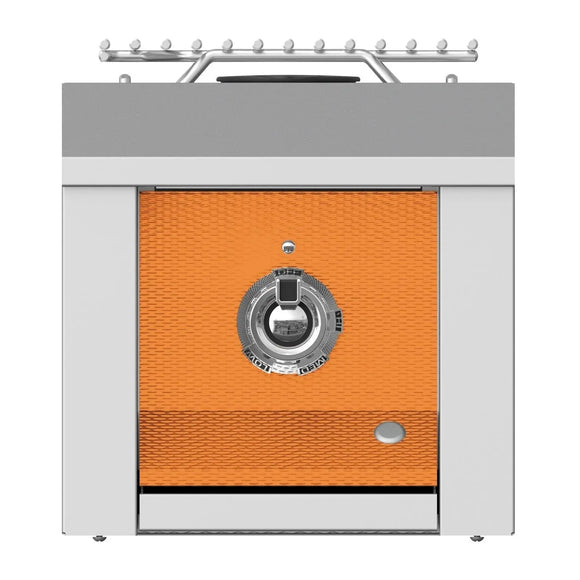

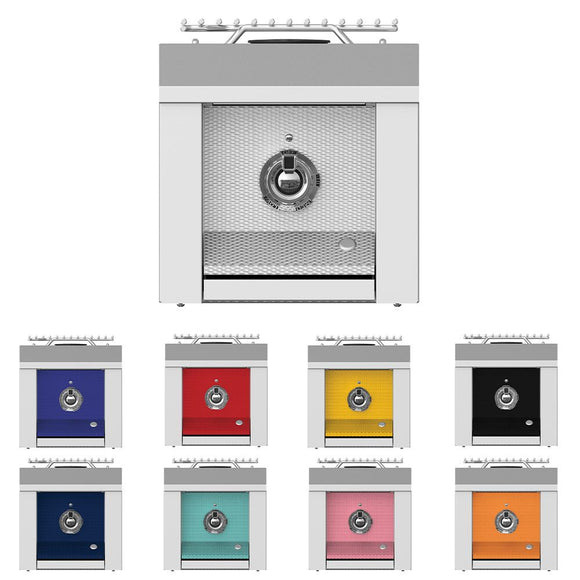

  • Available in Steeletto and eight Aspire signature color finishes

Specifications

  • Manufacturer: Hestan Commercial Corporation
  • Brand: Aspire by Hestan
  • Model: AEB121
  • Configuration: Built-in single side burner
  • Fuel Options: Natural gas or liquid propane; select the matching factory variant
  • Gas Connection: 1/2-inch NPT
  • Minimum Gas Supply: 7 in. water column for natural gas; 11 in. water column for liquid propane
  • Manifold Pressure: 4 in. water column for natural gas; 10 in. water column for liquid propane
  • Electrical Requirement: 120V, 60Hz, 1 amp
  • Approved Use: Outdoor only

Dimensions

  • Nominal Product Width: 12 in.
  • Cutout: 11 in. W x 13 7/8 in. D x 11 1/2 in. H
  • Maximum Countertop Overhang: 1 in.
  • Countertop Notch: 9/16 in.
  • Utility Opening Shown: 3 1/2 in. x 5 1/2 in. for gas and electrical

Installation/Compatibility Note

Order the fuel-specific model that matches the site's regulated gas supply and verify the finished opening before countertop fabrication. For connection to a standard 20 lb. LP cylinder, Hestan requires the separately sold AGCKLPT regulator/hose and tank-retention kit. Provide an accessible gas shutoff and a properly grounded, GFCI-protected 120V outlet. A built-in island requires at least three 10-square-inch ventilation openings—one on each side and one at the rear. Install outdoors only and follow the current Hestan manual, local codes, and all specified combustible and noncombustible clearances; gas and electrical connections should be completed by qualified professionals.
